6 - 3
Removal and Replacement (cont’d)
Removal (cont’d)

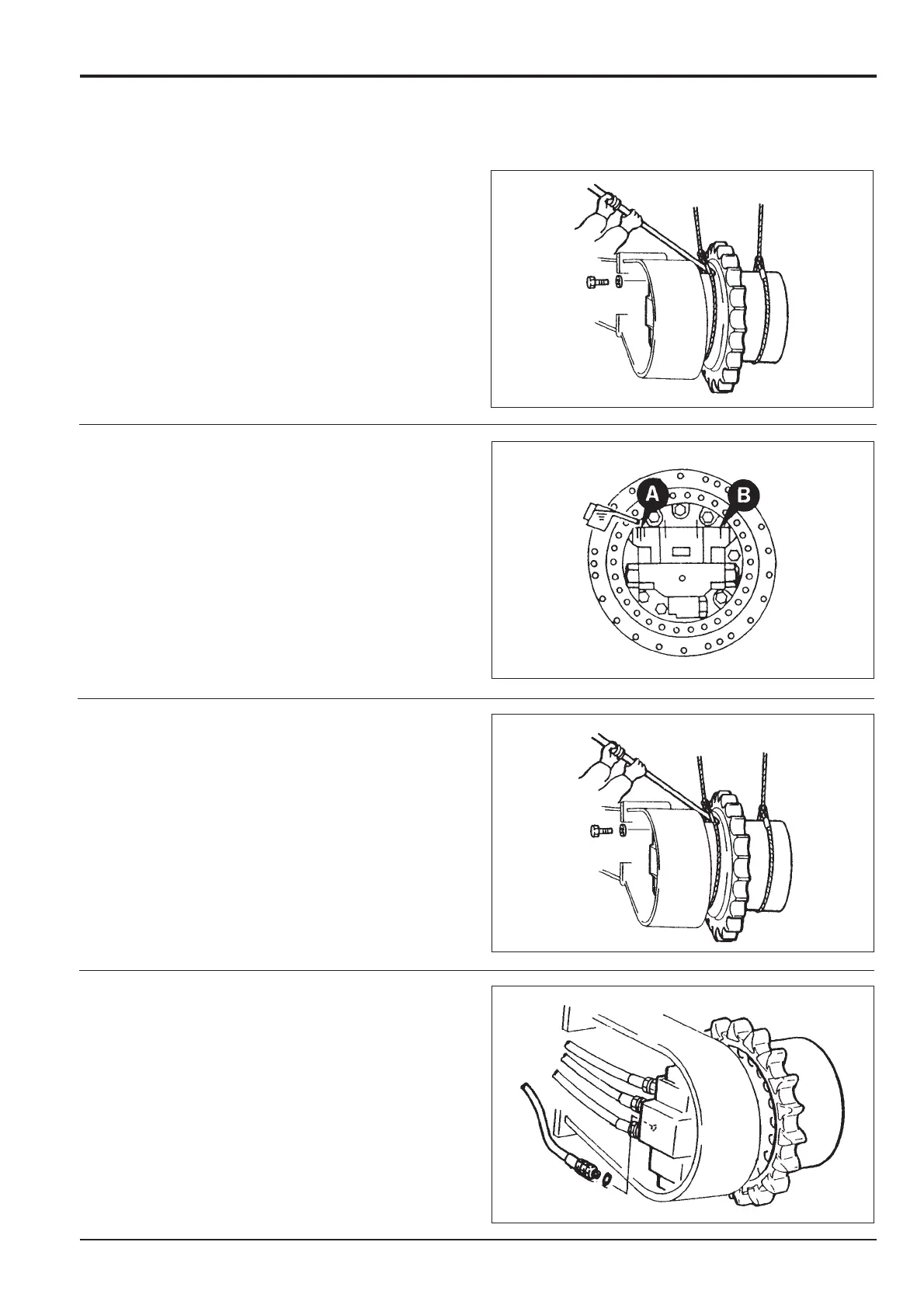

8 Support the motor so that the cables are in tension,
then remove the motor installation bolts.
Replacement
1 Before fitting, clean the assembly and bleed air out as
follows:
Turn the assembly so that the hydraulic oil ports are
facing upwards.
Remove plugs from ports A and B. Fill the motor
through port A with the specified hydraulic oil. Fit
plugs to ports A and B.
2 Lift the assembly and position it on the undercarriage.
Install the bolts and washers, using Loctite 262 on
the bolt threads. Tighten the bolts in a diagonal
sequence.
Torque Settings
267-312 Nm (196-229 lbf ft)
3 Remove the plugs and connect the motor hoses.
Section F Transmission
9803/6410
Section F
6 - 3
Issue 1
Traction Motor/Reduction Gear
