Dismantling (cont’d)

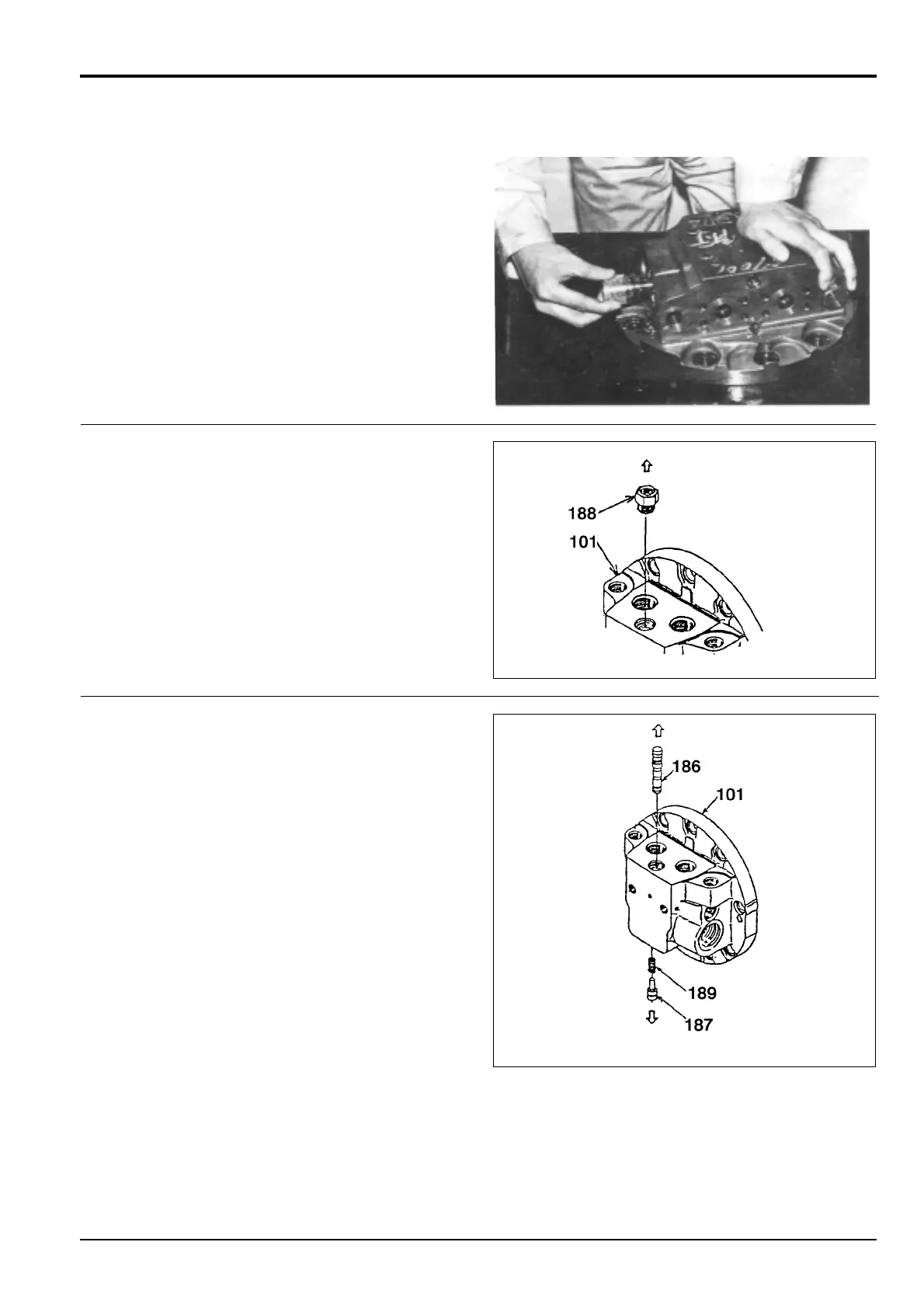

8 Remove two springs 130 and two valves 127 from the
rear flange 101. Remove ‘O’-rings 156 from plugs 126.
Take care to avoid damaging the seat of the valve or its
mating seat in the flange.
9 Unscrew adaptor 188 from the rear flange. Remove and
discard ‘O’-ring 138.
10 Remove spool 186, spring 189 and plunger 187. If
necessary, use an M5 socket head bolt in the threaded
hole of plunger 187 to assist removal.
Remove and discard ‘O’-ring 190 from plunger 187.
8 - 3
Section F Transmission
9803/6410
Section F
8 - 3
Issue 1
Traction Motor
JS00310
JS00320
To Next Page
