3 - 2

Dismantling (cont’d)

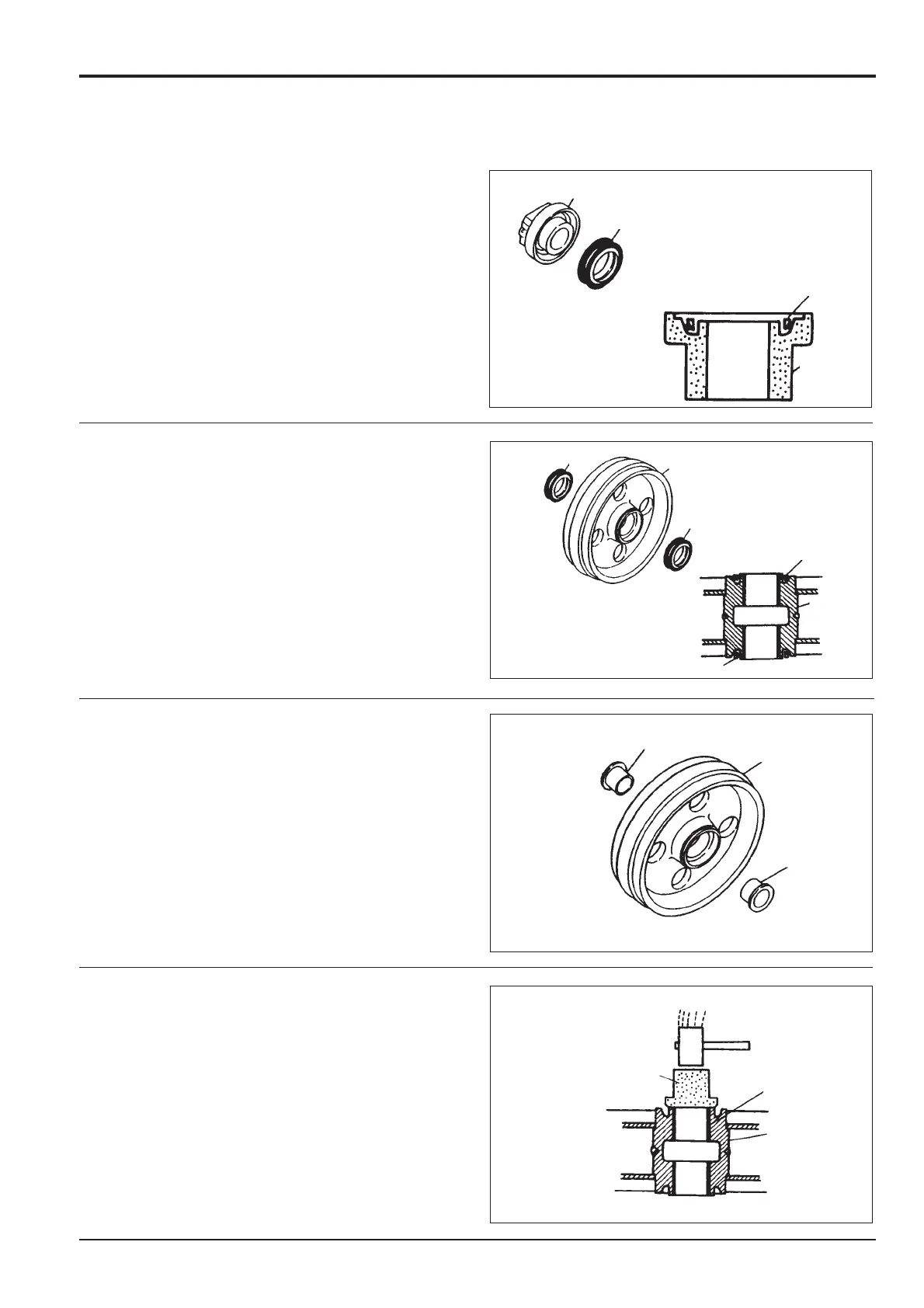

5 Remove floating seal J from each hub C using a pry

bar.

6 Remove floating seal J from each side of idler wheel G

using a pry bar.

7 If badly worn or damaged, remove the bushes K from

idler wheel G using a press or puller.

Protect parts from moisture and dust if left dismantled

for some time.

Assembly

1 Clean all parts thoroughly in a suitable solvent. Dry

shaft and bore of idler wheel using compressed air in a

place free of dust and moisture.

Check components for wear as detailed under Wear

Limits. Polish out scratches and roughness using an oil

stone. Then apply a coat of engine oil to all parts.

Carefully drive the new bushes K into the idler wheel G,

using a suitable dolly L.

Section J Track and Running Gear

9803/6410

Section J

3 - 2

Issue 1

Idler Wheel
