Assembly (cont’d)

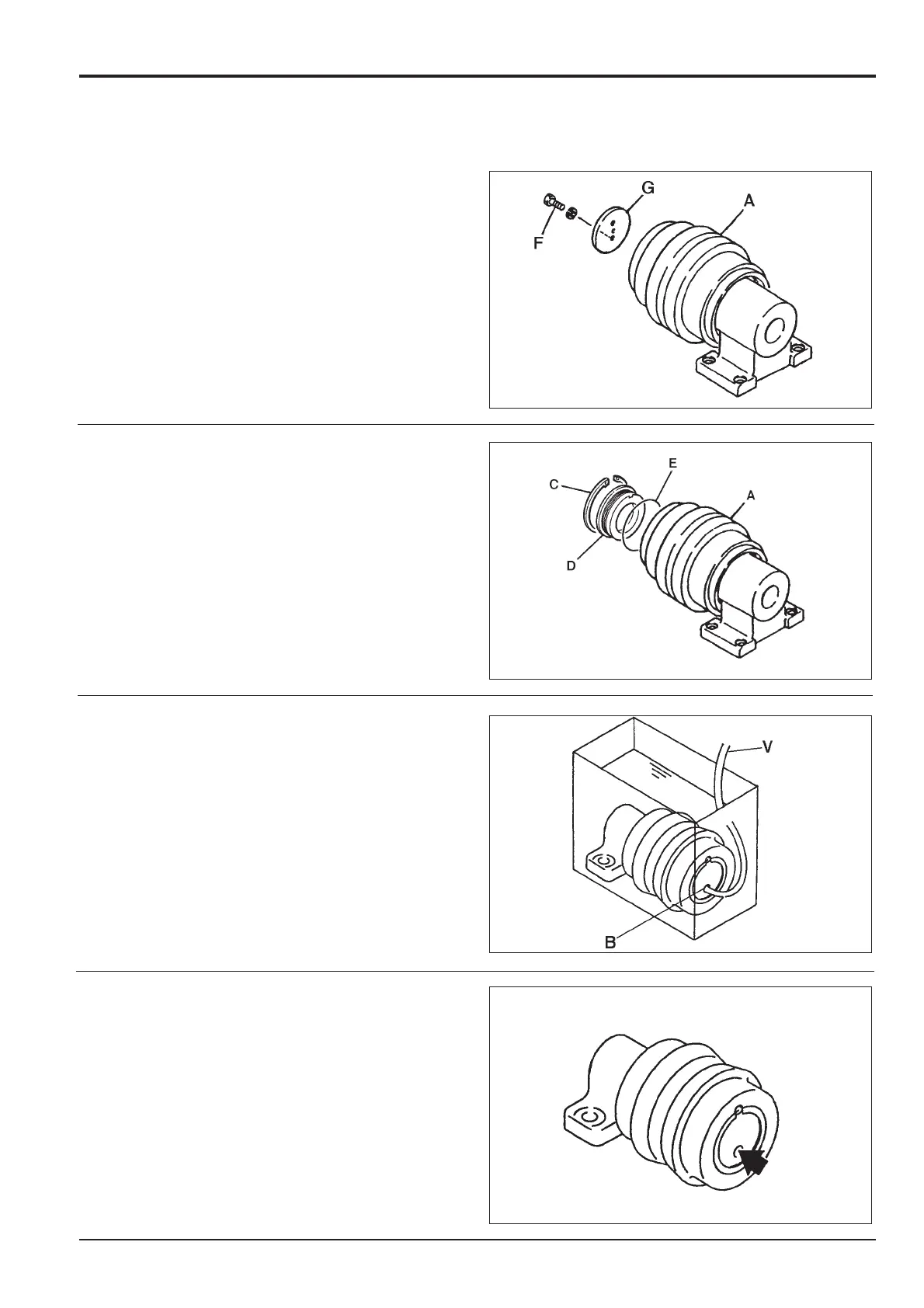

6 Apply grease to the inside face of thrust plate G and
install it on the shaft using bolts F.
7 Apply grease to a new 'O'-ring E and install it onto
cover D. Install the cover D to the roller A. Retain with
circlip C.
8 Remove plug B and connect compressed air pipe V to
the port. Using extreme care to prevent water entering
the assembly, lower it into a tank of water.
Apply air pressure of 1.9 bar (28 lbf/in
2
) and check that
there are no bubbles leaking from the unit. If leakage
occurs dismantle and re-assemble, taking extra care
when fitting new seals.
9 Remove the assembly from the tank. Dry with
compressed air. Fill with oil (see Fluids and Lubricants,
Section 3) and install plug B using an appropriate pipe
thread sealant.
