jcb JS160 User Manual

4 - 5
Attachments (continued)

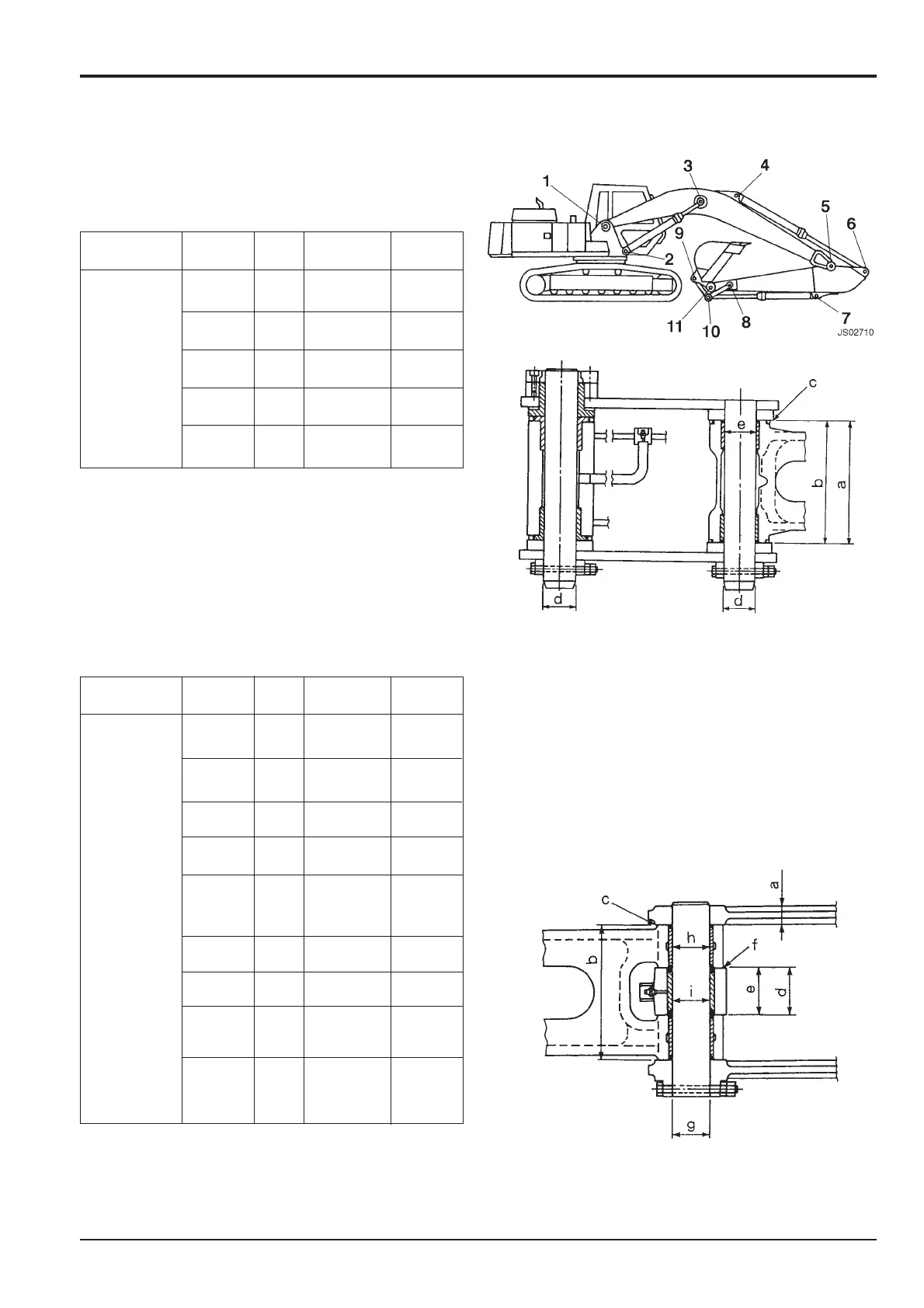

Bucket and Bucket Link Installation JS130
Bucket Link and Bucket Ram Installation
JS130
Section B Body & Framework
9803/6410
Section B
4 - 5
Issue 1
Maintenance Specifications
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
9. Bucket and Bucket a 255 261
bucket link
installation
Bucket link b 254 252
Clearance c 1.0-3.5
Pin d Ø65 Ø64
Bushing e Ø65 Ø66.5
(bucket link)
Shim for
adjustment
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
10. Bucket link Dipper Link a 37 34
and bucket
ram
installation
Bucket link b 254 252
Clearance c 1.0-1.5
Bucket link d 99 101
Bucket
ram e 98 96
(eye end)
Clearance f 1.0-2.0
Pin g Ø65 Ø64
Bushing h Ø65 Ø66.5
(Bucket link)
Bushing
(Bucket i Ø65 Ø66.5
ram)
Shim for
adjustment
Shim for
adjustment
