5 - 1
Attachments (continued)

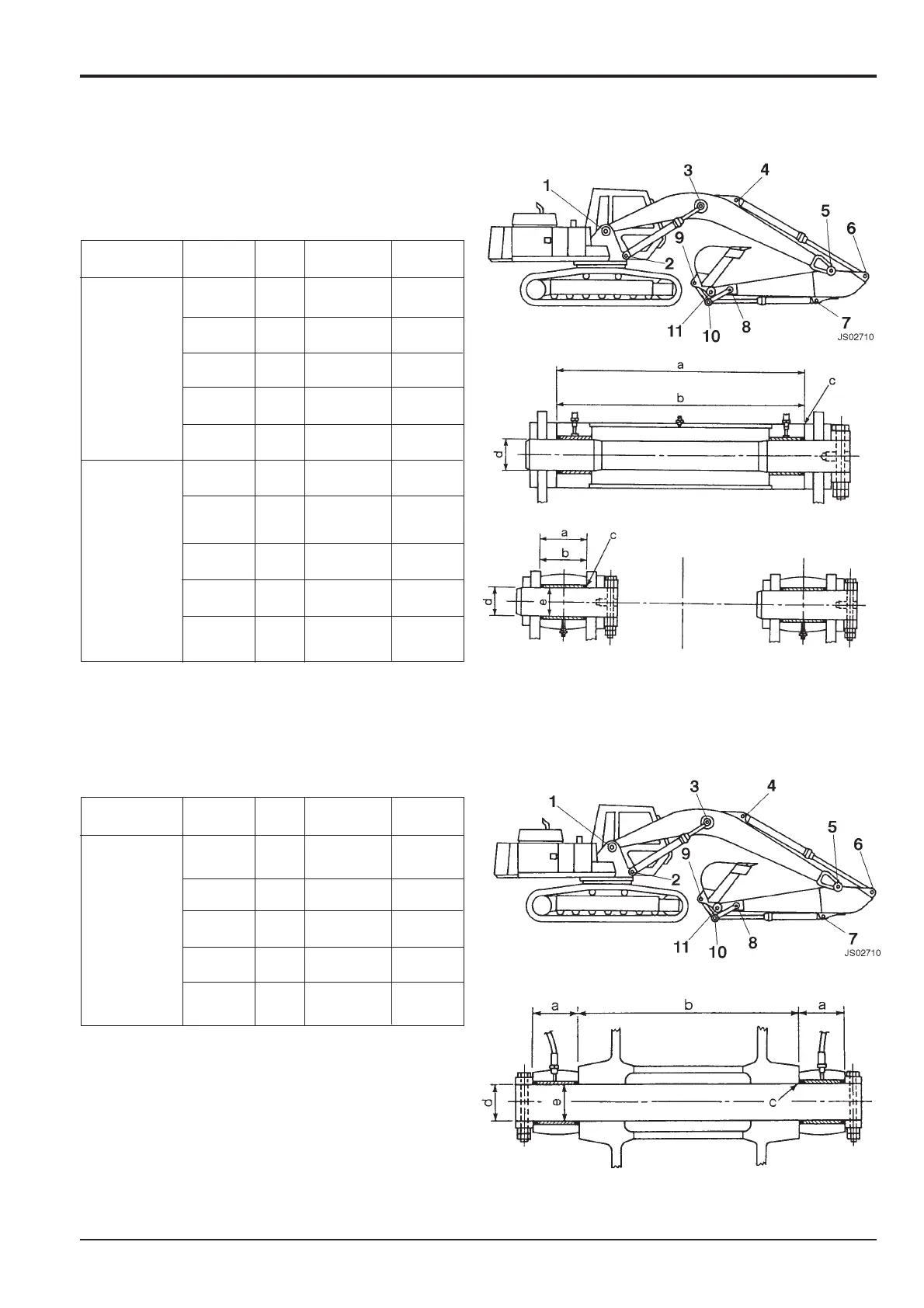

Boom and Slew Frame Installation JS160
Boom Ram Installation JS160
Section B Body & Framework
9803/6410
Section B
5 - 1
Issue 1
Maintenance Specifications
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
1. Boom and Slew frame a 636 646
slew frame
installation
Boom b 635 633
Clearance c 1.0-3.5
Pin d Ø80 Ø79
Bushing (boom) e Ø80 Ø81.5
2. Boom ram Slew frame a 111 117
and slew
frame
Boom ram b 110 108
installation
(dump end)
Clearance c 1.0-2.5
Pin d Ø70 Ø69
Bushing e Ø70 Ø71.5
(boom ram)
Shim for
adjustment
Shim for
adjustment
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
3. Boom and
Boom ram a 100 98
boom ram (dump end)
installation
Boom b 474 468
Clearance c 1.0-2.5
Pin d Ø80 Ø79
Bushing e Ø80 Ø81.5
(boom ram)
Shim for
adjustment
