jcb JS160 User Manual

5 - 5
Attachments (continued)

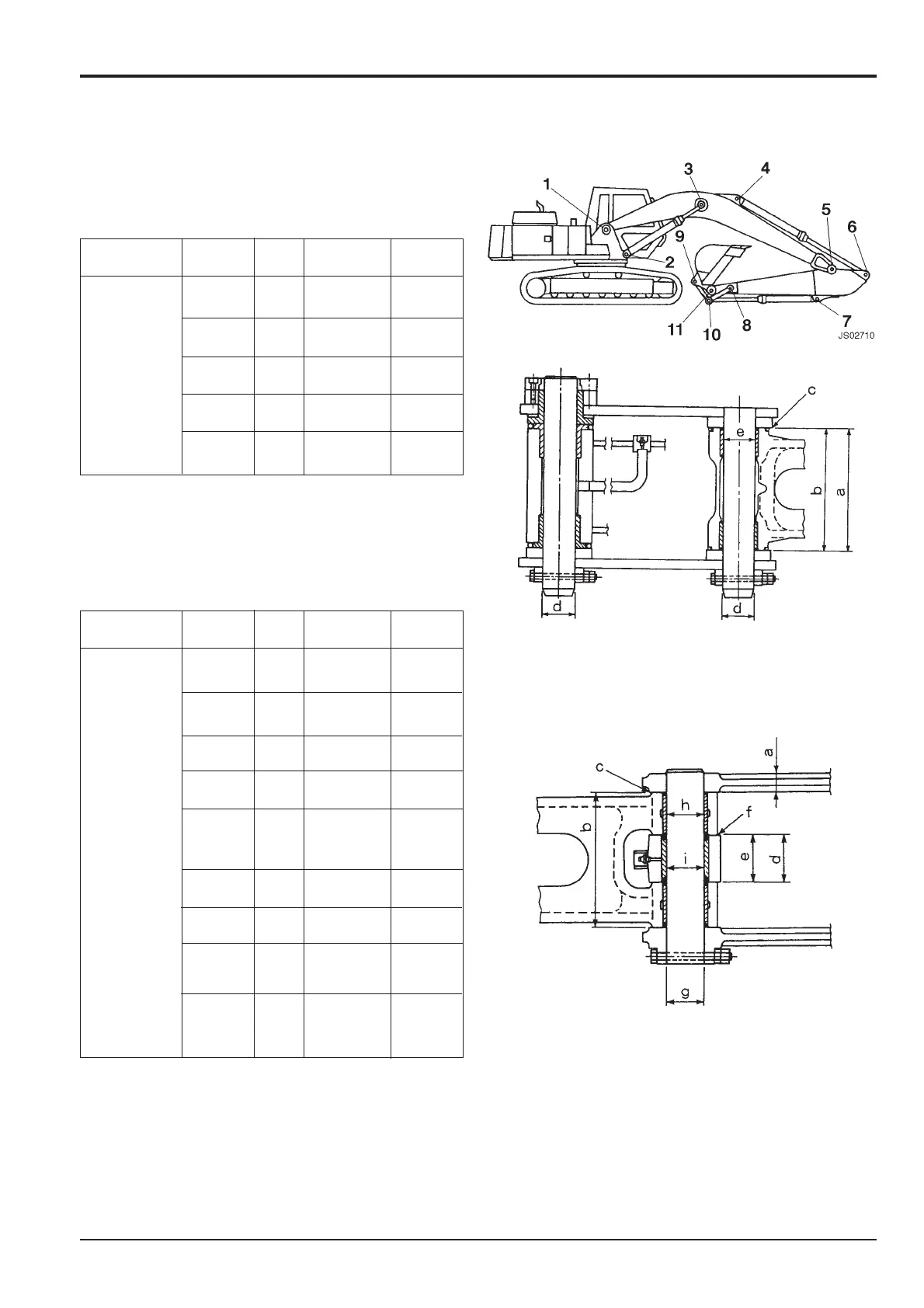

Bucket and Bucket Link Installation JS160
Bucket Link and Bucket Ram Installation
JS160
Section B Body & Framework
9803/6410
Section B
5 - 5
Issue 1
Maintenance Specifications
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
9. Bucket and Bucket a 301 307
bucket link
installation
Bucket link b 300 298
Clearance c 1.0-3.5
Pin d Ø80 Ø79
Bushing e Ø80 Ø81.5
(bucket link)
Shim for
adjustment
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
10. Bucket link Dipper Link a 37 34
and bucket
ram
installation
Bucket link b 260 258
Clearance c 1.0-1.5
Bucket link d 91 93
Bucket
ram e 90 88
(eye end)
Clearance f 1.0-2.0
Pin g Ø70 Ø69
Bushing h Ø70 Ø71.5
(Bucket link)
Bushing
(Bucket i Ø70 Ø71.5
ram)
Shim for
adjustment
Shim for
adjustment
