About the Product
Description
7 9831/1450-1 7
During the operation of the machine, keep all persons out of the danger zone. Persons in the danger zone
could be injured.
Before you do a maintenance task, make the product safe.
Main Component Locations

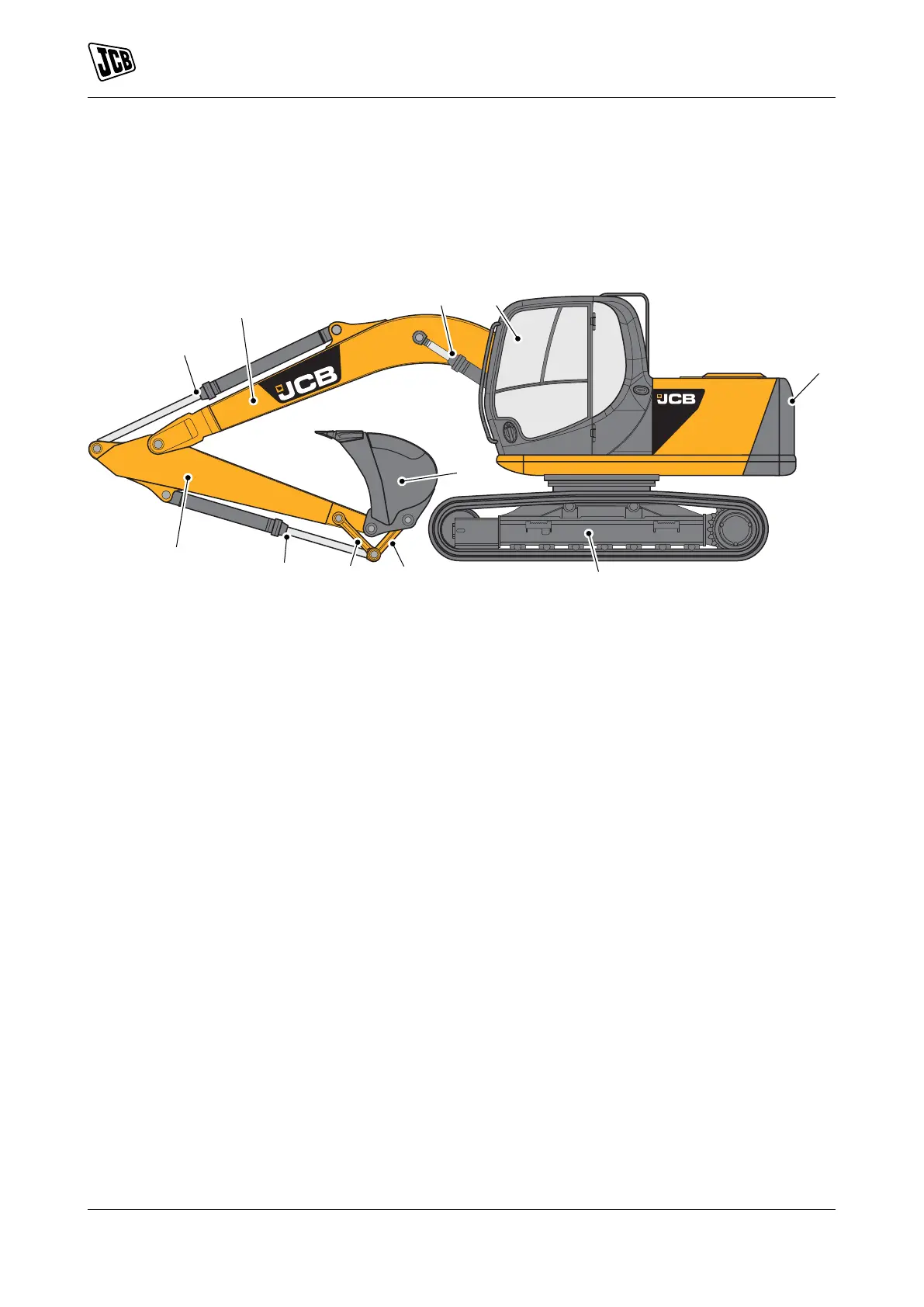

Figure 3.
A Bucket B Bucket link
C Bucket ram D Dipper
E Dipper link F Dipper ram
G Boom H Boom ram
J Operators cab K Counterweight
L Undercarriage
The boom dipper and bucket are collectively referred to as the excavator end, or dig end.
