Console Switches
17 9831/1450-1 17
Console Switches
General
The installed switches and their positions can change according to the specification of the machine.
Each switch has a graphic symbol to show the function of the switch. Before you operate a switch, make sure
that you understand its function.

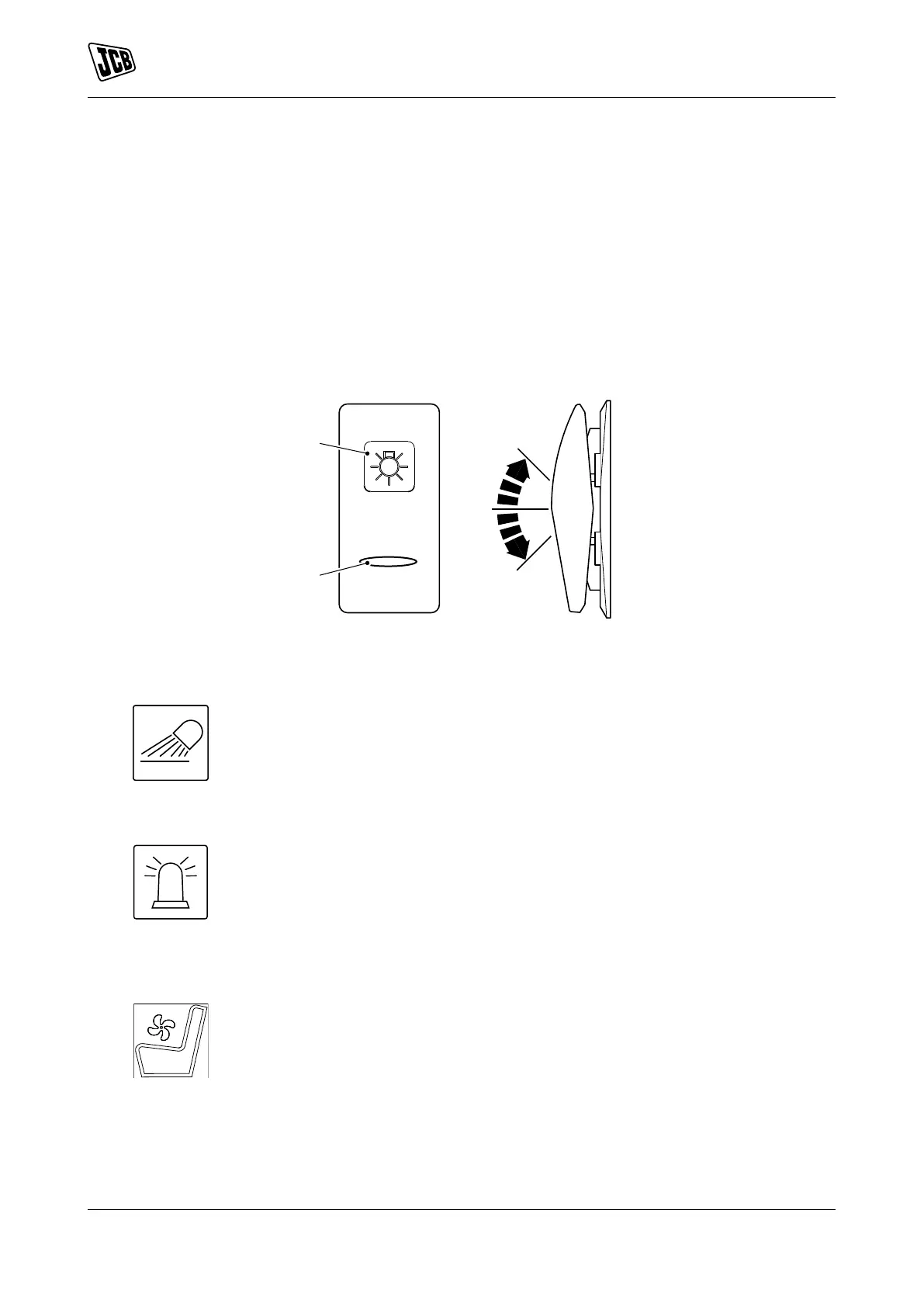

The rocker switches have two or three positions (as shown).
If the switch has a backlight, then the graphic symbol illuminates when the ignition switch or side lights are
in the on position.
The light bar illuminates to show that the switch function is active.
Figure 12.
1
3
2
A
B
A Graphic symbol B Light bar
Work Lights
Two position rocker switch. The switch functions operate when the ignition switch is
in the on position.
Position : 1 = Off
Position : 2 = Outer work lights on
Beacon
Two or three position rocker switch. The switch functions operate when the ignition
switch is in the on and off positions.
Position : 1 = Off
Position : 2 = Cab beacon on
Position : 3 = Cab and two rear beacons on (option).
Refer to: Operation > Preparing for Travel > Beacon (Page 54).
Seat Ventilation
Two position rocker switch. The switch functions operate when the ignition is in the
on position.
Position : 1 = Seat ventilation off
Position : 2 = Seat ventilation on
