Unit Identification

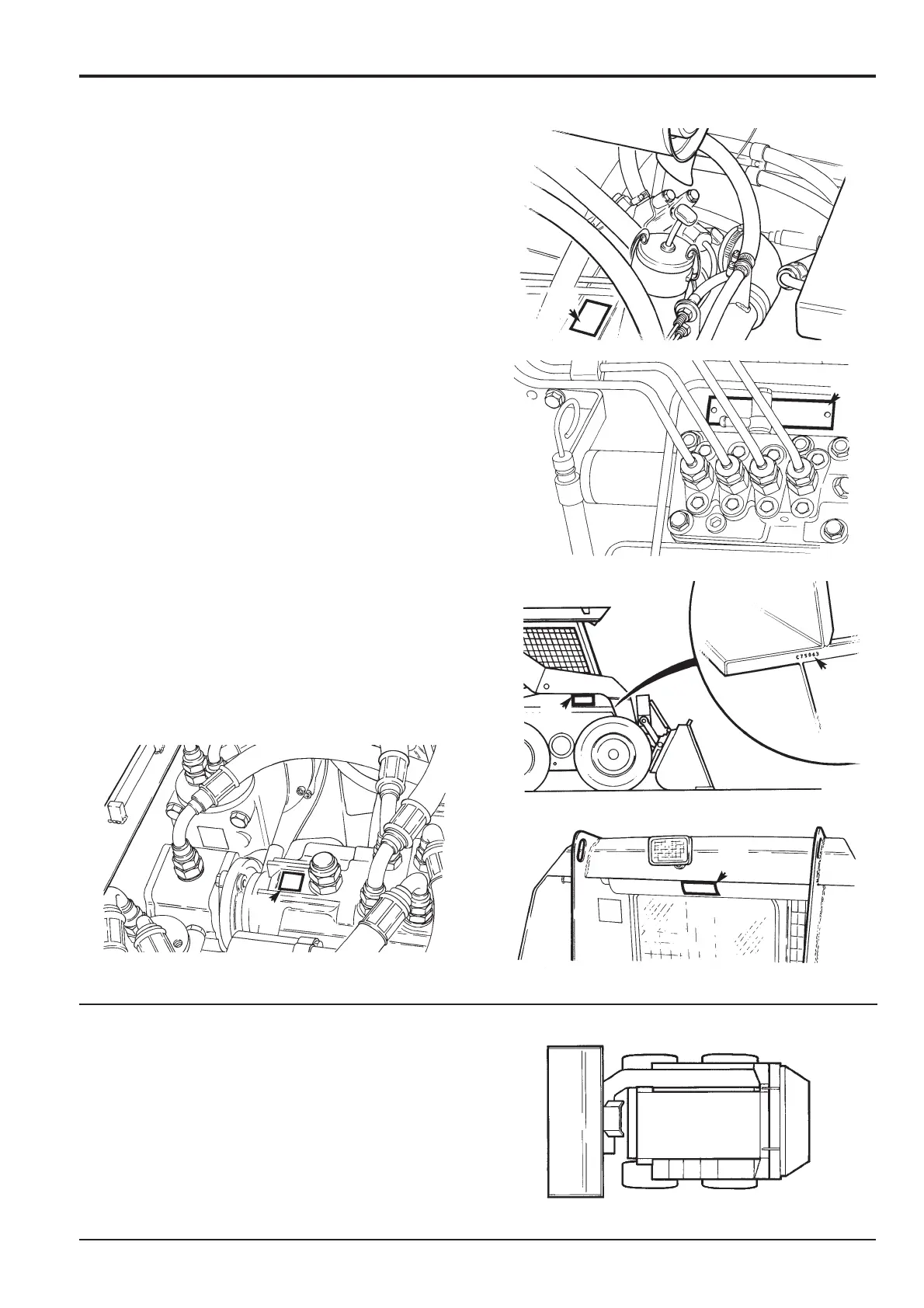

The engine serial number on XUD engines is stamped on a
machined area B on the top of the cylinder block. On JCB
Diesel engines the number is stamped on a label G on the
left side of the cylinder block.
The chassis serial number is stamped on the front edge of
the right hand mudguard as shown at C. On early machines
the serial number is stamped on the right hand side of the
machine as shown at F.
The lift arm serial number is stamped on the rear of the lift
arm as shown at D.
The hydraulic pump unit serial number is stamped on a plate
on the top of the pump at E.
If any of the above units are replaced with new ones, the
relevant serial number on the Machine Identification Plate will
be superseded. Either stamp the plate with the new number
or stamp out the old number.
Left Side, Right Side
In this manual, 'left' X and 'right' Y mean your left and right
when you are seated correctly in the machine.
Section 1
General Information
9803/8500
Section 1
1 - 2
Issue 2*
Identifying your Machine
Y
X
S173660
BB
DD
S173730
S173750
S255430
GG
EE
S173760
CC
FF
S173742
*
