06 - Body and Framework
06 - Access Cover
10 - Transmission Compartment
06 - 15 9813/5250-1 06 - 15

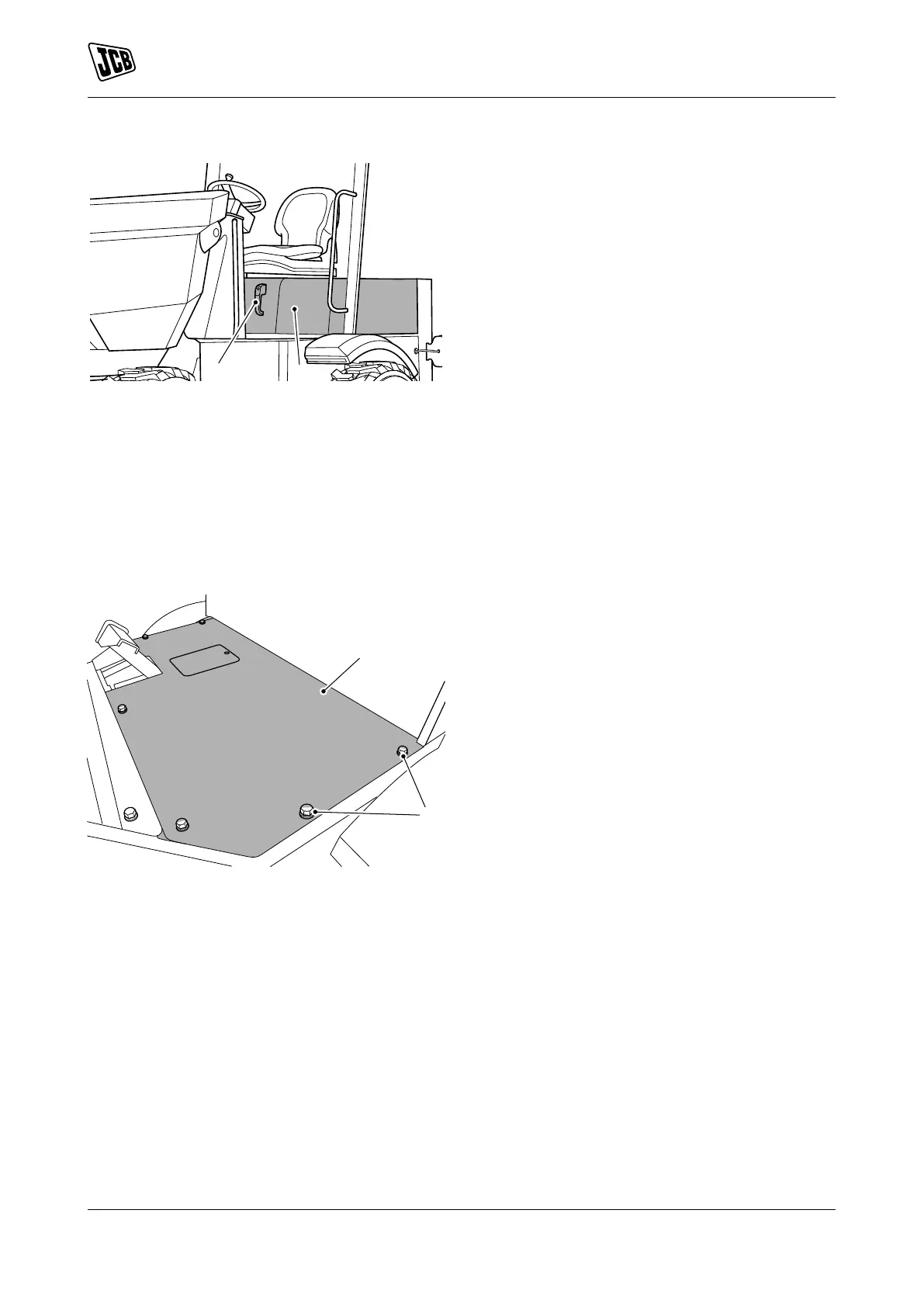

Figure 17.
A Lock
B Engine cover
6. Remove the bolts and washers from the floor
plate. Refer to Figure 18.
7. Lift the floor plate and clear of the machine to gain
access to the engine compartment.
8. Do not open the floor plate when the engine is
running.
Figure 18.
A Floor plate
B Floor plate bolts
Close
1. Check around the machine to make sure that no
object will become trapped with lowering of the
floor plate.
2. Use the bolts and washers to install the floor
plate. Refer to Figure 18.
3. Close the engine cover.
4. Use the ignition key to lock the engine cover.
Refer to Figure 17.
