- 27 -

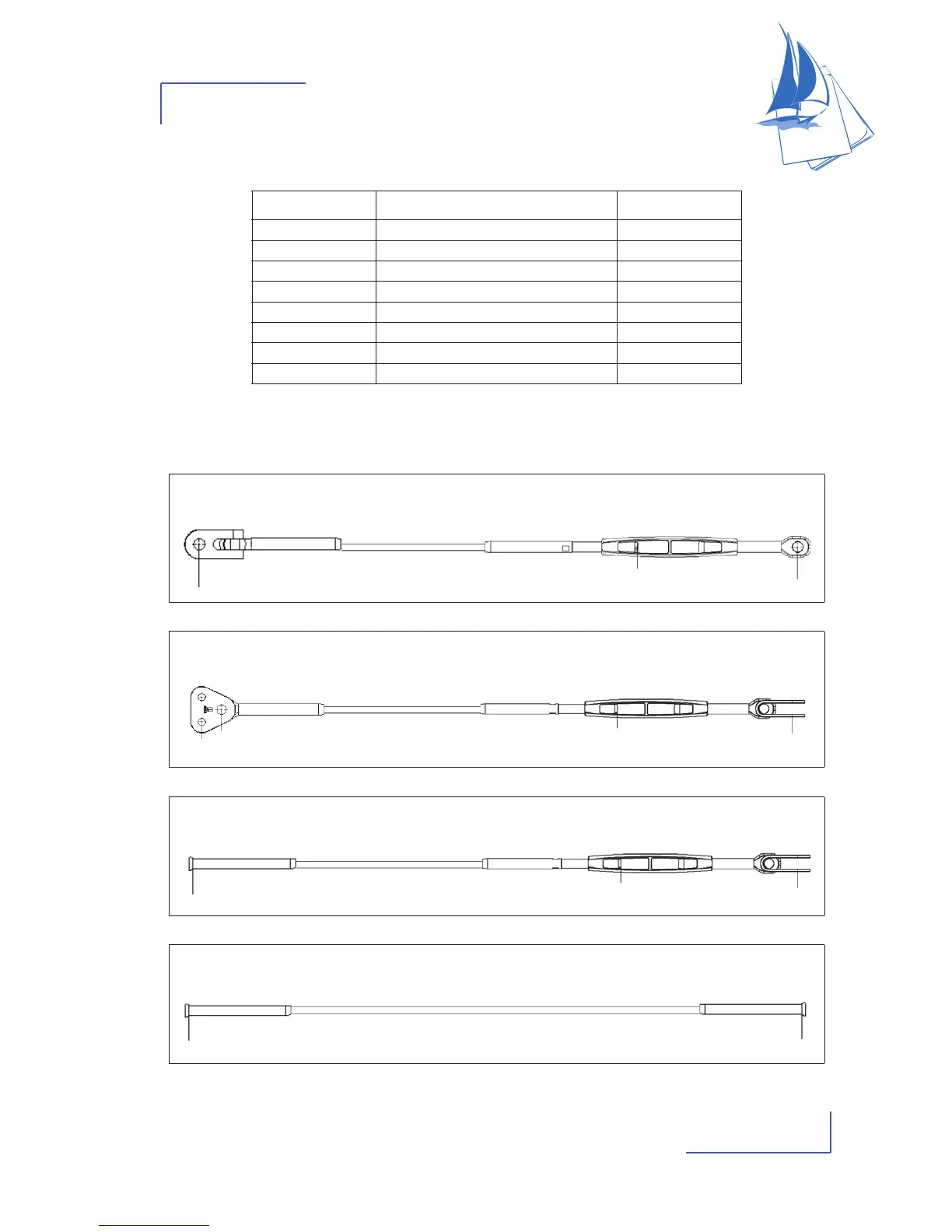

DETAIL
Reference Designation Quantity
1 Forestay 1
2 Backstay 2
3 V1 2
4 V2 2
5 V3D4 2
6 D1 2
7 D2 2
8 D3 2
Forestay - 16 mm diameter
Backstay - 12 mm diameter
V1 - 16 mm diameter
V2 - 14 mm diameter
5
RIGGING AND SAILS
