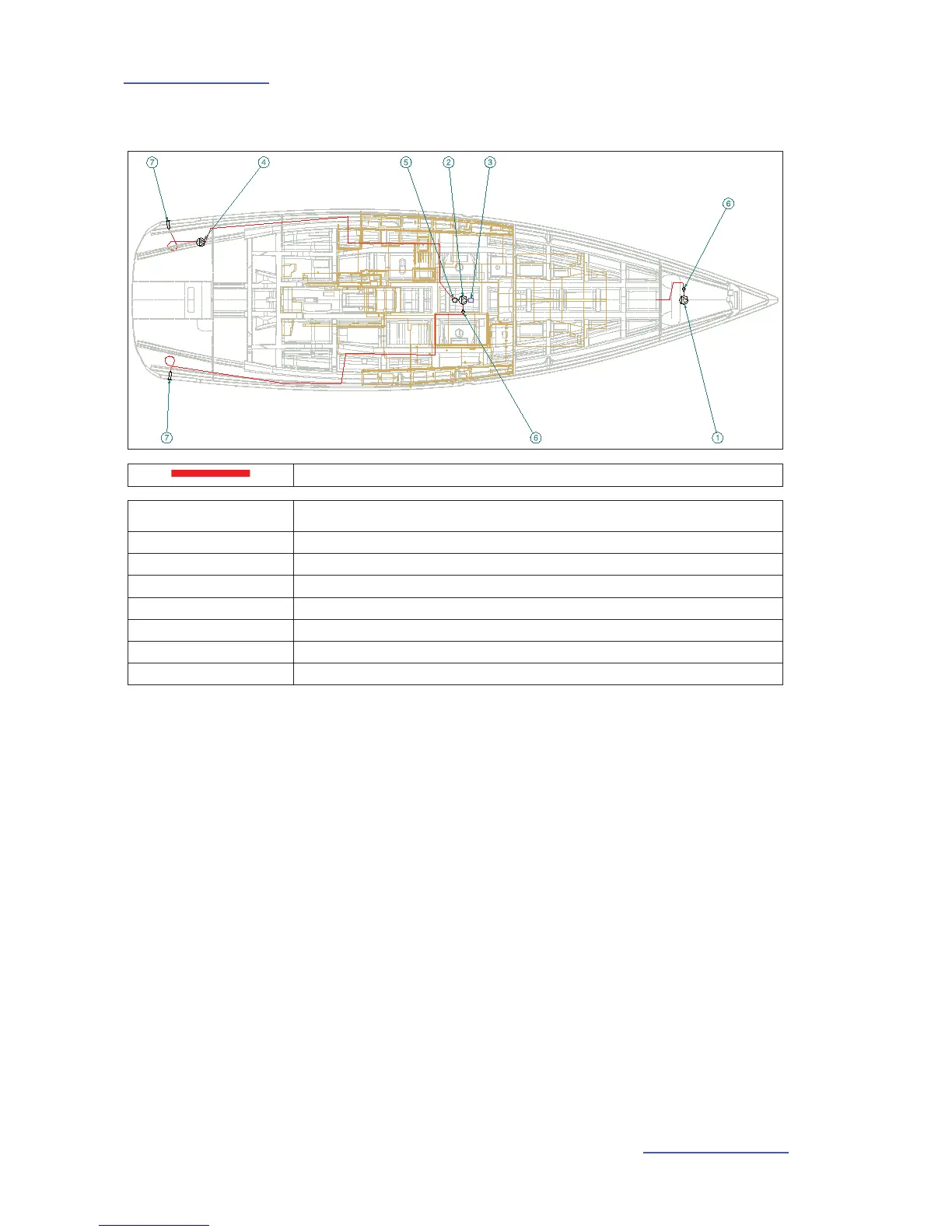

Diagram of the layout - Drying out the bilge
Pipe - Bilge pump system (40 mm diameter)
Reference Designation
1 Electric bilge pump (Skipper's cabin/Sail locker)
2 Electric bilge pump (Saloon)
3 Activator
4 Manual bilge pump
5 Intake strainer
6 Non-return valve
7 Kitchen sink evacuation through-hull
