Jebao DC Series User Manual

WARNING
 Do not connect to any other power supply over the rated voltage
 Do not put the pump in the flammable liquid.
 Do not use the pump in the water temperature above 35℃.
 The pump maximum diving depth is 1.5 meters.

Maximum head Max please see the parameter table.

Do not immerse the plug into water or other liquid.
 This appliance is not allowed to use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
 Children should be supervised to ensure that they do not play with the
appliance.
CAUTION
Always disconnect the pump from the power supply before cleaning, maintenance and
handling.
Do not let the pump work dry.
Do not lift the pump by holding the power cord only
Do not use the pump in the heating liquid.
The pump Suitable for both fresh water and sea water
The pump house must be filled with water.
The pump can not run in the swimming pool.
Automatic shut off if no water for 2 minutes.
Pull the plug out, and re-insert for resuming work
Operation
A clogged or dirty intake screen will reduce the performance.
If the pump is used on a dirty surface, raise it slightly to reduce the amount of debris
contacting the intake. If the flow is low, please adjust the regulator on the sealing cover.
Do not let the pump run in dry. The pump will be broken easily. Normally, put the
pump house fill with water, plug on. At the beginning, it probably can’t pump water,
because there is air in the pump and the connector fitting. Don’t worry. If used as
submersible pump, Please plug on and off for several times. If used as non-submersible
pump, please connected power supply then plug and loose the pipe several times. it will
work normally.
Used as submersible pumps (see fig.1)
IMPORTANT: Do not let the pump run dry – this could cause damage to the motor.

Submerse the pumps completely in your pond (or water tank) so as to make the
pump body fill with water.

A water level of approx. 15 cm is required for submersible use in order to prevent
the pump from taking in air. (See fig.1)
 To prevent the filter becoming prematurely clogged, place the pump above the
mud in the pond（or water tank ）!

Install the enclosed filter sponge to prevent the inlet from becoming clogged.
 The pump is designed to accommodate 3/4” internal threads as well as 11/4”,or
11/2”, or 3/4”external threads through the socket (fountain jets, nozzles, water
height regulators, standpipes, etc.).
 Running in conjunction with fountain jets, the pump should be stationed firmly
and horizontally (on a brick).

The pump can be switched on by simply plugging it in and switched off by
plugging off.

The water temperature should not exceed 35℃ (95℉) and do not let the pump
freeze in the wintertime.
Used as non-submersible pumps (see fig.2)

Position the pump lower than the water surface on the side of the pond (or water
tank) so that the water can be drained to the pump because it is not self-priming.
 Remove the filter cover and connect suction hose (A) and pressure hose (B) from
the pump. The connection should be waterproof.
 Fill the suction hose and pump with water before turning it on.
 To prevent the pump from becoming clogged, provide the suction hose with an
adequate suction filter. Never let the pump run dry.
Product operation diagram:

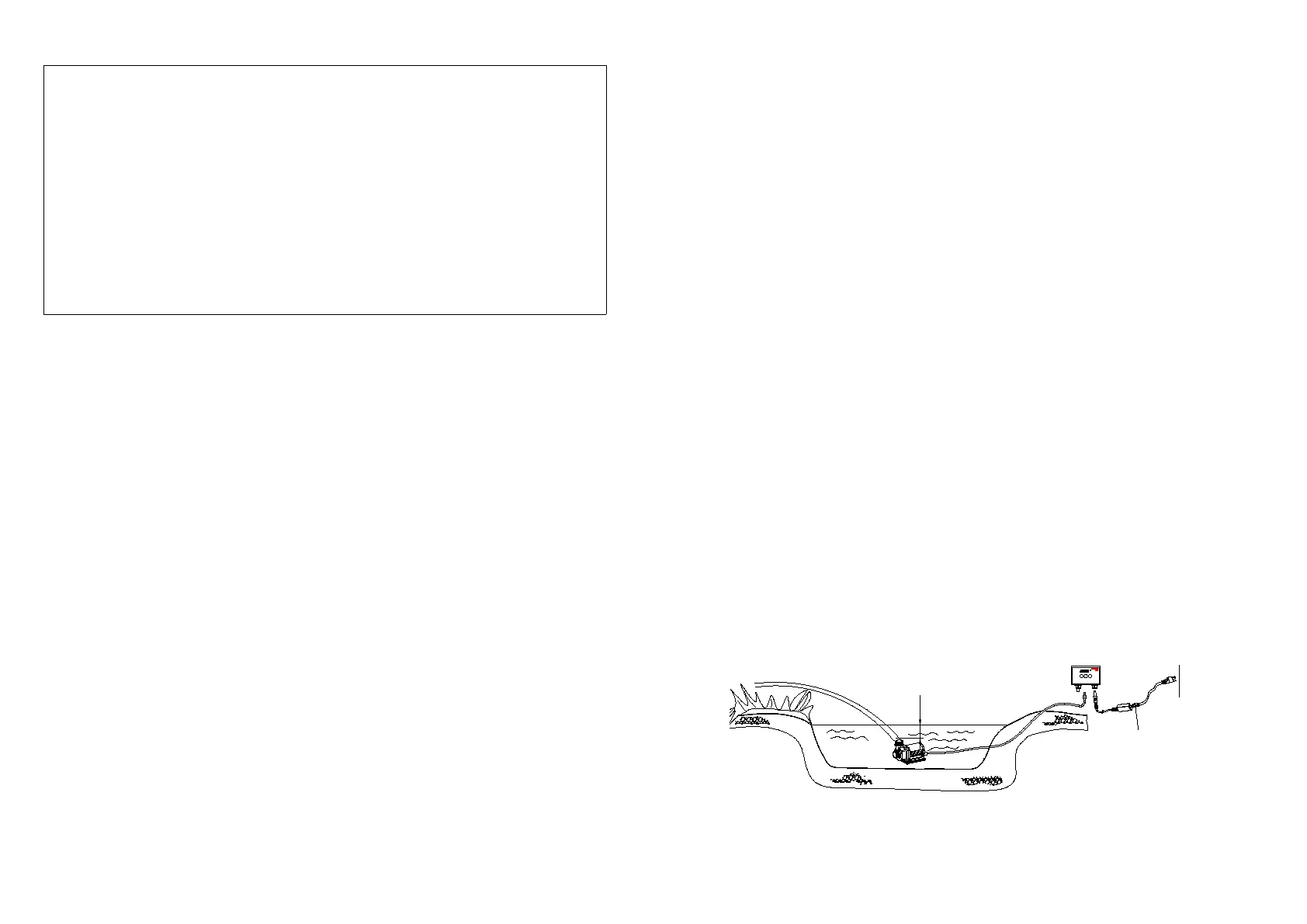

fig.1
15CM
SINE Wave Technology
10min
_
+
FEED
DCW-5000
Can used different plug for power cord.

Jebao DC Series Specifications

General

Model	DC Series
Adjustable Flow	Yes
Power Source	DC
Material	Plastic
Type	Submersible Pump
Controller	External Controller Included
Flow Rate	Varies by model
Max Head	Varies by model
Power Consumption	Varies by model
Connection Size	Varies by model
Weight	Varies by model
