Jedia MOBILE 35 - Rear Panel Controls; MIC, AUX Input Jacks; Priority Switches; MIC;AUX Selector Switch

3
1.󰼿MIC,󰼿AUX󰼿입력󰼿잭󰼿
바란스󰼿MIC,󰼿AUX󰼿의󰼿입력󰼿잭󰼿:󰼿입력감도는󰼿MIC는󰼿-50dB,󰼿AUX는󰼿
-20dB󰼿입니다.
2.󰼿우선권󰼿스위치󰼿
MIC󰼿1/2󰼿우선권󰼿선택󰼿스위치이며󰼿스위치를󰼿아래󰼿방향으로󰼿누르면󰼿
우선권이󰼿부여됩니다.
3.󰼿MIC,󰼿AUX󰼿선택󰼿스위치
입력감도를󰼿MIC󰼿LEVEL󰼿또는󰼿AUX󰼿LEVE로󰼿선택하기󰼿위한󰼿스위치󰼿
입니다.
4.󰼿테이프󰼿IN/REC󰼿잭
이󰼿잭들은󰼿테이프의󰼿신호와󰼿녹음󰼿출력을󰼿위한󰼿RCA󰼿잭󰼿입니다.
6.󰼿전화󰼿벨의󰼿볼륨󰼿조절과󰼿ON/OFF󰼿스위치
전화󰼿벨소리󰼿ON/OFF󰼿스위치
8.󰼿스피커󰼿터미널
스피커󰼿토탈󰼿임피던스는󰼿정격󰼿임피던스󰼿보다󰼿높게󰼿사용할것.
9.󰼿HIGH󰼿IMPEDENCE󰼿SELECTOR󰼿SWITCH󰼿
이󰼿스위치는󰼿스피커󰼿터미널의󰼿출력을󰼿100V󰼿또는󰼿70V로󰼿하기위한󰼿
스위치󰼿입니다.
10.󰼿12V󰼿단자
배터리를󰼿연결하기󰼿위한󰼿단자󰼿입니다.󰼿
연결하기󰼿전에󰼿극성을󰼿확인하십시오.
11.󰼿교류󰼿전원󰼿공급용󰼿소켓
교류전원󰼿공급용󰼿소켓이며,󰼿전면의󰼿주전원󰼿스위치가󰼿"OFF"된󰼿상태
에서󰼿전원코드를󰼿끼워󰼿주십시오.
12.󰼿교류󰼿전원󰼿휴즈용󰼿홀더
교류전원용󰼿휴즈󰼿홀더입니다.
5.󰼿TELEPHONE󰼿IN󰼿/󰼿TELEPHONE󰼿RING󰼿TERMINAL󰼿
TEL󰼿IN󰼿:󰼿전화󰼿교환󰼿보드의󰼿페이징󰼿오디오󰼿신호가󰼿연결되는󰼿곳입니다.󰼿
TEL󰼿RING󰼿:󰼿전화가󰼿올때󰼿벨소리를󰼿증폭시켜󰼿스피커를󰼿통하여󰼿들을󰼿
수󰼿있도록󰼿한다.
1. MIC, AUX INPUT JACKS
As a balanced MIC/AUX input jack: Its input sensitivity is -50dB at MIC,
-20dB at AUX.
2. PRIORITY SWITCHES
As priority selector switch for MIC1/2 priority selector is given by push
the switch downward.
3. MIC/AUX SELECTOR SWITCH
This switch provide supplied signal in MIC-3/AUX-1 input jack to inner
circuit by conversion.
4. TAPE IN/REC OUT JACKS
These jacks are RCA pin jacks for input signal of tape and recording
output.
6. VOLUME TO ADJUST TEL RING / ON/OFF SWITCH
Switch make possible ON/OFF input signal of telephone bell and volume
is used to adjust input level of bell signal.
7. VOLUME TO ADJUST TEL IN
Volume is used to adjust input level pf paging broadcasting signal.
9. HIGH IMPEDANCE SELECTOR SWITCH
This switch is for selecting the impedance of the high impedance terminal
on speaker terminal.
10. 12VDC TERMINALS
This terminal is for connecting the battery input, please confirm the polarity
before connecting.
11. AC INLET SOCKET
This is AC power cord socket. Please connect the power cord after main
power switch "off".
12. AC FUSE HOLDER
This is AC fuse holder.
Be sure not to make the total impedance less then rated impedance.
There is DC fuse in P.C.B board
8. SPEAKER TERMINAL
These terminals are for connecting the speakers.
Select the terminals of 4~16ohm or high impedance not to overload.
5. TELEPHONE IN/TELEPHONE RING TERMINALS
TEL IN: As a input terminal of telephone signal for paging broadcasting.
It should be connected with paging audio circuit telephone exchange
board isolating telecom network.
R

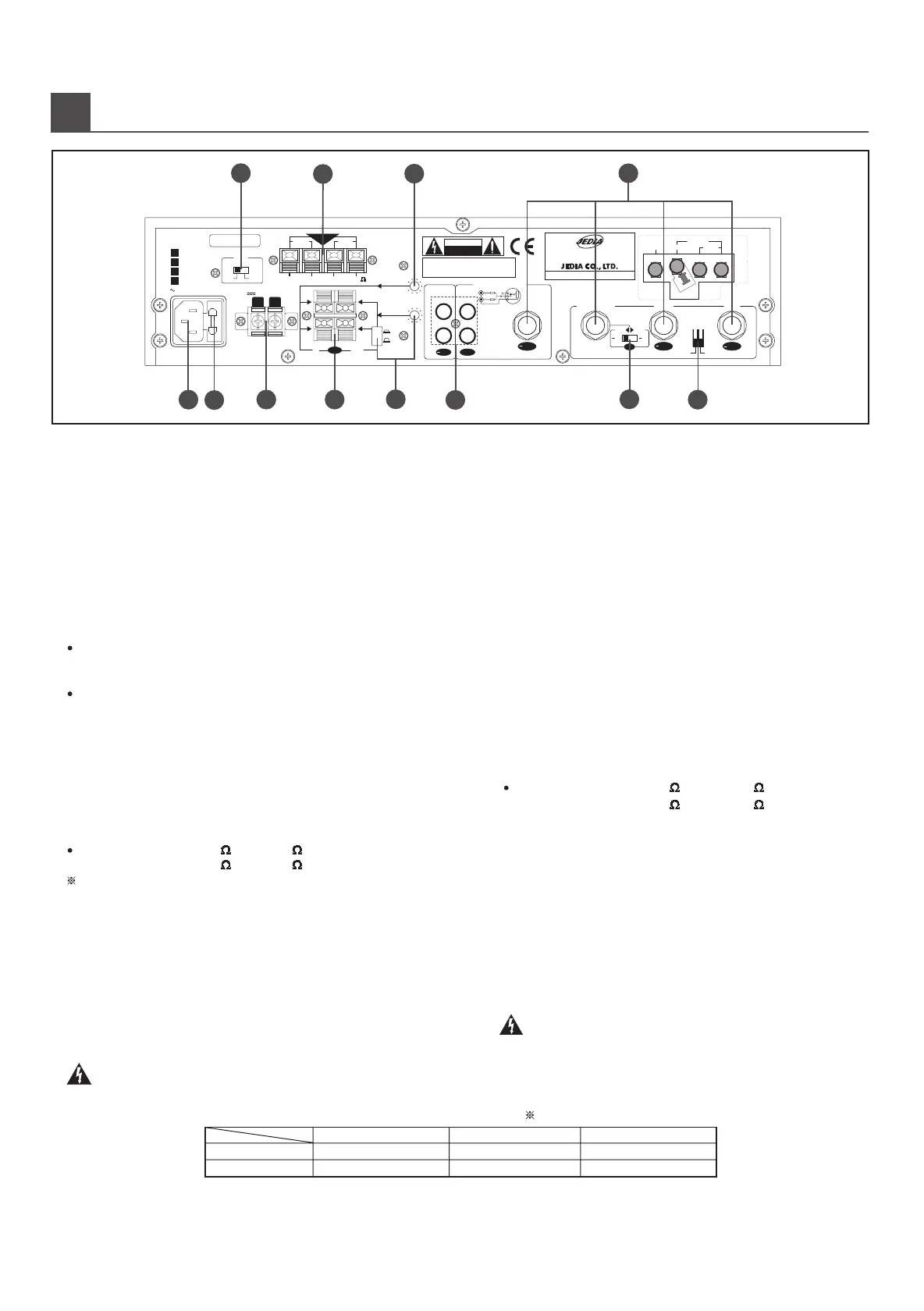

EAR PANEL CONTROLS (후면기능)
TEL RING: Telephone ringing sound is amplified when phone call comes
to user in the night time.
OUTPUT MOBILE35 --140 (70V) --286 (100V)
MONILE60 -- 82 (70V) --167 (100V)
MODEL
VOLTAGE
120V AC 220/230/240V AC
MOBILE35
12V DC
T6AL 250V(65TL)
T10AL 250V(65TL)
MOBILE60
T1AL 250V(S51)
T2AL 250V(S51)
T500mAL 50V(50T)
T1A 250V(50T)
IMPORTANT NOTICE:
When fuse is blown out, it should be replaced with the same type
fuse like following table, if it continuous to blown out, stop replacing
fuse and refer servicing to qualified person.
중요사항󰼿:󰼿휴즈를󰼿교체시에는󰼿반드시󰼿규정된󰼿정격󰼿휴즈를󰼿자격
이󰼿있는󰼿사람이󰼿교체하십시오.
OUTPUT󰼿MOBILE35󰼿--140󰼿󰼿󰼿(70V)󰼿--286󰼿󰼿󰼿(100V)
󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿󰼿MONILE60󰼿--󰼿󰼿82󰼿󰼿󰼿(70V)󰼿--167󰼿󰼿󰼿(100V)
1
2
3
4
11
12
8
6
10
7
5
300W
AM GND
FM 75W
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MIC-1 MIC-2
MIC-3
AUX-2
AUX-1
/
REC OUT TAPE IN
R
L
R
L
MIC
AUX
PRIORITY
MIC2
MIC1
50
70V
100V
IMPEDANCE
HIGH LOW
4~16
COM 0
70/100V
OUTPUT
TAPE SIGNAL BLOCK
20
dB
AUX2
HIGH
RING
IN
–
+
TEL
CAUTION: TO REDUCE THE
RISK OF FIRE REPLACE ONLY
WITH SAME TYPE FUSE.
WARNING : TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
50dB
50dB
20dB
6dB 0dB
0
10
TEL RING
TEL IN
SERIAL NO.:
0
10
OFF
ON
USE ONLY WITH A 250V FUSE
12
AC IN 50/60Hz 210W
MODEL NO.: MOBILE 60
DC POWER
12V MAX10A
120VAC
T2A 250V
220VAC
T1AL 250V
230VAC
T1AL 250V
240VAC
T1AL 250V
MADE IN KOREA
MIXING POWER AMPLIFIER
9
