DRIVING CLUTCH K1
DISASSEMBLY
(1) Remove snap-ring (11) (Fig. 50) from outer
multiple-disc carrier (6).
(2) Take multiple-disc pack (12) out of outer mul-
tiple-disc carrier (6).
(3) Place Multi-use Spring Compressor 8900 on the
spring plate (8) and compress the spring until the
snap-ring (10) is exposed.
(4) Remove snap-ring (10) (Fig. 50).
(5) Take out disc spring (7) and remove piston (6)
by carefully blowing compressed air into the bore (A).
(6) Remove snap-ring (3) and take out front free-
wheeling clutch F1 (2).

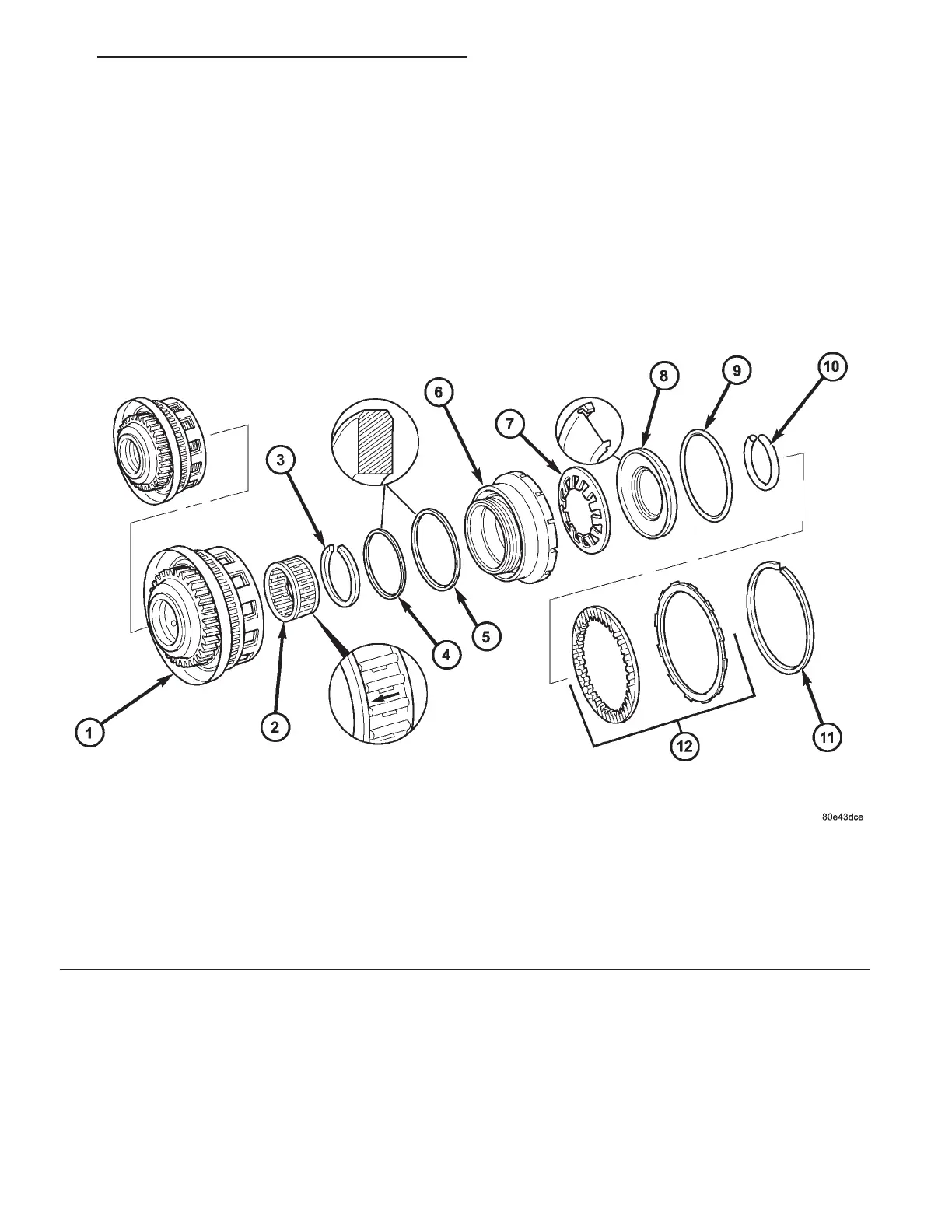

Fig. 50 Driving Clutch K1 Components
1 - K1 OUTER DISC CARRIER 7 - DISC SPRING
2 - FREEWHEELING CLUTCH F1 8 - SPRING PLATE
3 - SNAP-RING 9 - SPRING PLATE SEALING RING
4 - OUTER DISC CARRIER SEALING RING 10 - SNAP-RING
5 - PISTON SEALING RING 11 - SNAP-RING
6 - PISTON 12 - MULTIPLE DISC PACK
WG TRANSMISSION AND TRANSFER CASE 21a - 49
