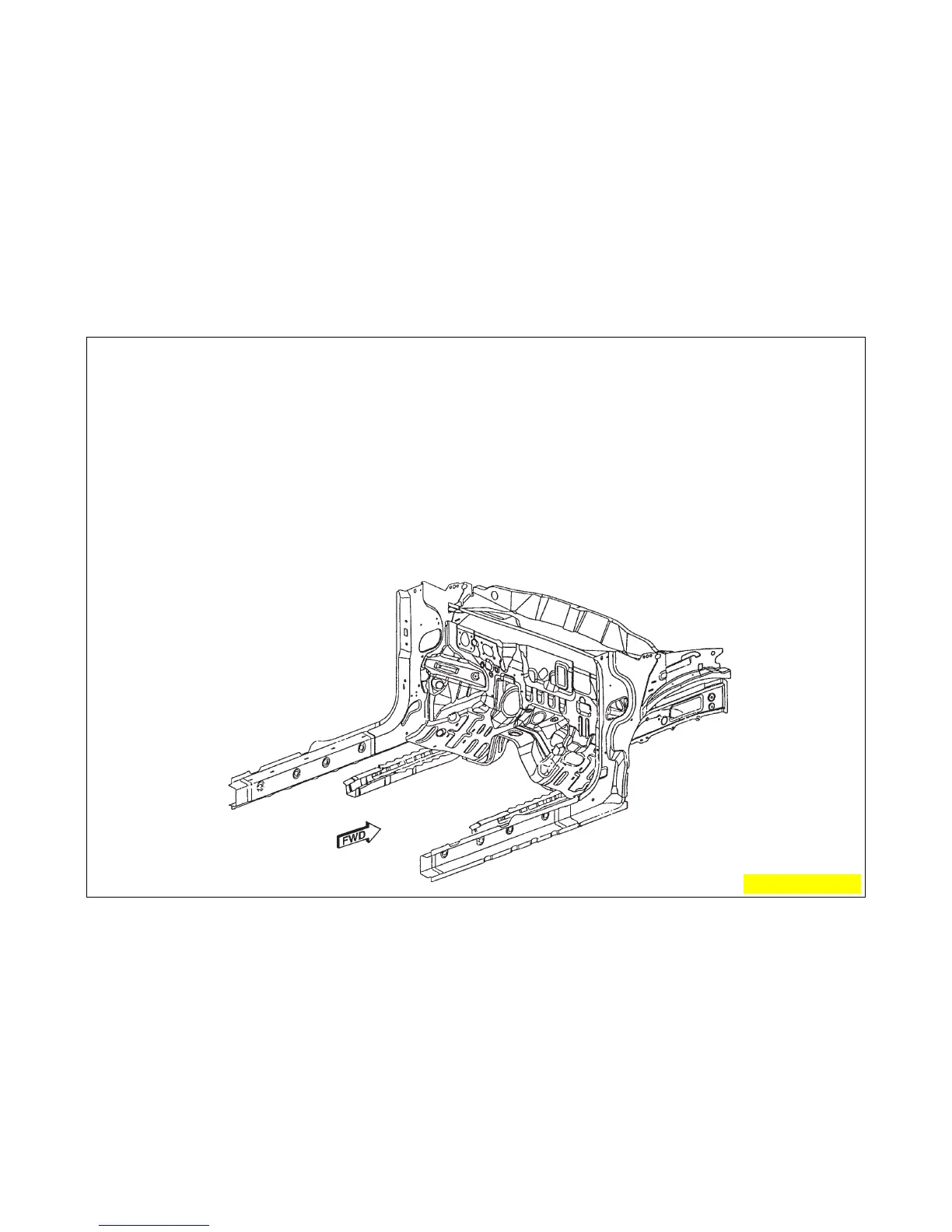

PARTS IDENTIFICATION LEGEND, OVERVIEW 18

Back to Index

AA PANEL – COWL TOP LOWER –

AB PANEL – COWL SIDE RT –

AB PANEL – COWL SIDE LT –

AC BEAM – LOAD PATH INR UPR RT –

AC BEAM – LOAD PATH INR UPR LT –

AD SILL – FRT FLOOR –

AD SILL – FRT FLOOR –

AE BRACE – TORQUE BOX RT –

AE BRACE – TORQUE BOX LT –

AF REINF – FRT FLOOR RT –

AF REINF – FRT FLOOR LT –

AG PANEL – SHOCK TOWER MOUNTING FRT RT –

AG PANEL – SHOCK TOWER MOUNTING FRT LT –

AP REINF – SHOCK TOWER MOUNTING FRT LT –

AR PANEL – SIDE FRT RAIL QTR RT –

AR PANEL – SIDE FRT RAIL QTR LT –

AS CROSSMEMBER – DASH –

AS CROSSMEMBER – DASH –

AT CROSSMEMBER – DASH –

AU PANEL – DASH LWR –

AV EXTENSION – DASH LWR –

AV EXTENSION – DASH LWR –

AW EXTENSION – RAIL FRT RT –

AW EXTENSION – RAIL FRT LT –

AH REINF – FRT SUSPENSION ISOLATOR STRUT

MOUNTING RT –

AH REINF – FRT SUSPENSION ISOLATOR STRUT

MOUNTING LT –

AJ PANEL – DASH –

AK PANEL – EXTENSION FRT RAIL INR RT –

AK PANEL – EXTENSION FRT RAIL INR LT –

AL REINF – EXTENSION FRT RAIL INR RT –

AL REINF – EXTENSION FRT RAIL INR LT –

AM BRACE – FRT SIDE FRT RT –

AM BRACE – FRT SIDE FRT LT –

AN CROSSMEMBER – DASH –

AP REINF – SHOCK TOWER MOUNTING FRT RT –
