FRONT FRAME RAIL SECTIONING PROCEDURE
1. With vehicle mounted to appropriate pulling and 3-dimensional measuring equipment, complete the
following procedure paying particular attention to body dimensions while fitting and welding panels.
2. Remove bumper components, cooling module, headlamp, and all other components for clear access
to repair area.

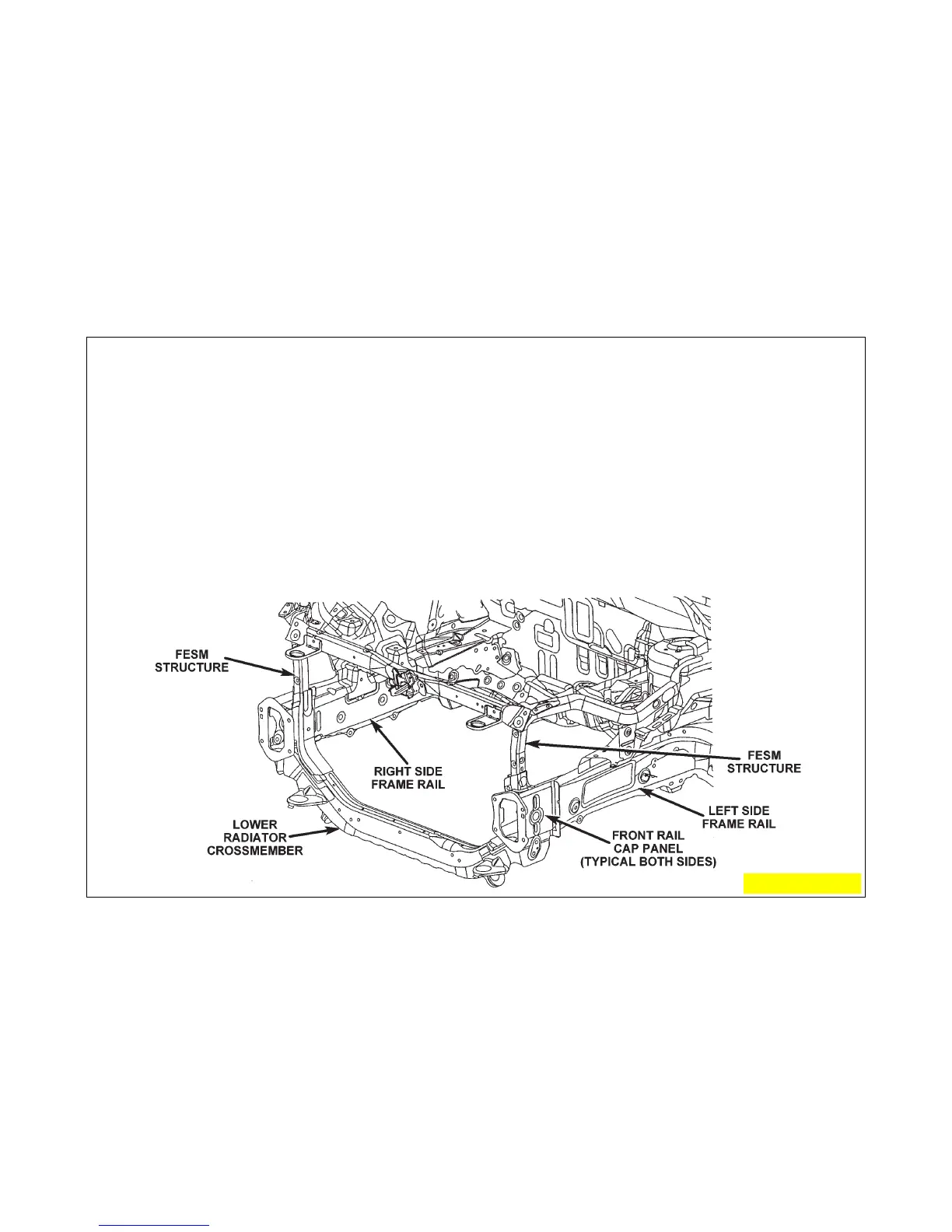

3. Remove front rail cap panel on damaged rail.
4. Remove welds holding lower radiator crossmember to damaged rail (if crossmember is damaged,
remove completely).
5. Remove welds holding FESM structure to rail (if damaged, remove complete assembly).
