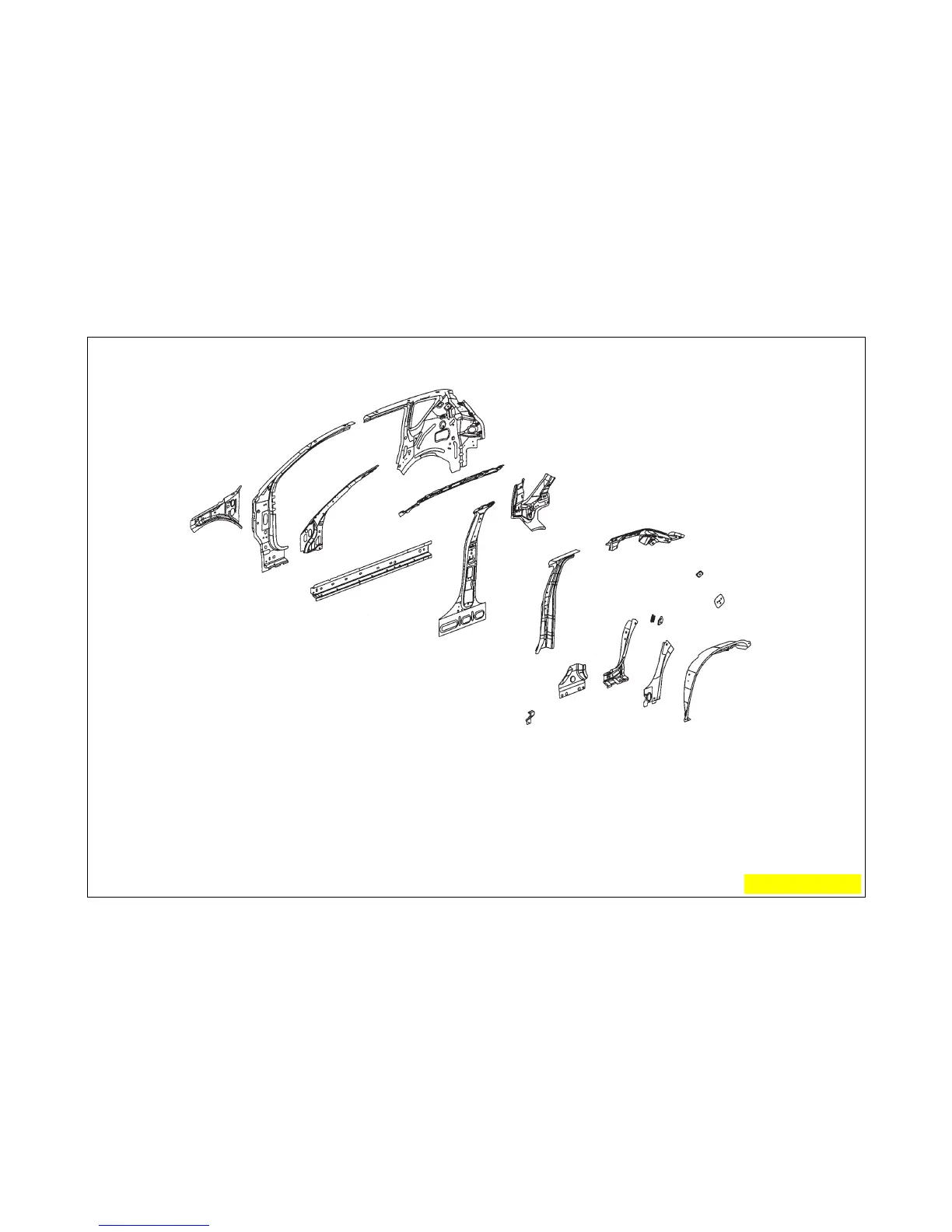

JEEP COMPASS BODY SIDE APERTURE INNER ASSEMBLY SECTION

Back to Index

AA PILLAR – BODY FRT HINGE RT –

AA PILLAR – BODY FRT HINGE LT –

AB BEAM – UPR LOAD PATH OTR RT –

AB BEAM – UPR LOAD PATH OTR LT –

AC PANEL – B-PILLAR INR RT –

AC PANEL – B-PILLAR INR LT –

AD BRAKET – SILL OTR –

AF REINF – D-PILLAR UPR RT – ROOF SUPPORT

AF REINF – D-PILLAR UPR LT – ROOF SUPPORT

AG PANEL – B-PILLAR INR RT –

AG PANEL – B-PILLAR INR LT –

AH RAIL – ROOF SIDE INR RT –

AH RAIL – ROOF SIDE INR LT –

AJ PANEL – B-PILLAR INR RT –

AJ PANEL – B-PILLAR INR LT –

AK REINF – QTR INR BELTLINE RT –

AK REINF – QTR INR BELTLINE LT –

AL REINF – QTR INR D-PILLAR TURNING LOOP –

AM BRACKET – QTR INR BELTLINE RT –

AM BRACKET – QTR INR BELTLINE LT –

AN PANEL – RR WHEELHOUSE OTR RT –

AN PANEL – RR WHEELHOUSE OTR LT –

AP PANEL – QTR INR LWR RR RT –

AP PANEL – QTR INR LWR RR LT –

AR REINF – C-PILLAR LWR RT –

AR REINF – C-PILLAR LWR LT –

AS REINF – INR BODY SILL RT –

AS REINF – INR BODY SILL LT –
