Jeep Compass Repair Manual
4
of 1
of 1 rating
341 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

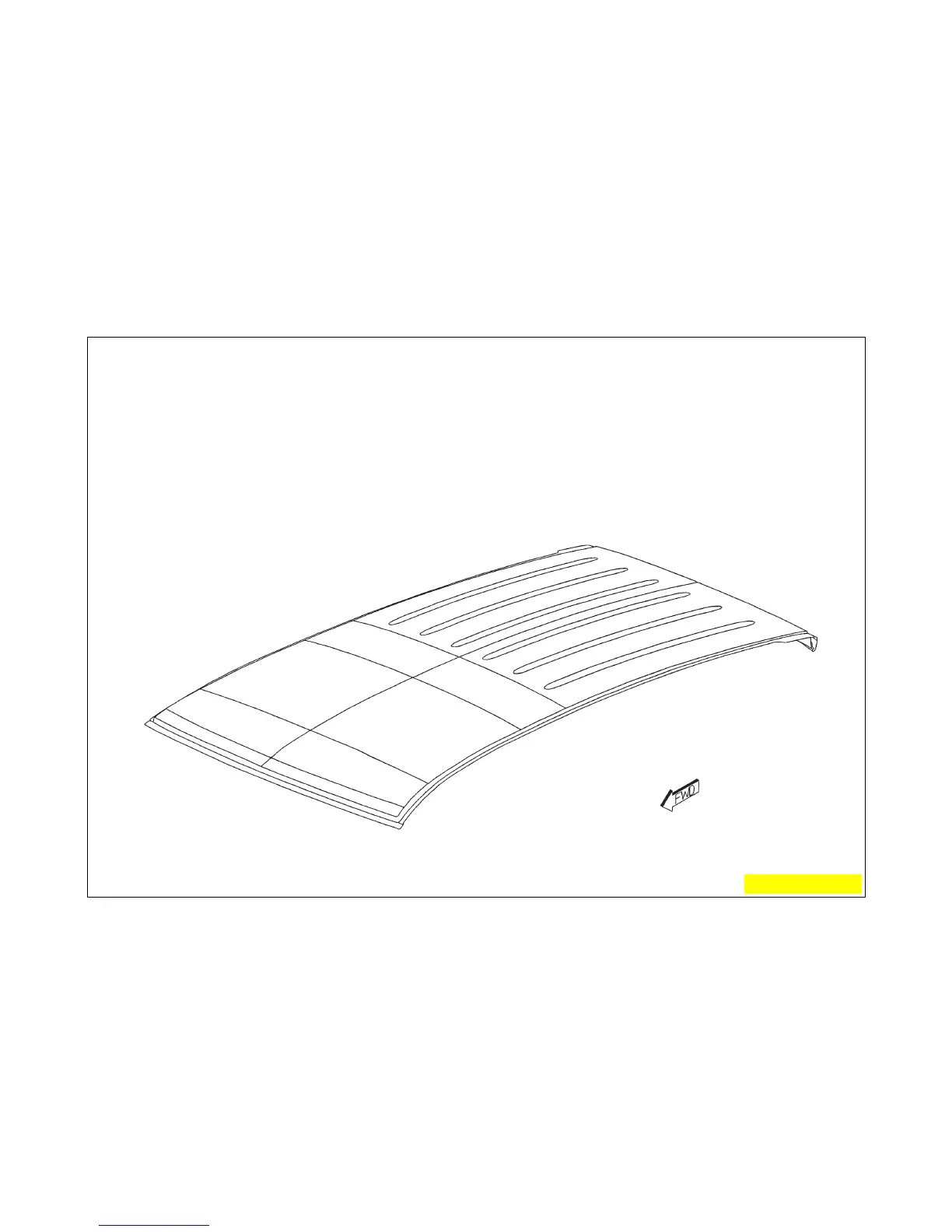

P
ARTS IDENTIFICA
TION LEGEND, OVERVIEW 23
Back to Index
AA
P
ANEL – ROOF OTR –
AB
05074902AA – HEADER – ROOF FRT L
WR
AC
HEADER – ROOF FRT UPR –
AD
HEADER – ROOF FRT L
WR –
AE
REINF – RR HEADER UPR A
T LIFTGA
TE HINGE RT
– ROOF SUPPORT
AF
BOW – ROOF – B-PILLAR
AG
BOW – C-PILLAR
244
246
Table of Contents
Safety Notice
2
Body Construction Characteristics
5
Partial List of Steel Applications
5
MK-49 New Net Build Door Striker Tap Plate
9
History of Collision Repair
11
Factory Applied Corrosion Protection
12
Corrosion Protection Information
15
Collision Repair Corrosion Protection Materials
15
Spray Accessibility to the Repair
16
Desired Characteristics of Corrosion Protection Material
17
Jeep Compass Vehicle Identification Number Decription
19
Vehicle Identification Number (VIN)
19
Vehicle Identification Number Decoding Chart
20
Vehicle Certification Label
21
Jeep Compass Paint Codes
23
Jeep Compass Paint Code Location
24
Explanation of Welding/Sealer Information
27
Explanation of Welding Abbreviations
28
Weld Location Overview Zones
29
Jeep Compass Front Floor Section
30
Parts Identification Legend, Overview 2
31
Weld Layout Location Guide
32
Jeep Compass Sidemember Assembly Section
36
Parts Identification Legend, Overview 3
37
Jeep Compass Rear Floor Section
51
Parts Identification Legend, Overview 4
52
Jeep Compass Front Rails Section
58
Parts Identification Legend, Overview 5
59
Jeep Compass Plenum Assembly Section
76
Parts Identification Legend, Overview 6
77
Jeep Compass Dash Assembly Section
85
Parts Identification Legend, Overview 7
86
Jeep Compass Engine Box Section
90
Parts Identification Legend, Overview 8
91
Jeep Compass Body Side Aperture Section
101
Parts Identification Legend, Overview 9
102
Jeep Compass Front End Sheet Metal Section
109
Parts Identification Legend, Overview 11
110
Jeep Compass Front Door Assembly Section
117
Parts Identification Legend, Overview 12
118
Jeep Compass Rear Door Assembly Section
126
Parts Identification Legend, Overview 13
127
Jeep Compass Liftgate Section
133
Parts Identification Legend, Overview 14
134
Jeep Compass Engine Box Assembly Section
142
Parts Identification Legend, Overview 16
143
Jeep Compass Plenum/Dash Assembly Section
156
Parts Identification Legend, Overview 17
157
Jeep Compass Engine Box Complete Section
167
Parts Identification Legend, Overview 18
168
Jeep Compass Front Floor Assembly Section
175
Parts Identification Legend, Overview 19
176
Jeep Compass Rear Floor Assembly Section
184
Parts Identification Legend, Overview 20
185
Jeep Compass Underbody Complete Section
200
Jeep Compass Body Side Aperture Inner Assembly Section
216
Parts Identification Legend, Overview 22
217
Jeep Compass Body Side Aperture Outer Assembly Section
225
Parts Identification Legend, Overview 23
226
Jeep Compass Body Side Aperture Complete Section
231
Parts Identification Legend, Overview 24
232
Jeep Compass Roof Without Sunroof Section
244
Jeep Compass Roof with Sunroof Section
250
Jeep Compass Body in White Complete Section
256
Parts Identification Legend, Overview 27
257
Sealer/Sound Deadener/Structural Adhesive/Foam Locations Jeep Compass
274
Sealer Information
275
Body Sealer Locations
276
Roof Corner/Aperture Panel
277
Upper Cowl Top/Cowl Side
278
Front Wheelhouse/Shock Timer
279
Dash/Plenum/Cowl Side Panel
280
Dash/Steering Shaft Bracket
281
Dash/Front Floor Pan
282
Rear Wheelhouses
283
Right Inner Quarter Panel
284
Left Inner Quarter Panel
285
Underbody
286
Rear Floor Pan
287
Roof/Body Side Aperture
288
Roof/Roof Rear Upper Header
289
Body Side Aperture/Liftgate Drain through
290
Tail Lamp Panel
291
Lower Liftgate Closeout Panel
292
Body Side Aperture/Inner Body Side Reinforcement
293
Rear Wheelhouse
294
Rear Wheelhouse/Rear Quarter Panel Extension
295
Jeep Compass Structural Adhesive Locations
296
Structural Adhesive Location Index
297
Plenum Assembly
298
Front Floor
299
Sidemember Assembly
300
Body Side Aperture Inner Assembly
303
Body Side Aperture Complete
304
Roof Without Sunroof
305
Roof with Sunroof
306
Body in White - Complete
307
Nvh/Structural Foam Information
309
Sound Deadener Locations
310
Upper "A" Pillar
311
Lower "A" Pillar
312
Inner "B" Pillar
313
Lower "C" Pillar
314
Front Floor Pan
315
Spare Wheel Well
317
Jeep Compass Frame/Body Dimensions
318
Frame Dimensions
319
Frame Dimensions (Plan View)
320
Frame Dimensions (Side View)
321
Opening Dimensions
322
Engine Box Opening
323
Windshield Opening
324
Front Door Opening
325
Rear Door Opening
326
Quarter Window Opening
327
Liftgate Opening
328
Liftgate Window Opening
329
Gap and Flush Dimensions
330
Front Frame Rail Sectioning Procedure
332
Inner Rail to Outer Rail
340
