- 4 -
1. “2-1-1. Side Cover panel disassembly” Reference
2. “2-1-5. Relay disassembly” Reference
3. The assembly is reverse order of disjointing.
Classification Symptom Service Factor
Temperature Temp doesn’t increase SSR Malfunction
Check point
1. Set the SV value higher than PV, Press the Start Button.
2. Check the HEAT LED is lightning on Display. (No Flickering, Lightning)

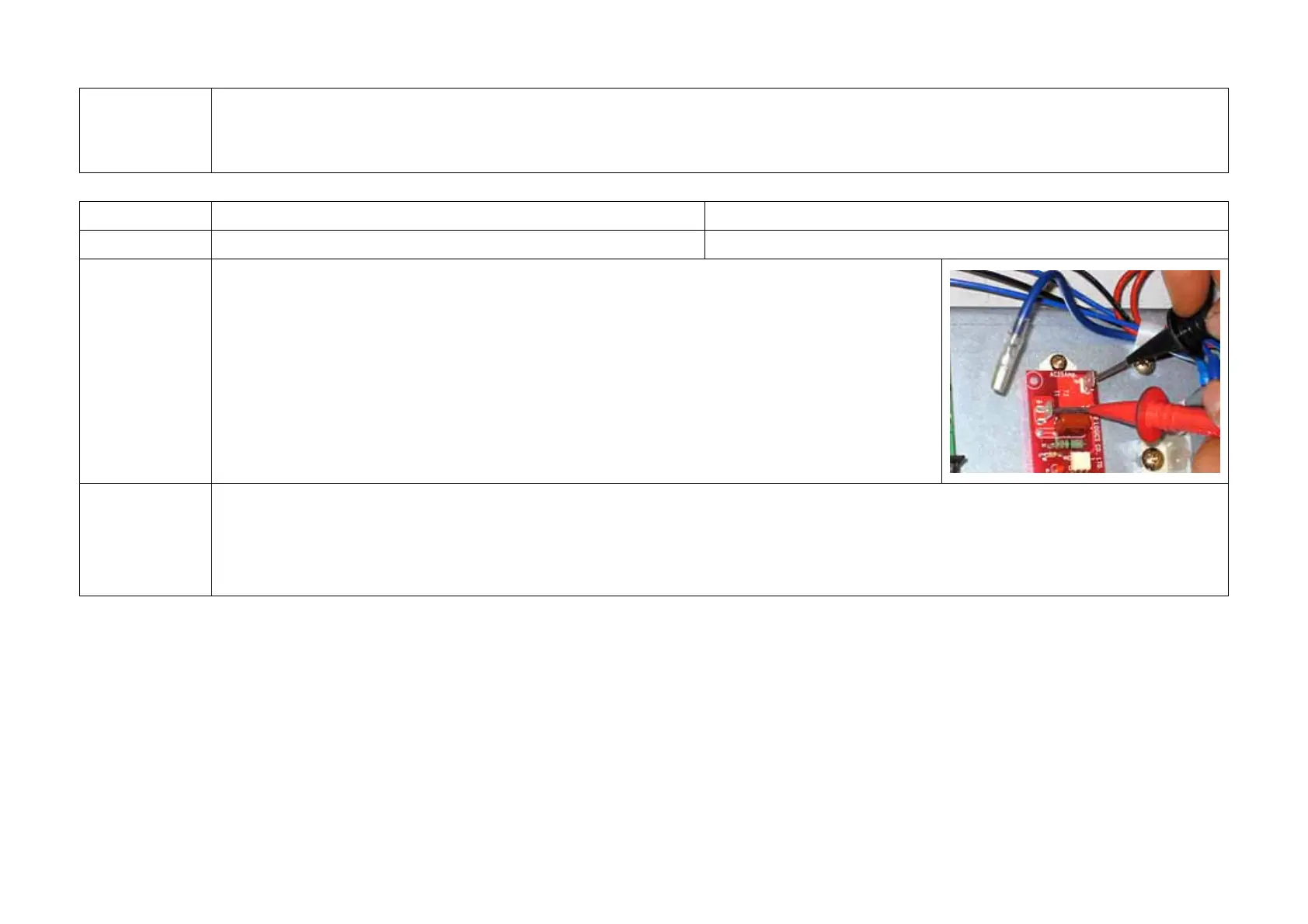

3. Check Terminal Resistance using of the Multi meter. (Resistance MODE)
Æ If resistance doesn’t measure, it is a malfunction.
Solution
- Replace the SSR.
1. “2-1-1. Side Cover panel disassembly” Reference
2. “2-1-4. SSR disassembly” Reference
3. The assembly is reverse order of disjointing.
