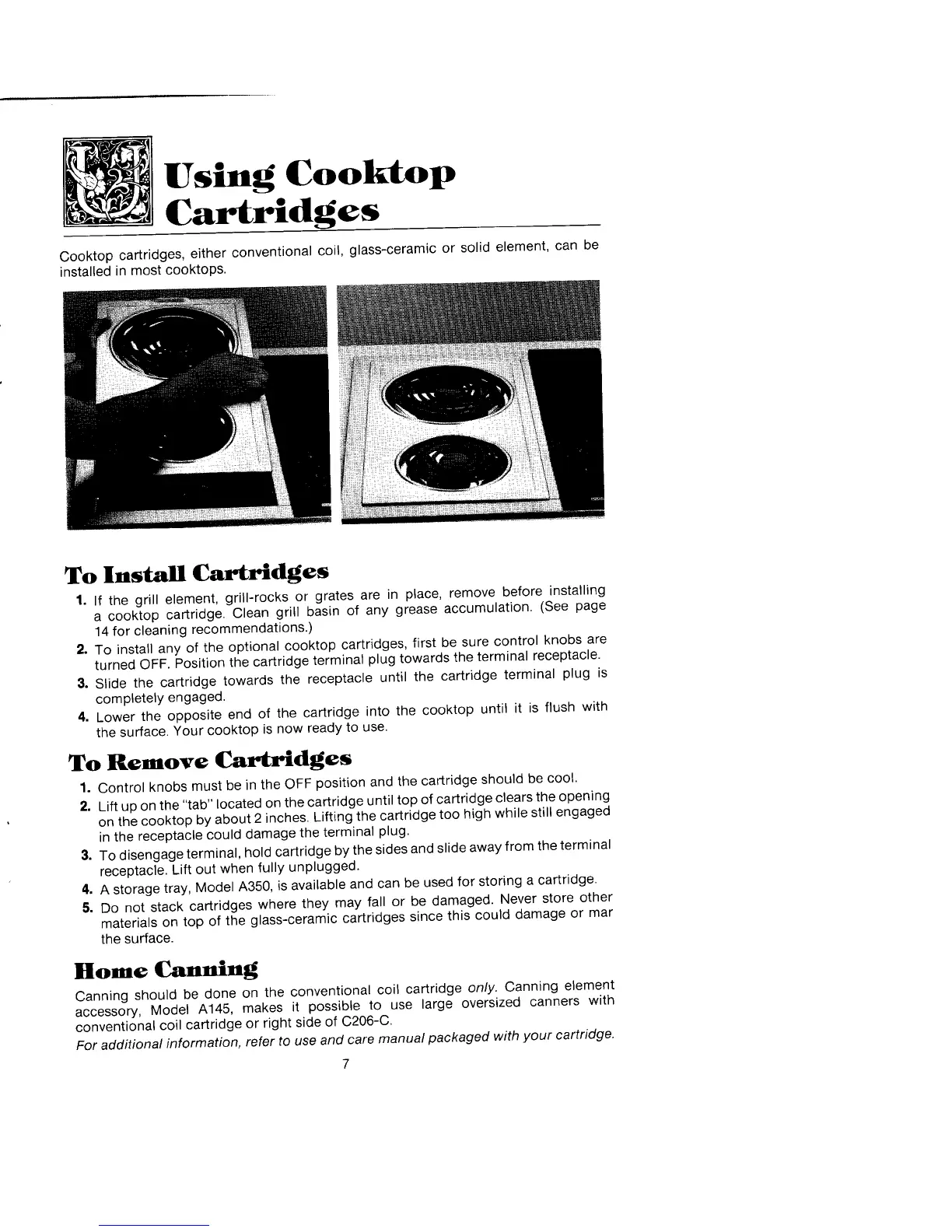

Using Cooktop
Cartridges
Cooktop cartridges, either conventional coil, glass-ceramic or solid element, can be
installed in most cooktops.
To Install Cartridges
1. If the grill element, grill-rocks or grates are in place, remove before installing
a cooktop cartridge. Clean grill basin of any grease accumulation. (See page
14 for cleaning recommendations.)
2. To install any of the optional cooktop cartridges, first be sure control knobs are
turned OFF. Position the cartridge terminal plug towards the terminal receptacle.
3. Slide the cartridge towards the receptacle until the cartridge terminal plug is
completely engaged.
4. Lower the opposite end of the cartridge into the cooktop until it is flush with
the surface. Your cooktop is now ready to use.
To Remove Cartridges
1. Control knobs must be in the OFF position and the cartridge should be cool.
2. Lift up on the "tab" located on the cartridge until top of cartridge clears the opening
on the cooktop by about 2 inches. Lifting the cartridge too high while still engaged
in the receptacle could damage the terminal plug.
3, To disengage terminal, hold cartridge by the sides and slide away from the terminal
receptacle. Lift out when fully unplugged.
4, A storage tray, Model A350, is available and can be used for storing a cartridge.
5. Do not stack cartridges where they may fall or be damaged. Never store other
materials on top of the glass-ceramic cartridges since this could damage or mar
the surface.
Home Canning
Canning should be done on the conventional coil cartridge only. Canning element
accessory, Model A145, makes it possible to use large oversized canners with
conventional coil cartridge or right side of C206-C.
For additional information, refer to use and care manual packaged with your cartridge.
7
