Jenny Science XENAX Xvi 75V8S User Manual

24
5.2.7 PLC I/O
Output
Signal
D-Sub
PLC Cable
PLC I/O
Source PNP: 24V/100mA, Sink NPN: open collect. 24V/400mA
Pin 1
white
Output 1 (0/24V)
Source PNP: 24V/100mA, Sink NPN: open collect. 24V/400mA
Pin 2
brown
Output 2 (0/24V)
Source PNP: 24V/100mA, Sink NPN: open collect. 24V/400mA
Pin 3
green
Output 3 (0/24V)
Source PNP: 24V/100mA, Sink NPN: open collect. 24V/400mA
Pin 4
yellow
Output 4 (0/24V)
Source PNP: 24V/100mA, Sink NPN: open collect. 24V/400mA
Pin 5
grey
Output 5 (0/24V)
Source PNP: 24V/100mA, Sink NPN: open collect. 24V/400mA
Pin 6
pink
Output 6 (0/24V)
Source PNP: 24V/100mA, Sink NPN: open collect. 24V/400mA
Pin 7
blue
Output 7 (0/24V)
Source PNP: 24V/100mA, Sink NPN: open collect. 24V/400mA
Pin 8
red
Output 8 (0/24V)
Input
24V Input, Ri 31k
Pin 17
white-grey
Input 1
24V Input, Ri 31k
Pin 18
grey-brown
Input 2
24V Input, Ri 31k
Pin 19
white-pink
Input 3
24V Input, Ri 31k
Pin 20
pink-brown
Input 4
24V Input, Ri 31k
Pin 21
white-blue
Input 5
24V Input, Ri 31k
Pin 22
brown-blue
Input 6
24V Input, Ri 31k
Pin 23
white-red
Input 7
24V Input, Ri 31k
Pin 24
brown-red
Input 8 (program Start)
24V Input, Ri 31k / Bit 0 binary coded
Pin 13
white-green
Input 9
24V Input, Ri 31k / Bit 1 binary coded
Pin 14
brown-green
Input 10
24V Input, Ri 31k / Bit 2 binary coded
Pin 15
white-yellow
Input 11
24V Input, Ri 31k / Bit 3 binary coded
Pin 16
yellow-Brown
Input 12
MODE >=10 Input 9-12, binary coded, for program number
1-15, input 8 fix dedicated for program start (edge
triggered)

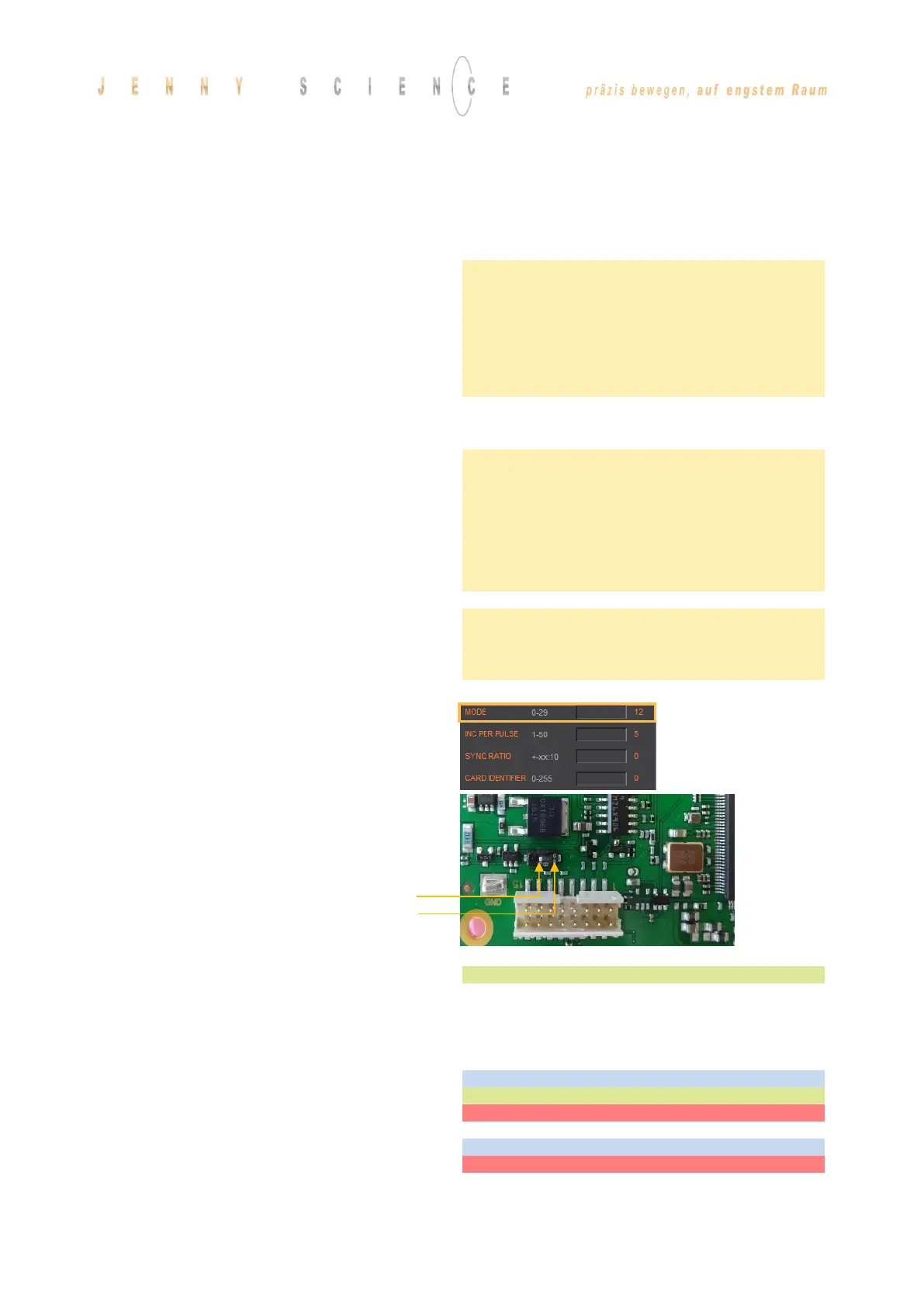

Enabling Power Stage
Activate the function with DIP-switch
DIP switch OFF
HW power stage enabling with 24V on Pin 9
Pin 9
black
Enable PWR / Input
DIP switch ON
Input open or 0V = power stage blocked
Always enabling power stage, Pin 9 inactive
(Standard configuration)
2A
Pin 10
violet
GND
24V / 80mA
Pin 11
Grey pink
Pulse Output (not implemented)
24V / 200mA (total Pin 12+Pin 26)
Pin 12
Red-blue
24V Output
2A
Pin 25
White-black
GND
24V / 200mA (total Pin 12+Pin 26)
Pin 26
Brown-black
24V Output
OFF
ON
