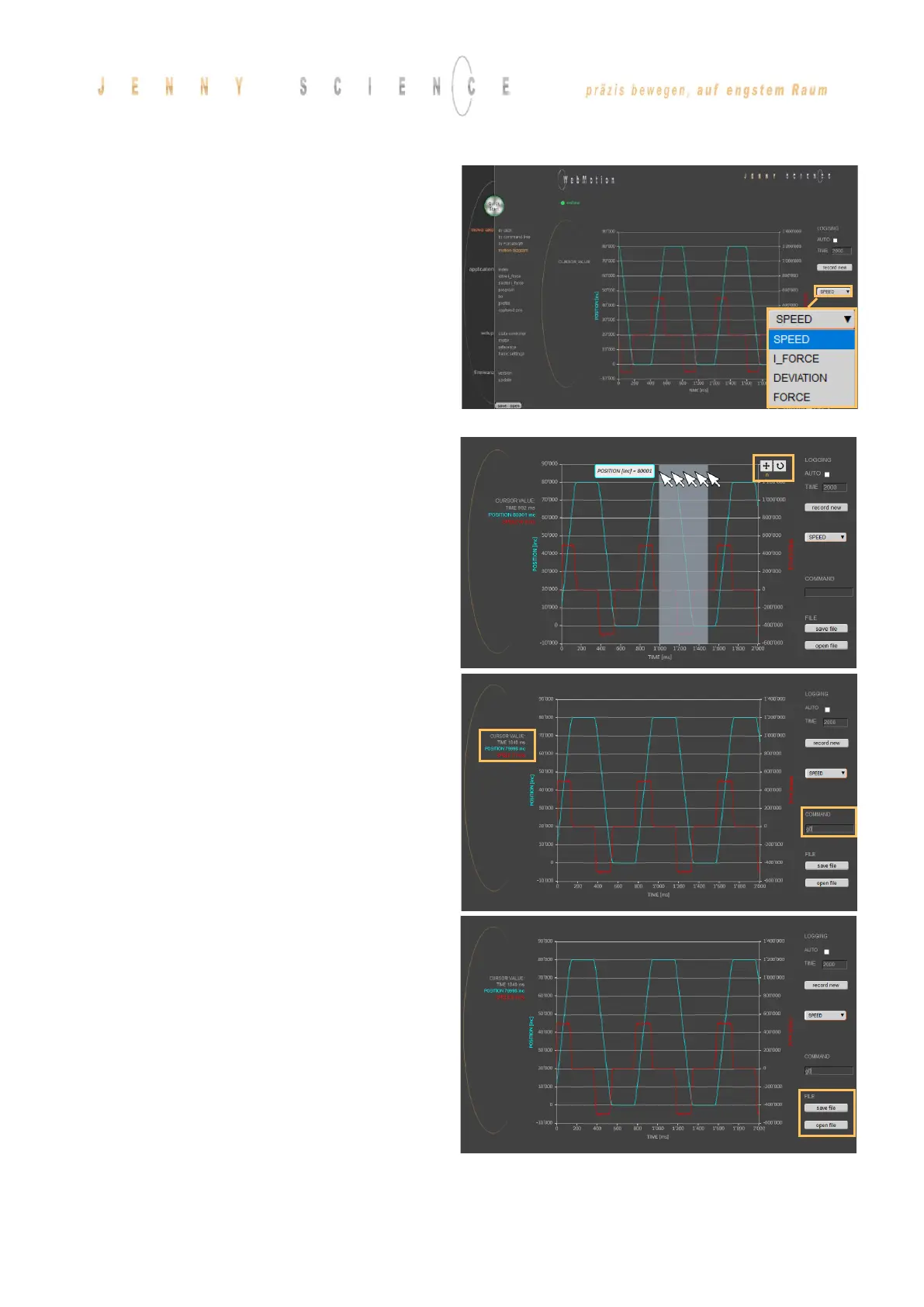

SPEED
Records speed in increments in relation to the
position.
IFORCE
Records current in milliampere in relation to the
position.
DEVIATION
Records position deviation in increments.
FORCE
Records the Force in Newton in relation to the
position (only with Signateq® possible).
Zoom
Zoom of curve section on time axis.
By dragging the mouse over a time section, this part
can be zoomed.
The "Reset" button undoes the zoom action. With the
"Pan" key the time axis can be moved with the
mouse.
Command
Enter command e.g. starting position of the motor,
REF, G0, drive on a position or repeat reverse (RR).
CURSOR VALUE
Shows the current values at the time of the cursor in
the recording.
safe file
Saves the motion profile on the computer.
open file
Shows a motion profile which was saved on the
computer. The upload has no influence on the
parameters of the servo controller.
Pan
Reset
