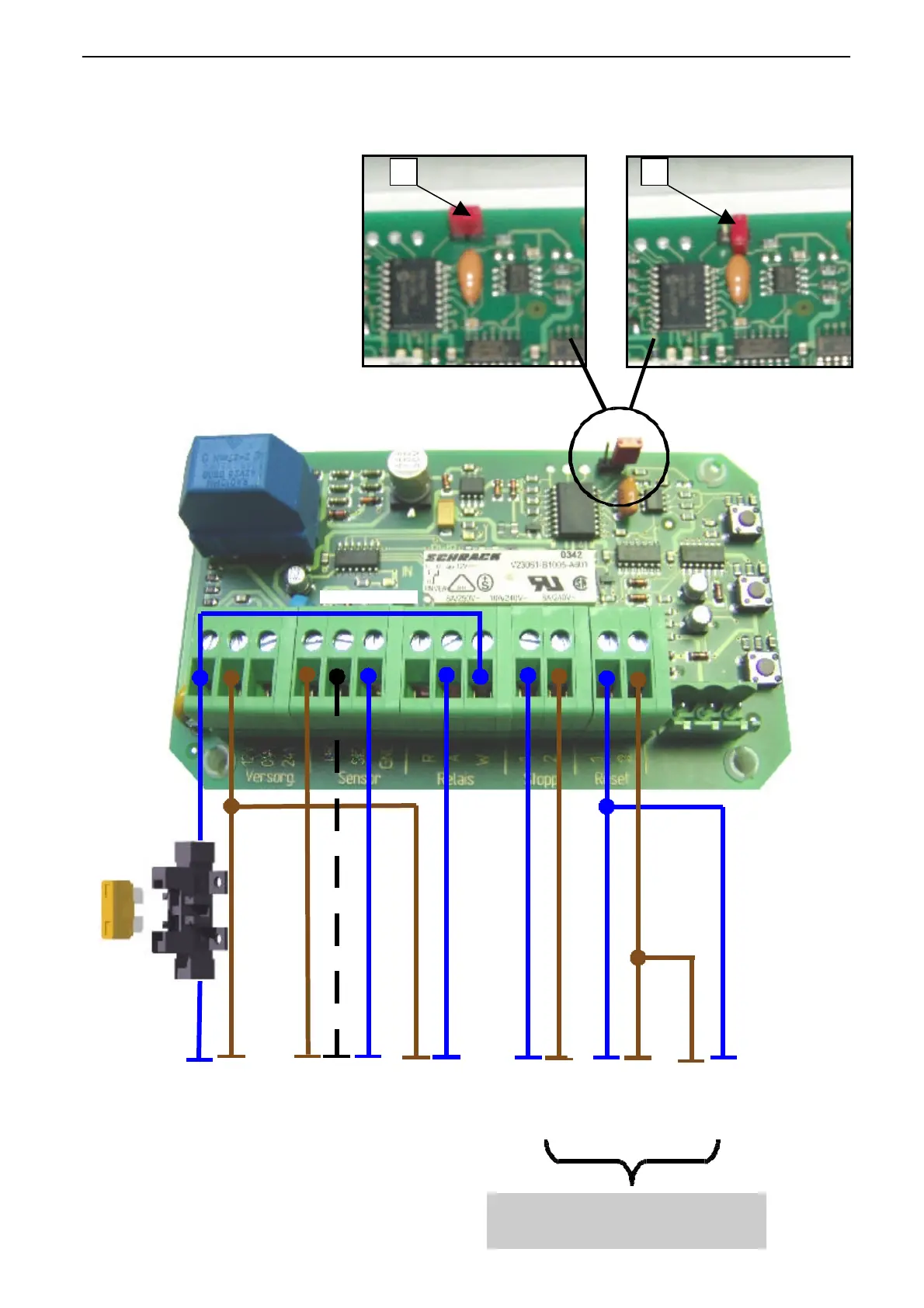

Electrical connexion for automatic overload regulator
Electrical connexion for automatic overload regulator
DC 104 - 12V
DC 104 - 12V
With magnetic valve closed when de-energised
work blue
Sensor
blue
+ 12V blue
- 0V brown
Current
Pushbutton
at the hopper
Buzzer
at the hopper
Buzzer
at the hopper
IN black
- 0V blue
- 0V brown
brown
brown
blue
blue bridged circuit
Only connected in case of
electric re-set buttons or pushbuttons
Jumper (1) bridged, without
electric re-set button or pushbuttons
Jumper (1) non-bridged, with
electric re-set button or pushbuttons
With the Jumper (1) the electric re-set
bottons or pushbuttons can be activated or
disactivated. (Connexions X4-Stop and X5-
Reset)
Information
The automatic overload regulation does not
work, if the machine is not equipped with
electric re-set buttons or pushbuttons , but
the re-set buttons or pushbuttons are
activated with the Jumper (1).
Attention!
Only in case of change or retrofitting of
electric re-set buttons or pushbuttons:
If the machine is equipped with these
buttons, it must not be disactivated!
1 1
Magnetic-
valve
+ 12V brown
Flat-fuse
FKS 7,5A (brown)
blue
brown
