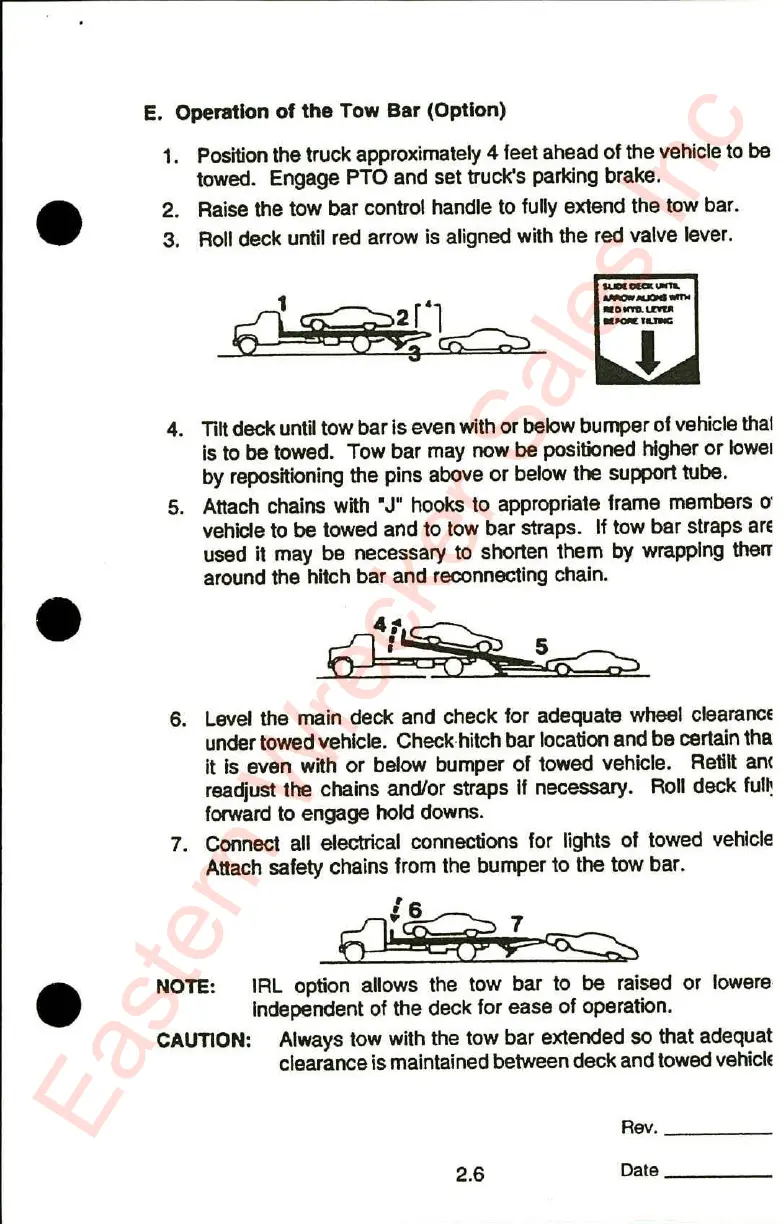

E. Operation of the Tow Bar (Option)
1. Position the truck approximately 4 feet ahead of the vehicle to be
towed. Engage PTO and set truck's parking brake.
2. Raise the tow bar control handle to fully extend the tow bar.
3. Roll deck until red arrow is aligned with the red valve lever.
1~R6
bJ~
•...••
_-
---..--
.OtnO.LnVI
.'O'II:'U-:
•
•
4. TIlt deck until tow bar Is even with or below bumper of vehicle thai
Is to be towed. Tow bar may now be positioned higher or Iowel
by repositioning the pins above or below the support tube.
5. Attach chains with •J" hooks to appropriate frame members
0
vehicle to be towed and to tow bar straps. If tow bar straps arE
used it may be necessary to shorten them by wrapping therr
around the hitch bar and reconnecting chain.
~ 5?<??
6. Level the main deck and check for adequate wheel clearancE
under towed vehicle. Check hitch bar location and be certain tha
It is even with or below bumper of towed vehicle. Retill am
readjust the chains and/or straps if necessary. Roll deck ful~
forward to engage hold downs.
7. Connect all electrical connections for lights of towed vehicle
Attach safety chains from the bumper to the tow bar.
~7
~:;O;;;_¥';-'l"i~""""'-
NOTE: IRL option allows the tow bar to be raised or lowere
independent of the deck for ease of operation.
CAUTION: Always tow with the tow bar extended so that adequat
clearance is maintained between deck and towed vehiclE
Rev. _
2.6
Date _
