Jet-tech F18 - Electrical Sequence: Heat Cycles; Heat Cycle Operations

24

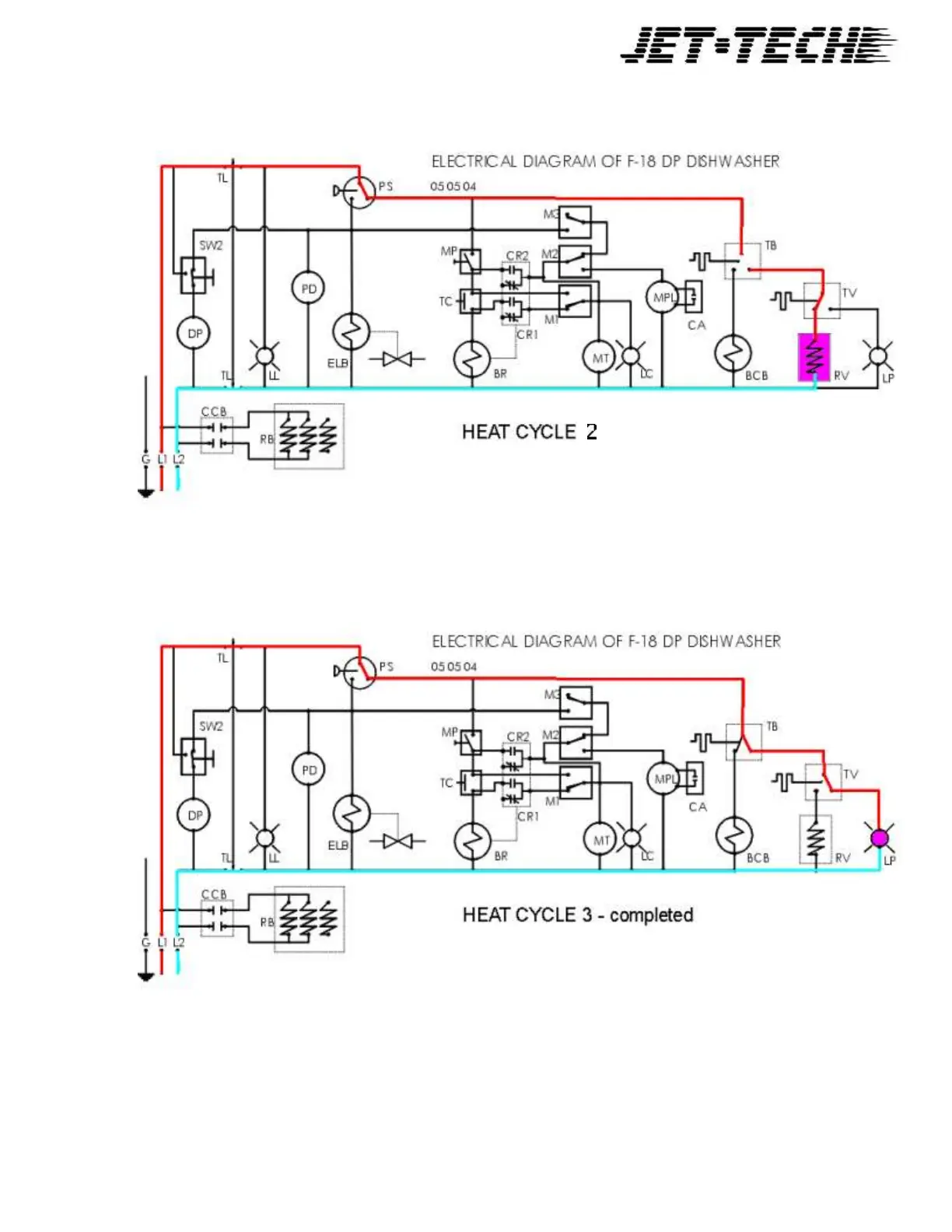

When the Booster thermostat TB is satisfied, it energizes the wash tank heater element RV by the
wash thermostat TV.
When the thermostat in the wash tank is satisfied, it energizes the indicator light LP.
