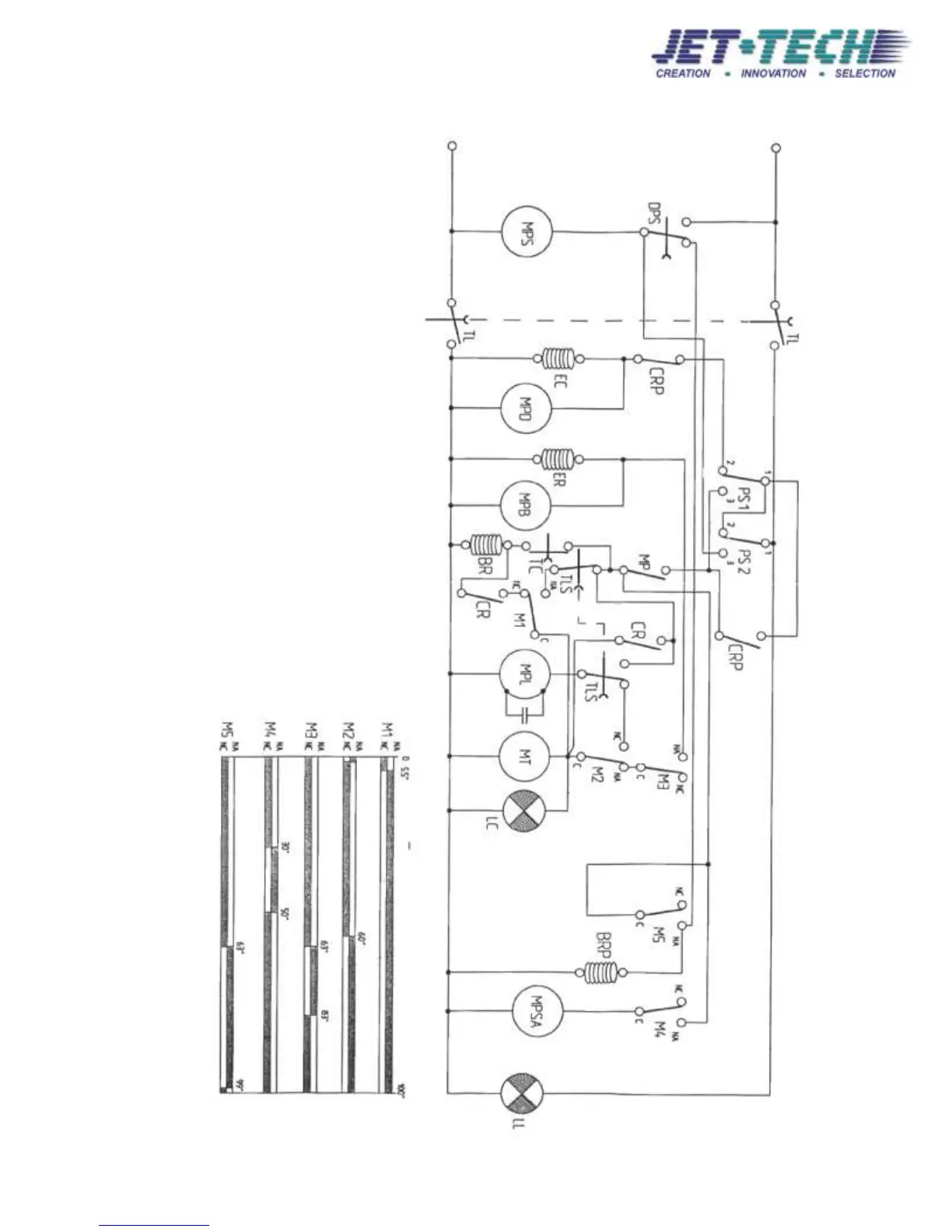

Jet-tech X-32 - Electrical Schematics

Electrical Schematics
DPS - Drain pump By-pass switch
MPS - Drain Pump
TL - Main Power switch
PS1, PS2 - Pressure switches
ER - Rinse solenoid valve
EC - Fill solenoid valve
MPD - Detergent pump
MPB - Rinse additive pump
MPSA - Sanitizer pump
MP - Door switch
TLS - Deliming option switch
CRP - Contact from relay
MT - Timer motor
M1, M2, M3, M4, M5 - Timer
contact
LC - Light, Timer cycle
MPL - Wash pump
BR - Relay coil
TC - Start switch
CR - Contactor relay swicth
LL - Light, Main power
BRP - Relay coil
