Sanitary inner “deep-drawn” wash tank
Independent Chemical Pumps
Construction features
Technical Features
Body , external housing, wash tank, and all
chassis components in brushed stainless steel
AISI 304 18/8
Reduced operating noise of 58 DbA due to
utilization of double-wall insulated panels
Upper and lower wash and rinse jets on
revolving arms constructed of fiberglass; easy
to remove and clean without the need for tools
Safety micro-switch on the door to interrupt
wash pump action
Individual and adjustable variable speed
cm)
Rack capacity: 19.75" x 19.75" (50 cm x 50
cm) (one open combination rack and on peg
dish rack supplied)
Complete cycle: 160 seconds (145 second
Wash & 15 second Rinse)
Wash tank capacity; 3.17 US gallon (12
liters)
Wash temperature; 140F recommended,
Supply dependant (no heaters)
Power supply: 110 volts 60Hz 7 Amps
peristaltic pumps for: detergent, sanitizer and
Motor pump; 0.75 H.P. With Clipson at
rinse-additive.
320F (160C)
Possibility of built-in or free standing
Maximum Power rating; 550 Watts
installation
Water consumption per cycle; 1.5 U.S.
Standard equipment includes insulated,
Gallons (5.7 liters)
stainless steel top & side panels
working pressure; 25 P.S.I. (Dynamic)
Wash tank protected with double filters.
Door opening with overall clearance of 14.25
in (36cm)
Automatic fill and water level regulation tank
Slide-out front control panel provides easy
access for service.

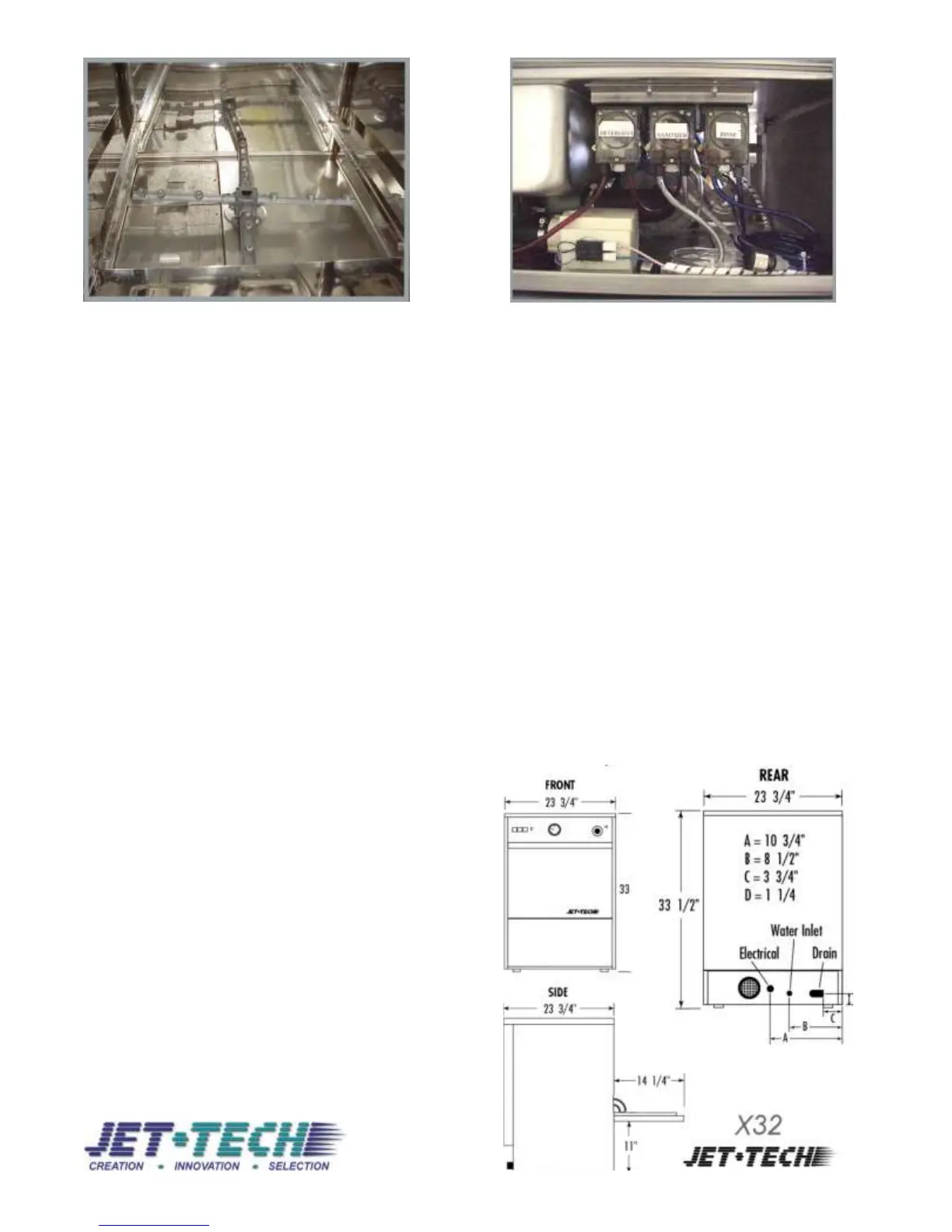

Overall dimensions: height: 33.5 in. (85 cm)
Width 23.75 in. (60 cm) Depth: 23.75 in. (60
JET TECH SYSTEMS CORP.
TEL:
(514)
737
9701
FAX
(514)
342
3854
1
888
275
4538
WWW.JET-TECH.COM
SALES@JET-TECH.COM
