Jet BD-920N - Page 36

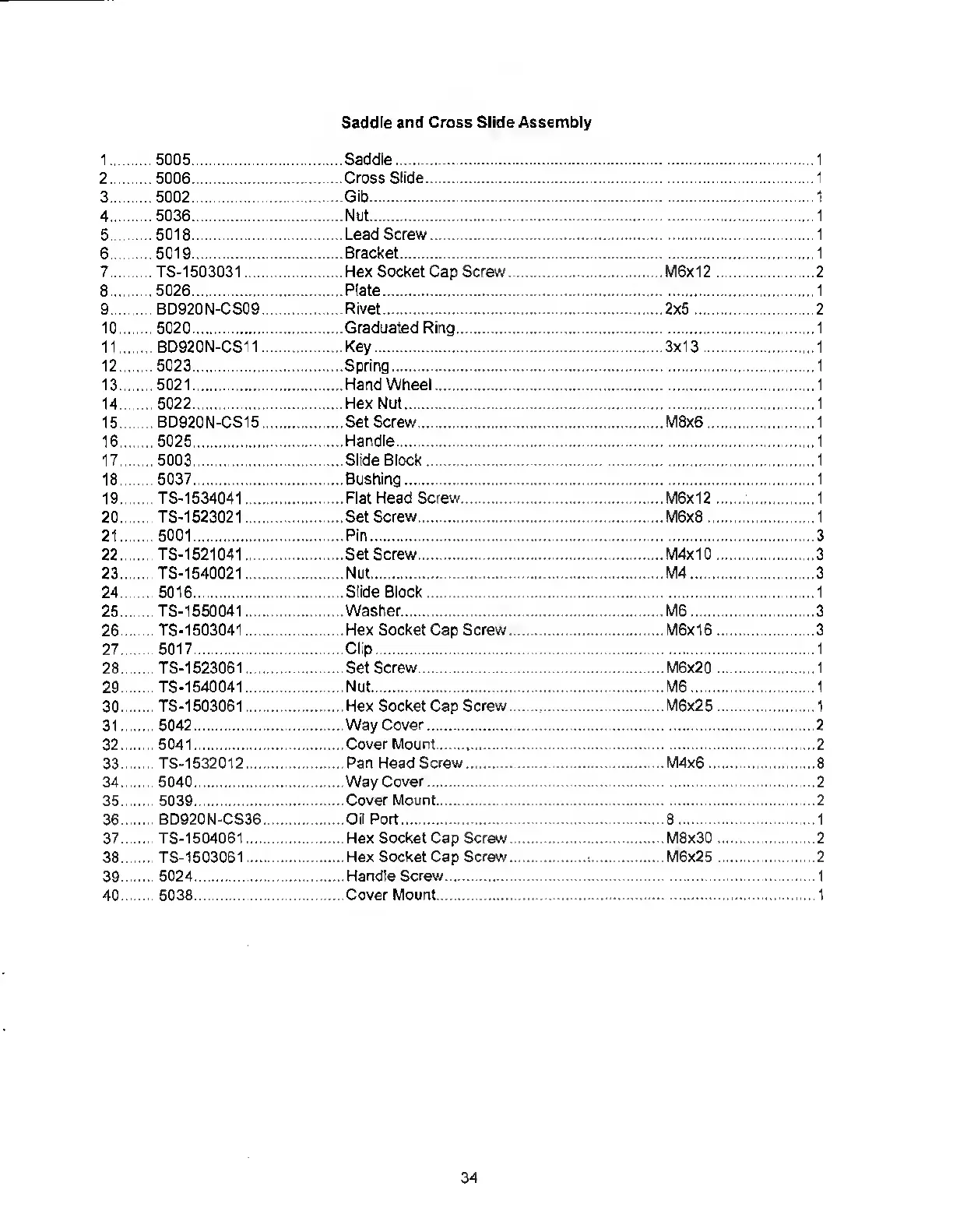

Saddle and Cross Slide Assembly
1 .
2 .
3.
4.
5005 .Saddle.
5006 .Cross Slide.
5002.Gib.
5036.Nut.
y.
6 ...
... yu io.
. 5019.
.Lcau ou cw.
.Bracket.
. 1
.1
7. ... TS-1503031. .Hex Socket Cap Screw. .M6x12. .2
8
5026 Plate
1
9.
... BD920N-CS09. .Rivet. .2x5. .2
10 ...
... 5020. .Graduated Ring.
.1
11... ... BD920N-CS11.
.Key.'.. .3x13.
.1
12... ...5023.
.Spring.
.1
13...
... 5021. .Hand Wheel. .1
14 .
... 5022. .Hex Nut. .1
15
. BD920N-CS15. . Set Screw. .M8x6.
.1
16 5025 . .Handle.
.1
17....
... 5003.
.Si de Block. .1
18....
5037. .Bushing.
.1
19....
...TS-1534041.
.Flat Head Screw.
.M6x12. .1
20.... . TS-1523021. .Set Screw. .M6x8. .1
21 . 5 001.Pin.3
22 .TS-1521041.Set Screw.M4x10.3
23 .TS-1540021.Nut.M4.3
24 . 5016.Slide Block.1
25 .TS-1550041.Washer.M6.3
26 .TS-1503041.Hex Socket Cap Screw.M6x16.3
27 . 5017.Clip.1
28 .TS-1523061.Set Screw.M6x20.1
29 .TS-1540041.Nut.M6.1
30 .TS-1503061.Hex Socket Cap Screw.M6x25.1
31 . 5 042.Way Cover.2
32 . 5041.Cover Mount.2
33 .TS-1532012.Pan Head Screw.M4x6.8
34 . 5040.Way Cover.2
35 . 5039.Cover Mount.2
36 .BD920N-CS36.Oil Port.8.1
37 .TS-1504061.Hex Socket Cap Screw.M8x30.2
38 .TS-1503061.Hex Socket Cap Screw.;.M6x25.2
39 . 5024.Handle Screw.1
40 . 5038.Cover Mount.1
34
