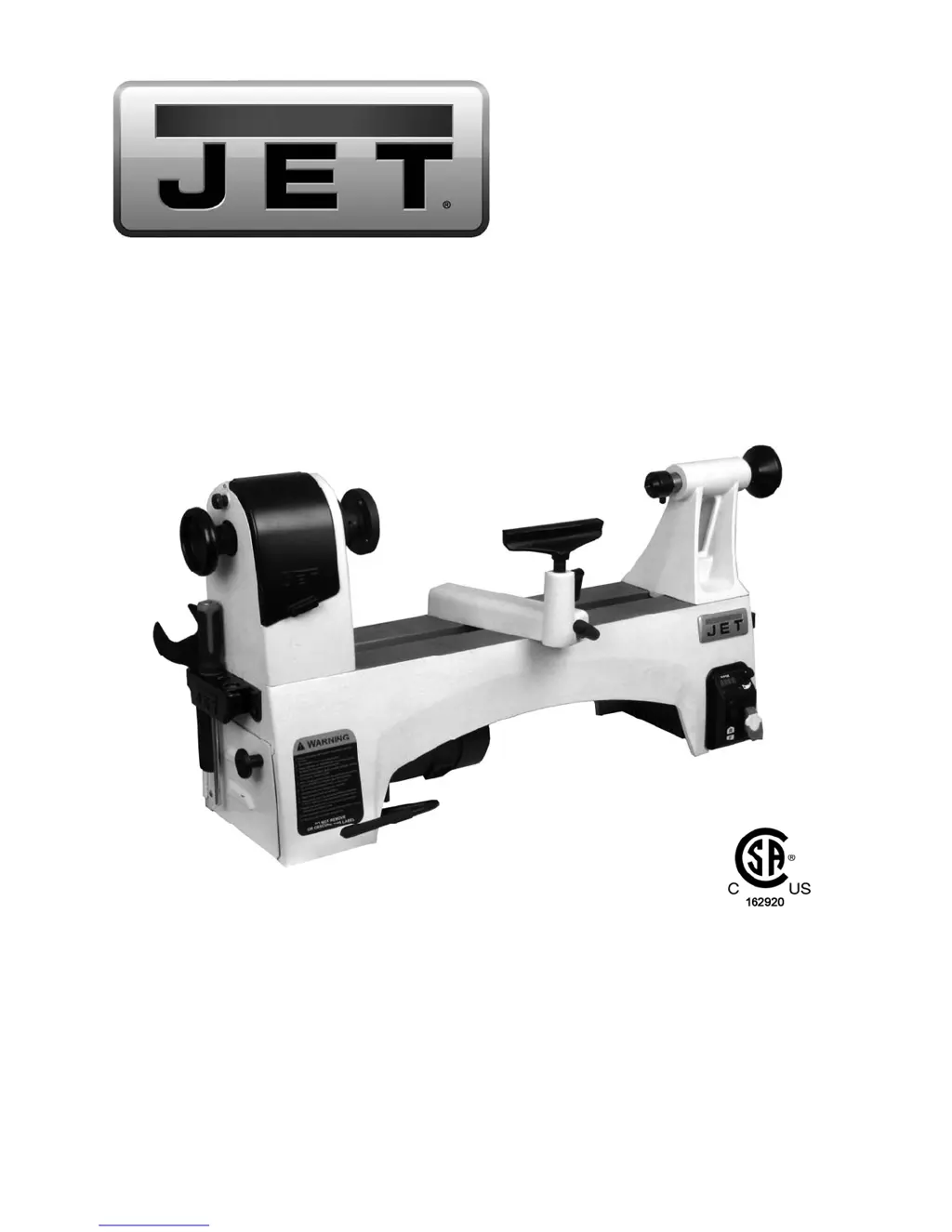

Operating Instructions and Parts Manual

12x21-inch EVS Woodworking Lathe

Model JWL-1221VS

WALTER MEIER (Manufacturing) Inc.

427 New Sanford Road

LaVergne, Tennessee 37086 Part No. M-719200

Ph.: 800-274-6848 Revision B 03/2013

www.waltermeier.com Copyright © 2013 Walter Meier (Manufacturing) Inc.

Table of Contents

Other manuals for Jet JWL-1221VS

Assembly Instructions And Parts List2 pages

Operating Instructions15 pages

Questions and Answers:

J
Jennifer BakerJul 27, 2025
What to do if my Jet Lathe motor or spindle stalls?
- J
  joseph29Jul 27, 2025
  If your Jet Lathe motor or spindle stalls, several factors could be at play. It might be due to an excessive cut, in which case you should reduce the depth of cut. Another cause may be improper belt adjustment, or a worn or broken belt; adjust or replace the belt as needed. Check if the motor brushes are worn or damaged and replace them if necessary. Finally, worn spindle bearings or a worn motor can also cause this issue, so consider replacing the bearings or the motor.
F
Frank LittleAug 1, 2025
Why does my Jet Lathe have excessive vibration?
- M
  millerkatrinaAug 2, 2025
  Excessive vibration in your Jet Lathe can stem from several issues. The workpiece might be warped, out of round, have a major flaw, or was improperly prepared for turning; correct this by planing or sawing the workpiece, or discard it and use a new one. Worn spindle bearings or a worn drive belt can also cause vibration, so replace them if needed. Ensure the motor mounting fasteners are tight and that the lathe is placed on a flat surface.
M
Mark ClarkAug 7, 2025
What to do if my Jet Lathe tools tend to grab or dig in?
- G
  gerald09Aug 7, 2025
  If tools tend to grab or dig in while using your Jet Lathe, the tools may be dull, so keep tools sharp. The tool support might be set too low or too far from the workpiece; reposition the tool support height and bring it closer to the workpiece. Also, ensure you are using the correct tool for the operation.
S
ssaundersAug 14, 2025
Why does the Jet JWL-1221VS Lathe motor fail to develop full power?
- M
  Miss Jacqueline GreenAug 14, 2025
  If the Jet Lathe motor isn't reaching full power, the power line may be overloaded, so correct the overload condition. Undersized wires in the power supply system could also be the cause, so increase the supply wire size. In some cases, a worn motor can be the culprit, requiring a motor replacement.
P
Parker StewartAug 20, 2025
What to do if the tailstock moves when applying pressure on my Jet JWL-1221VS?
- J
  Julie HolmesAug 20, 2025
  If the tailstock moves when applying pressure on your Jet Lathe, the cam lock nut may need adjusting; tighten the cam lock nut. Another possibility is that the lathe bed and tailstock mating surfaces are greasy or oily; remove the tailstock and clean the surfaces with a cleaner/degreaser, then re-apply a light coat of oil to the lathe bed surface.

Jet JWL-1221VS Specifications

Weight and Dimensions

assembled dimensions	119 x 229 x 719 mm
net weight	8.5 kg
shipping dimensions	760 x 300 x 165 mm
shipping weight	10.5 kg

Summary

1.0 Warranty and Service

Warranty Duration

Details warranty duration based on product type and usage.

Warranty Coverage

Describes what defects are covered under the warranty.

Warranty Period

Specifies warranty duration as per product literature.

Warranty Exclusions

Lists exclusions like misuse, accidents, and commercial use of WW products.

Service Procedure

Outlines the procedure for obtaining warranty repair or replacement service.

Warranty Limitations

Details limitations on implied warranties and liability for damages.

3.0 Safety Warnings

General Safety Guidelines

Provides critical safety guidelines for operating the woodworking lathe.

5.0 Features and Nomenclature

Lathe Component Identification

Identifies and labels all major components of the JWL-1221VS lathe.

6.0 Specifications

Technical Specifications

Details technical specifications including motor, capacities, dimensions, and materials.

7.0 Setup and Assembly

Mounting and Initial Setup

Guides on mounting the lathe, installing tool caddies, and attaching faceplate and centers.

8.0 Electrical Connections

Grounding and Extension Cords

9.0 Adjustments

Tool Rest and Tailstock Adjustments

Speed Change and Index Pin

10.0 Operating Controls

Control Panel Functions

11.0 Operation

Pre-Operation Checks and Tools

Spindle Turning

Cutting Techniques

11.4 Face Plate and Bowl Turning

Mounting Stock for Bowls

Bowl Turning Process

12.0 Maintenance

General Maintenance and Component Care

13.0 Recommended Lathe Speeds

Lathe Speed Recommendations

15.0 Troubleshooting

Common Problems and Solutions

Offers solutions for common problems encountered with the lathe.

Ordering Replacement Parts

16.1 Bed Assembly

Bed Assembly Parts List

16.2 Headstock Assembly

Headstock Assembly Parts List

16.3 Controller Assembly

Controller Assembly Parts List

17.0 Electrical Connections

Electrical Wiring Diagram
