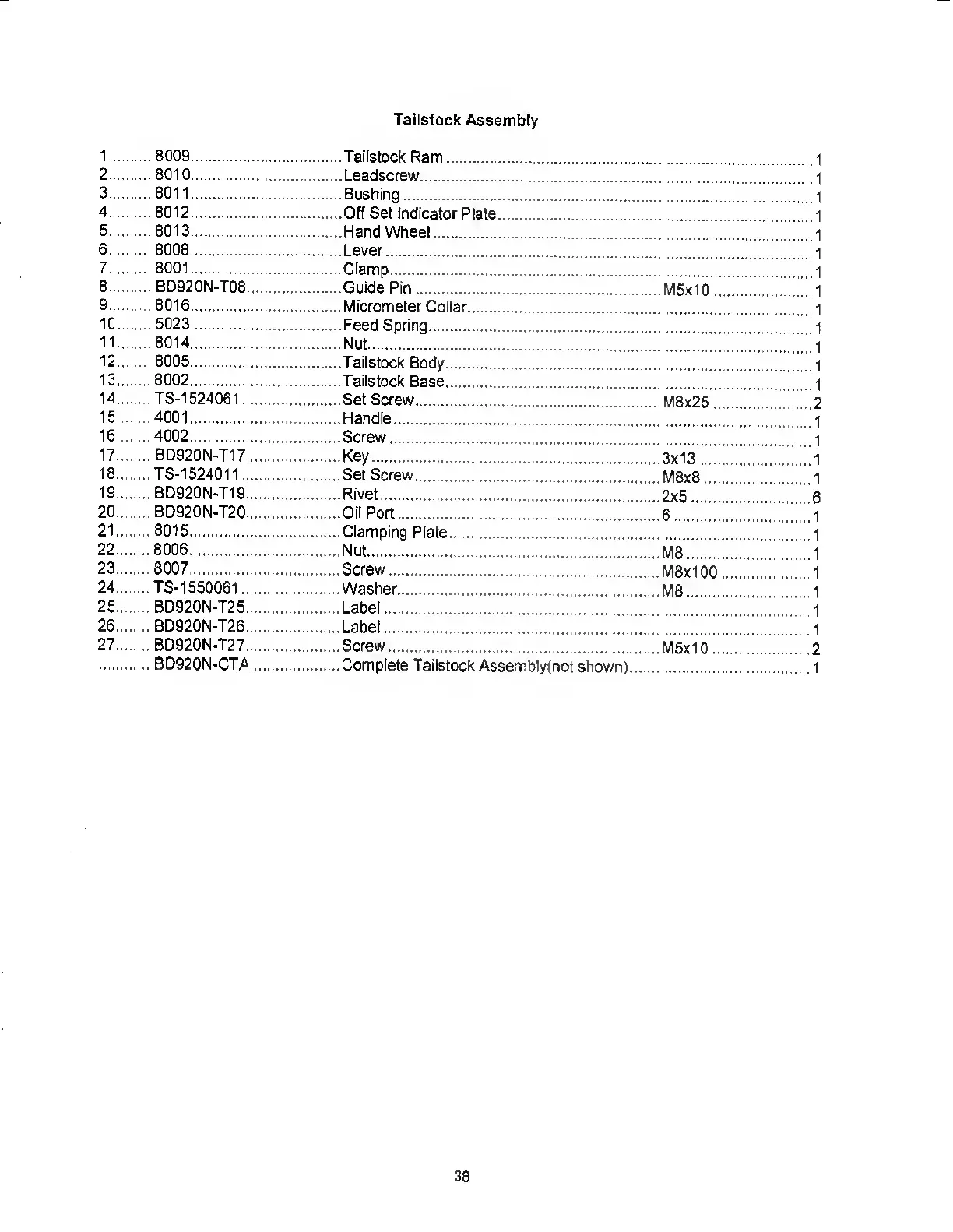

Jet BD-920N - Page 40

Tailstock Assembly
1 . ... 8009.
.Tailstock Ram. 1
2 . ... 8010.
.Lead screw
1
3. ... 8011.
.Bushing.
. 1
1
4.
...8012.
.Off Set Indicator Plate
1
5.
... 8013.
.Hand Wheel.
.1
6 .
... 8008. .Lever.
.1
7. ... 8001.
.Clamp.
.1
8 . ... BD920N-T08.
.Guide Pin.
M5x10
1
9.
8016.
.Micrometer Collar. 1
10 ... ..5023.
.Feed Spring
11 . ... ... 8014.
.Nut.
1
12 ... ... 8005.
.Tailstock Body.
.1
13... ... 8002.
.Tailstock Base.
1
14...
TS-1524061.
.Set Screw.
M8x25
15... ...4001.
.Handle.
16.... ...4002.
.Screw. 1
17....
... BD920N-T17.
. Key.
3x13
1
18..
. TS-1524011.
.Set Screw.
M8x8
1
19...
... BD920N-T19.
.Rivet.
2x5
20 ..
... BD920N-T20.
.Oil Port.
6
i
21 . . . ... 8015.
.Clamping Plate ....
1
22 ...
.8006.
.Nut.
M8
23 ... .8007.
.Screw.
M8xinn
1
24...
...TS-1550061.
.Washer.
M8.
. 1
.1
25...
... BD920N-T25.
.Label.
1
26...
... BD920N-T26.
.Label. i
27....
... BD920N-T27.
.Screw.
M5x10
2
... BD920N-CTA.
.Complete Tailstock Assemblyfnot shown)...
.1
