ASSEMBLY INSTRUCTION:

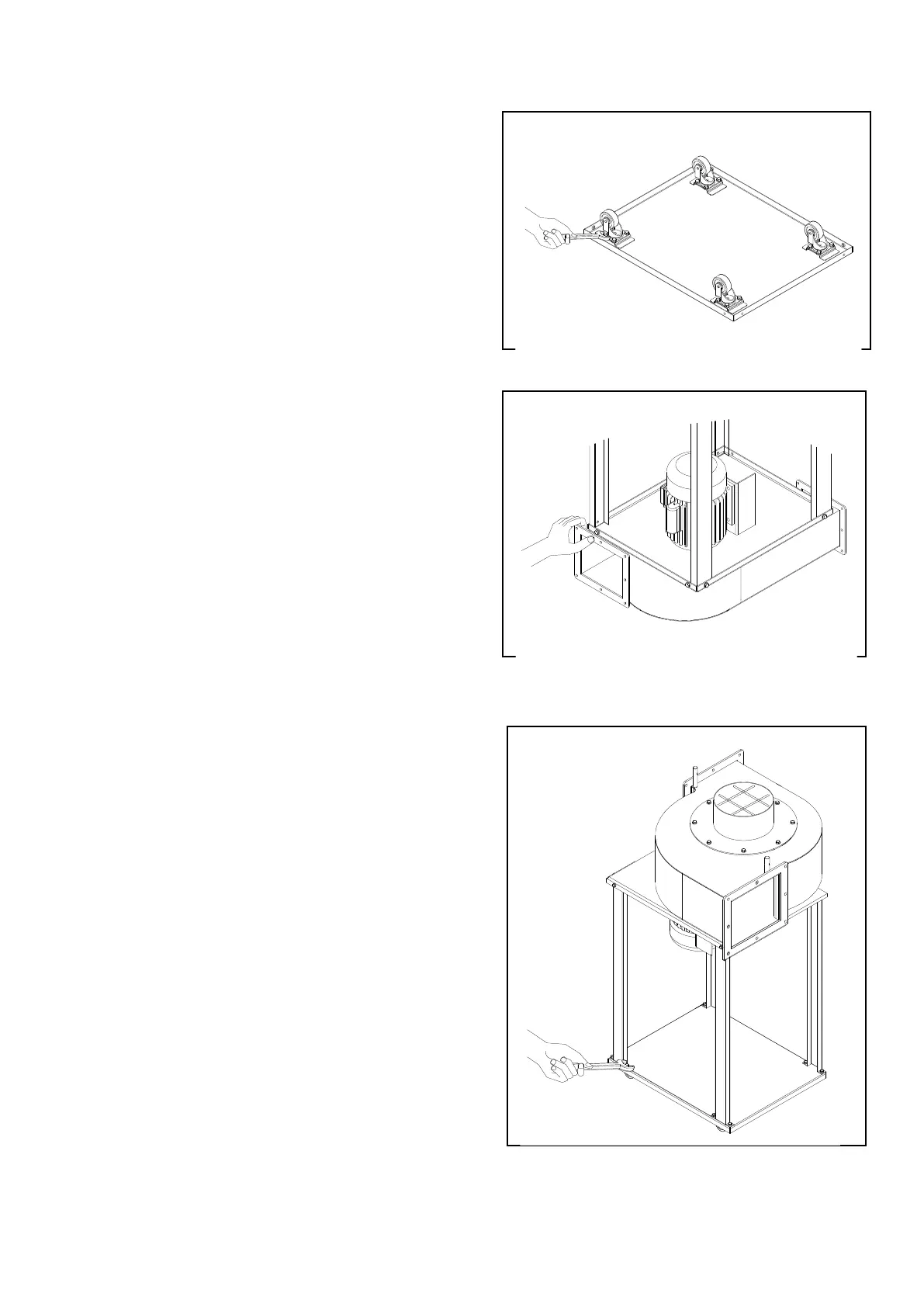

STEP 1:
To assemble, position the main base upside down
and locate the casters so they are with in easy reach.
Mounting the casters to the main base using sixteen
5/16” x 1/2” hex. bolts provided. (See FIG. 1)
(FIG.1)
STEP 2:
Place the collector body and fan motor assembly
upsidedown. Laying up the four legs to the double
side byusing eight 5/16” x 1/2” hex. bolt provided.
Tighten all screws fasten and securely. (See FIG. 2)
(FIG.2)
STEP 3:
Connecting the collector body and fan motor assembly
with the main base together by using four 5/16” x 1/2”
hex. bolts provided. Fasten the screws tightly.
(See FIG. 3)
(FIG.3)
To Next Page
