Jet HVBS-7MW Operating Instructions And Parts Manual

22

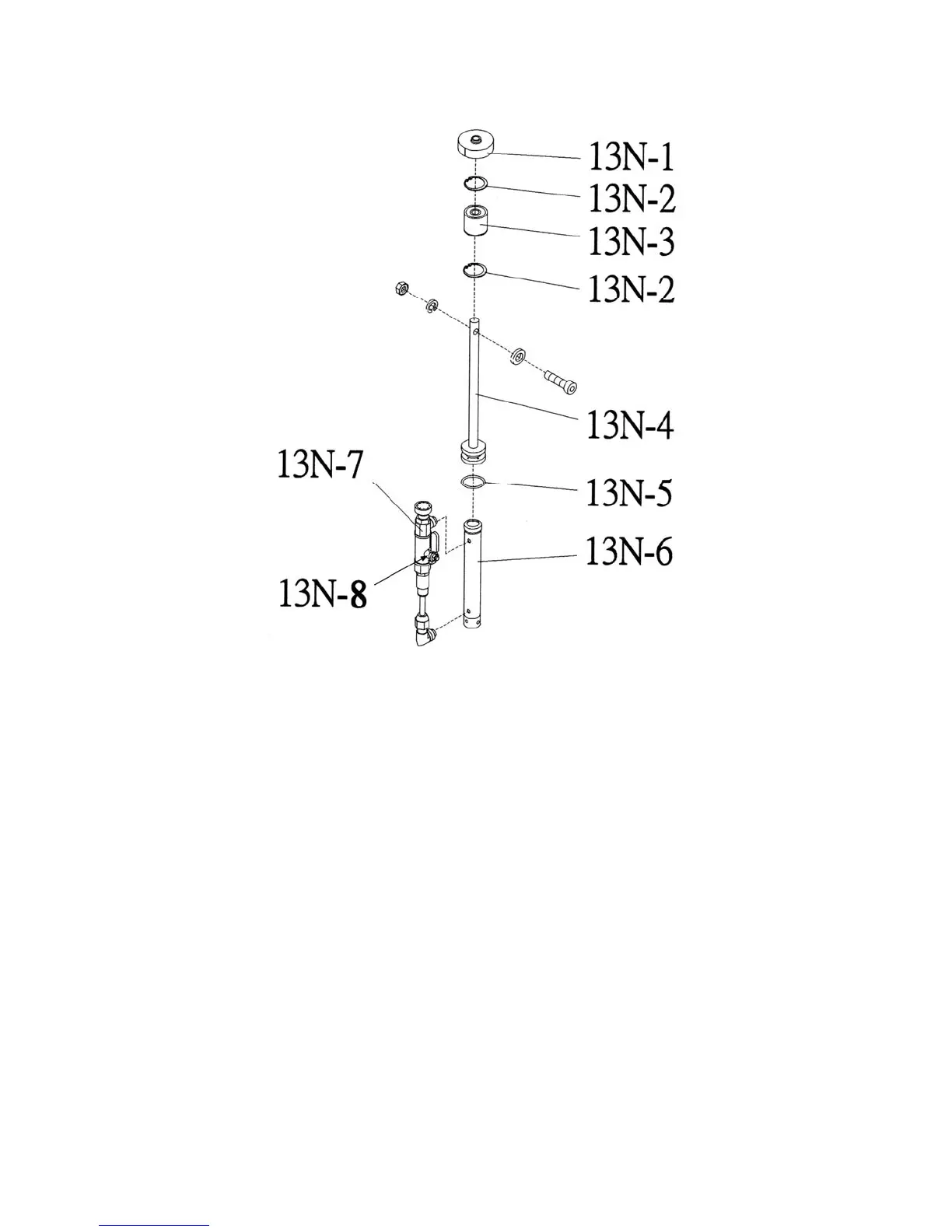

10.2.1 HVBS-7MW Cylinder Assembly – Exploded View
10.2.2 HVBS-7MW Cylinder Assembly – Parts List
Index No Part No Description Size Qty
13N ......... HVBS17MW-13N ...........Cylinder Complete Assembly (S/N: 01028161 and higher) ............... 1
................ HVBS17MW-13N-1 ........Dust Cover ................................................................................... 1
................ HVBS17MW-13N-2 ........C-Ring ......................................................................................... 2
................ HVBS17MW-13N-3 ........Oil Seal ........................................................................................ 1
................ HVBS17MW-13N-4 ........Oil Piston ..................................................................................... 1
................ HVBS17MW-13N-5 ........O-Ring ......................................................................................... 1
................ HVBS17MW-13N-6 ........Cylinder Body ............................................................................... 1
................ HVBS17MW-13N-7 ........Oil Pressure Regulator .................................................................. 1
................ HVBS17MW-13N-8 ........Open/Close Valve ......................................................................... 1
