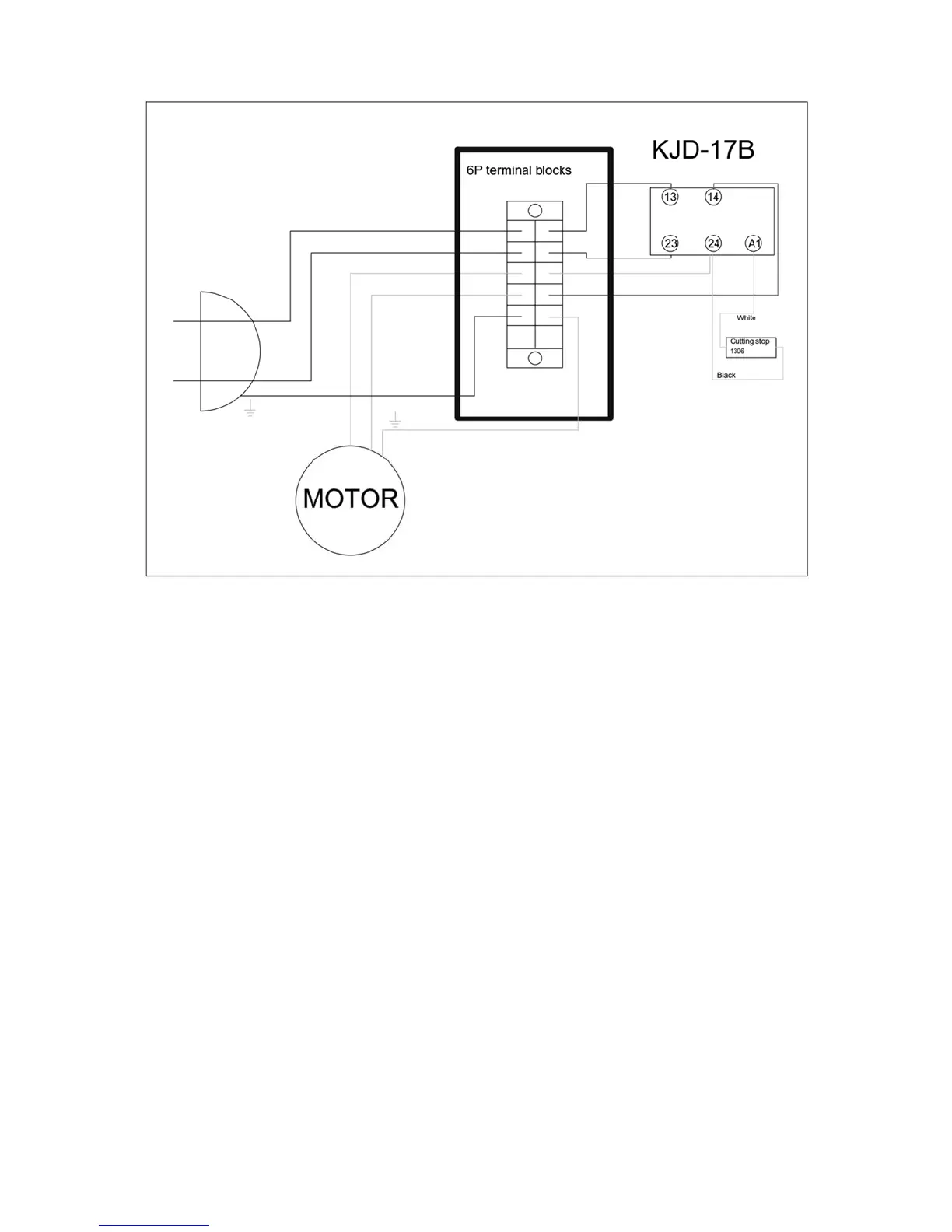

Index No Part No Description Size Qty
68-2 ........... TS-2361081 .................. Lock Washer ........................................................ M8 ................................. 4
68-3 ........... TS-1550061 .................. Flat Washer .......................................................... 8x18x2 mm ................... 4
69 .............. TS-1504071 .................. Hex Socket Cap Screw ........................................ M8-1.25x35L ................. 2
70 .............. TS-1550061 .................. Flat Washer .......................................................... 8x25x3 mm ................... 2
70-1 ........... TS-2361081 .................. Lock Washer ........................................................ M8 ................................. 2
71 .............. HVBS-10-DMW-71 ........ Aluminum Miter Plate ........................................... ...................................... 1
71-1 ........... TS-1503051 .................. Hex Socket Cap Screw ........................................ M6-1.0x20L ................... 4
71-2 ........... TS-2361061 .................. Lock Washer ........................................................ M6 ................................. 4
71-3 ........... TS-1550041 .................. Flat Washer .......................................................... 6x16x2 mm ................... 4
72 .............. HVBS-10-DMW-72 ........ Movable Jaw Mount ............................................. ...................................... 1
72-1 ........... HVBS-10-DMW-72-2 ..... Spacer .................................................................. ...................................... 1
72-2 ........... HVBS-10-DMW-72-2 ..... Vise Lock Knob .................................................... ...................................... 1
72-3 ........... TS-1504091 .................. Hex Socket Cap Screw ........................................ M8-1.25x45L ................. 2
72-4 ........... TS-2361081 .................. Lock Washer ........................................................ M8 ................................. 2
72-5 ........... TS-1550061 .................. Flat Washer .......................................................... 8x16x1.0 mm ................ 2
73 .............. HVBS-10-DMW-73 ........ Movable Jaw Assembly ........................................ ...................................... 1
74 .............. HVBS-10-DMW-74 ........ Bed ....................................................................... ...................................... 1
75-4 ........... TS-1504041 .................. Hex Socket Cap Screw ........................................ M8x20 ........................... 2
75-5 ........... TS-2361081 .................. Lock Washer ........................................................ M8 ................................. 2
75-6 ........... TS-0680031 .................. Flat Washer .......................................................... 5/16” .............................. 2
75 .............. HVBS-10-DMW-75 ........ Bed Support ......................................................... ...................................... 2
75-1 ........... F005670 ........................ Hex Socket Cap Screw ........................................ M12-1.75x15L ............... 2
75-2 ........... TS-2361121 .................. Lock Washer ........................................................ M12 ............................... 2
75-3 ........... TS-2360121 .................. Flat Washer .......................................................... 12x24x3 mm ................. 2
76 .............. HVBS-8-DMW-69 .......... Chip Deflector ...................................................... ...................................... 1
76-1 ........... TS-2246102 .................. Button Head Socket Screw .................................. M6-1.0x10L ................... 1
77 .............. HVBS-8-DMW-78 .......... 45-Degree Plate (right) ......................................... ...................................... 1
77-1 ........... TS-1550041 .................. Flat Washer .......................................................... 6x13x1 mm ................... 4
77-2 ........... TS-1503051 .................. Hex Socket Cap Screw ........................................ M6-1.0x20L ................... 4
77-3 ........... TS-1490041 .................. Hex Cap Bolt ........................................................ M8-1.25x25L ................. 2
77-4 ........... TS-1540061 .................. Hex Nut ................................................................ M8 ................................. 2
77-5 ........... HVBS-8-DMW-78-5 ....... 45-Degree Plate (left) ........................................... ...................................... 1
78 .............. HVBS712-15 ................. Work Stop ............................................................ ...................................... 1
78-1 ........... HVBS712-13 ................. Threaded Collar ................................................... ...................................... 1
78-2 ........... HVBS712-14 ................. Plastic Knob ......................................................... ...................................... 1
78-3 ........... HVBS712-17 ................. Lower Work Stop Rod .......................................... ...................................... 1
78-4 ........... TS-1490031 .................. Hex Cap Bolt ........................................................ M8-1.25x20L ................. 1
78-5 ........... HVBS-8-DMW-80-1 ....... Upper Work Stop Rod .......................................... ...................................... 1
79 .............. HVBS-8-DMW-82 .......... Vertical Cutting Platform ...................................... ...................................... 1
80 .............. F009536 ........................ Hex Socket Cap Screw ........................................ M12-1.75x30L ............... 3
80-1 ........... TS-2361121 .................. Lock Washer ........................................................ M12 ............................... 3
80-2 ........... TS-2360121 .................. Flat Washer .......................................................... 12x28x3 mm ................. 3
81 .............. HVBS-8-DMW-86 .......... Handle .................................................................. ...................................... 1
81-1 ........... TS-1503061 .................. Hex Socket Cap Screw ....................................... M6x25 ........................... 1
81-2 ........... TS-2311061 .................. Hex Nut ................................................................ M6 ................................. 1
82 .............. HVBS-10-DMW-82 ........ Chip Drawer ......................................................... ...................................... 1
83 .............. HVBS-8-DMW-84 .......... Swivel Caster ....................................................... 411 PU .......................... 2
83-1 ........... TS-0561052 .................. Hex Nut ................................................................ 1/2"-20 .......................... 2
................ HVBS-10-DMW-85CPA Coolant Pump with Tray Assembly (#1-10,1-9,1-7,1-8,1-11,1-12,46,87,88,
89-1,91,90,98,97,99,100,84,85,85-1,85-2,85-3,85-4,21) * .......................... 1
84 .............. HVBS-10-DMW-84 ........ Coolant Tray ......................................................... ...................................... 1
85 .............. HVBS-10-DMW-85 ........ Coolant Pump * .................................................... 1/8HP 2P 1PH .............. 1
85-1 ........... TS-2286252 .................. Phillips Pan Hd Machine Screw * ......................... M6-1.0x25L ................... 4
85-2 ........... HVBS-10-DMW-85-2 ..... Pipe * .................................................................... ...................................... 1
85-3 ........... HVBS-10-DMW-85-3 ..... Metal Cable Tie * .................................................. ...................................... 1
85-4 ........... HVBS-10-DMW-85-4 ..... Hose Fitting .......................................................... 3/8Px5/16 ...................... 2
86 .............. HVBS-8-DMW-86-3 ....... Grip ...................................................................... ...................................... 1
87 .............. HVBS-10-DMW-87 ........ Bracket (LH) ......................................................... ...................................... 1
88 .............. HVBS-10-DMW-88 ........ Bracket (RH) ........................................................ ...................................... 1
89 .............. HVBS-8-DMW-85 .......... Carriage ............................................................... ...................................... 1
89-1 ........... F001200 ........................ Phillips Pan Hd Machine Screw ........................... M5-0.8x6 ....................... 1
90 .............. TS-1550041 .................. Flat Washer .......................................................... 6x13x1 mm ................... 4
