Base and Column:
Base size ......................................... 18-7/8”L x 11-3/8”W x 2-5/8”H ......................... 18”L x 11-3/8”W x 2-1/4”H
........................................................................ (480 x 288 x 66 mm) .................................. (460 x 288 x 56 mm)
Base working surface ...................... 8”L x 9-1/2”W (200 x 240 mm) ................. 8” L x 9-1/2” W (200 x 240 mm)
Base slots (2) ................................ 5/8”W x 6-5/16”L (16 x 160 mm) ................ 5/8”W x 6-5/16”L (16 x 160 mm)
Distance between base slots (centers) ........................ 5” (126 mm) ............................................... 5” (126 mm)
Column diameter ............................................ 2-7/8” (ø73 x T3mm) .................................. 2-7/8” (ø73 x T3mm)
Dimensions and Weights:
Overall dimensions, assembled ........... 26-5/8”L x 17”W x 63-7/8”H ....................... 26-5/8”L x 17”W x 43-7/8”H
.................................................................... (677 x 434 x 1623 mm) .............................. (677 x 434 x 1115 mm)
Shipping dimensions ...................... 58”L x 24-7/16”W x 12-13/16”H ................ 36-1/2”L x 33-1/4”W x 12-13/16”
.................................................................... (1475 x 625 x 320 mm) ................................ (925 x 845 x 325 mm)
Net weight (approximate) ........................................ 172 lb (78.2 kg) .......................................... 154 lb (70.2 kg)
Shipping weight (approximate) ............................... 183 lb (83.2 kg) ....................................... 165.5 lb (75.2 kg)
L = le
ngth; W = width; H = height
1
Subject to local and national electrical codes.
2
The specified values are emission levels and are not necessarily to be seen as safe operating levels. As workplace
conditions vary, this information is intended to allow the user to make a better estimation of the hazards and risks
involved only.
3
Swing is twice the distance from column to spindle center (i.e., the maximum diameter of workpiece that can be
drilled to its center).
5.1 Base mounting holes for JDP-15F/15B

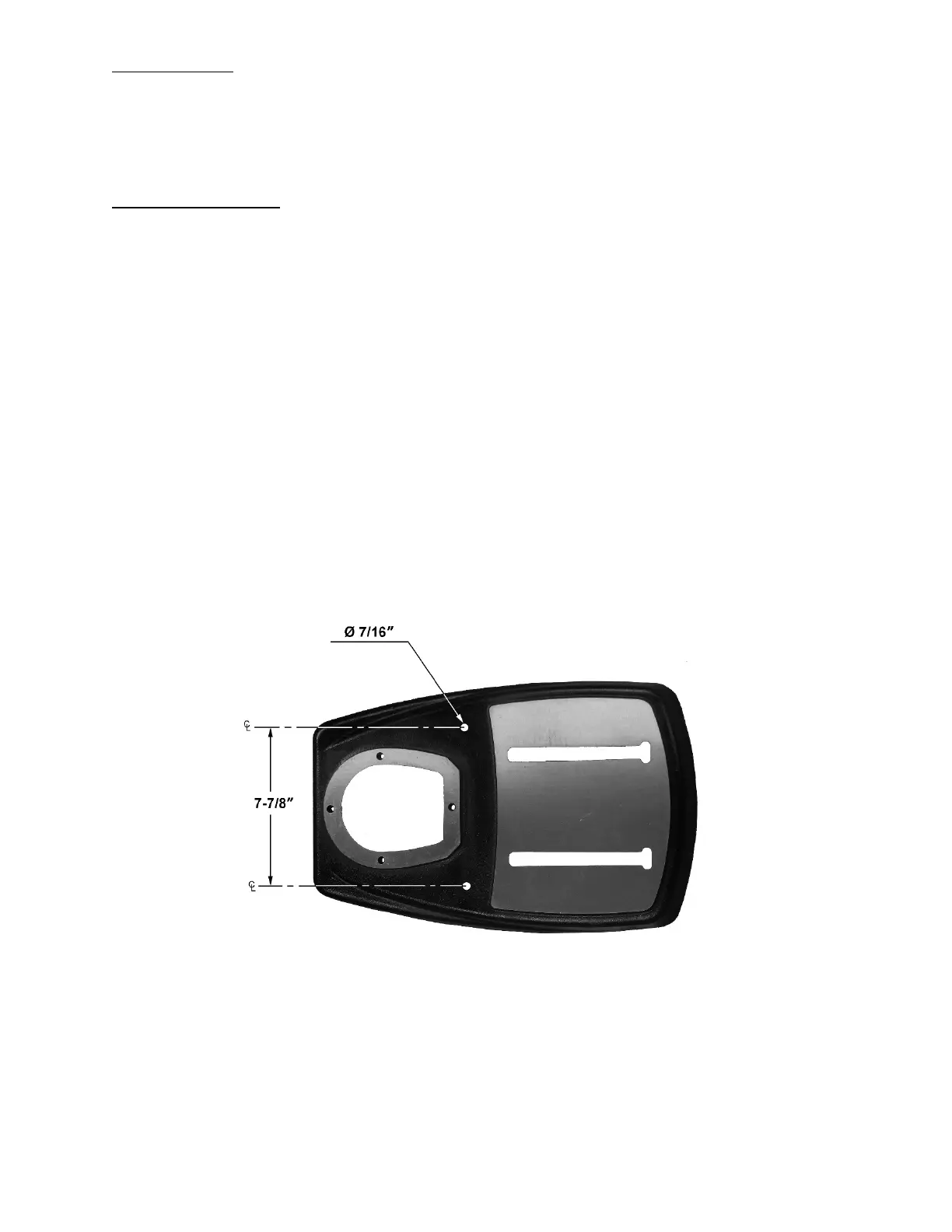

Figure 1: Base mounting holes
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring
obligations.
