Jet JVM-836-1 Operator's Manual

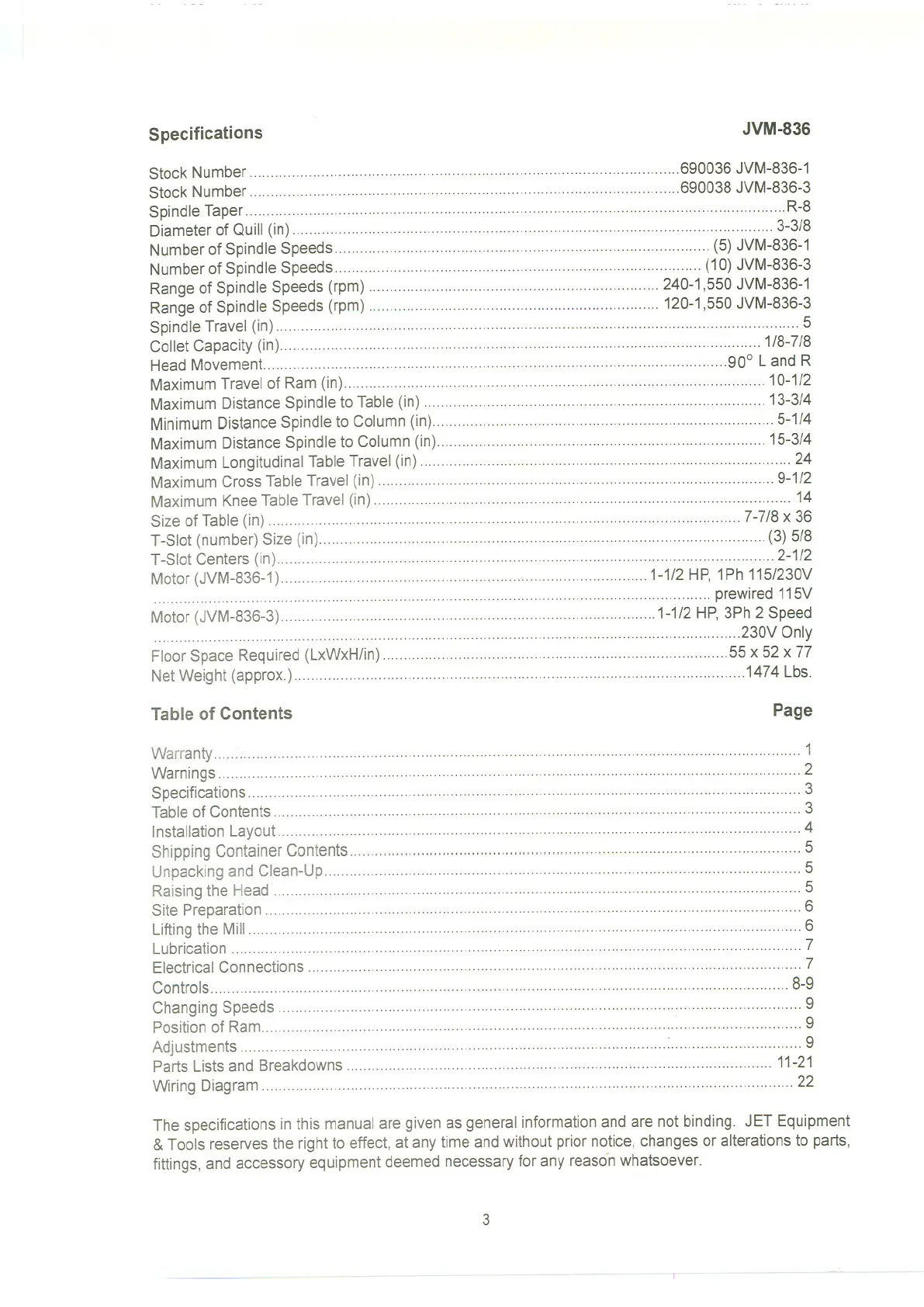

Specifications
JVM-836
Stock Number .690036 JVM-836-1
Stock Number ..690038 JVM-836-3
Spindle Taper R-8
Diameter of Quill (in) 3-3/8
Number of Spindle Speeds (5) JVM-836-1
Number of Spindle Speeds , (10) JVM-836-3
Range of Spindle Speeds (rpm) ".. 240-1,550 JVM-836-1
Range of Spindle Speeds (rpm) 120-1,550 JVM-836-3
Spindle Travel (in) 5
Collet Capacity (in) 1/8-7/8
Head Movement 90° Land R
Maximum Travel of Ram (in) , 10-1/2
Maximum Distance Spindle to Table (in) " 13-3/4
Minimum Distance Spindle to Column (in) 5-114
Maximum Distance Spindle to Column (in) 15-3/4
Maximum LongitudinalTableTravel (in) " 24
Maximum Cross TableTravel (in) , 9-1/2
Maximum Knee TableTravel (in) , 14
Size of Table (in) , 7-7/8 x 36
T-Slot (number) Size (in) (3) 5/8
T-Slot Centers (in) 2-1/2
Motor (JVM-836-1) ,
\ 1-112HP,1Ph 115/230V
prewired 115V
Motor (JVM-836-3) 1-1/2 HP, 3Ph 2 Speed
.230V Only
Floor Space Required (LxWxH/in) 55 x 52 x 77
Net Weight (approx.) .1474 Lbs.
Table of Contents
Page
Warranty 1
Warnings . 2
Specifications 3
Tableof Contents 3
Installation Layout 4
Shipping Container Contents 5
Unpacking and Clean-Up 5
Raisingthe Head 5
Site Preparation 6
Lifting the Mill 6
Lubrication 7
ElectricalConnections 7
Controls 8-9
Changing Speeds 9
Position of Ram 9
Adjustments ... 9
Parts Lists and Breakdowns , 11-21
Wiring Diagram 22
The specifications in this manual are given as general informationand are not binding. JET Equipment
& Tools reserves the right to effect, at any time and without prior notice, changes or alterations to parts,
fittings, and accessory equipment deemed necessaryfor any reaso'nwhatsoever.
