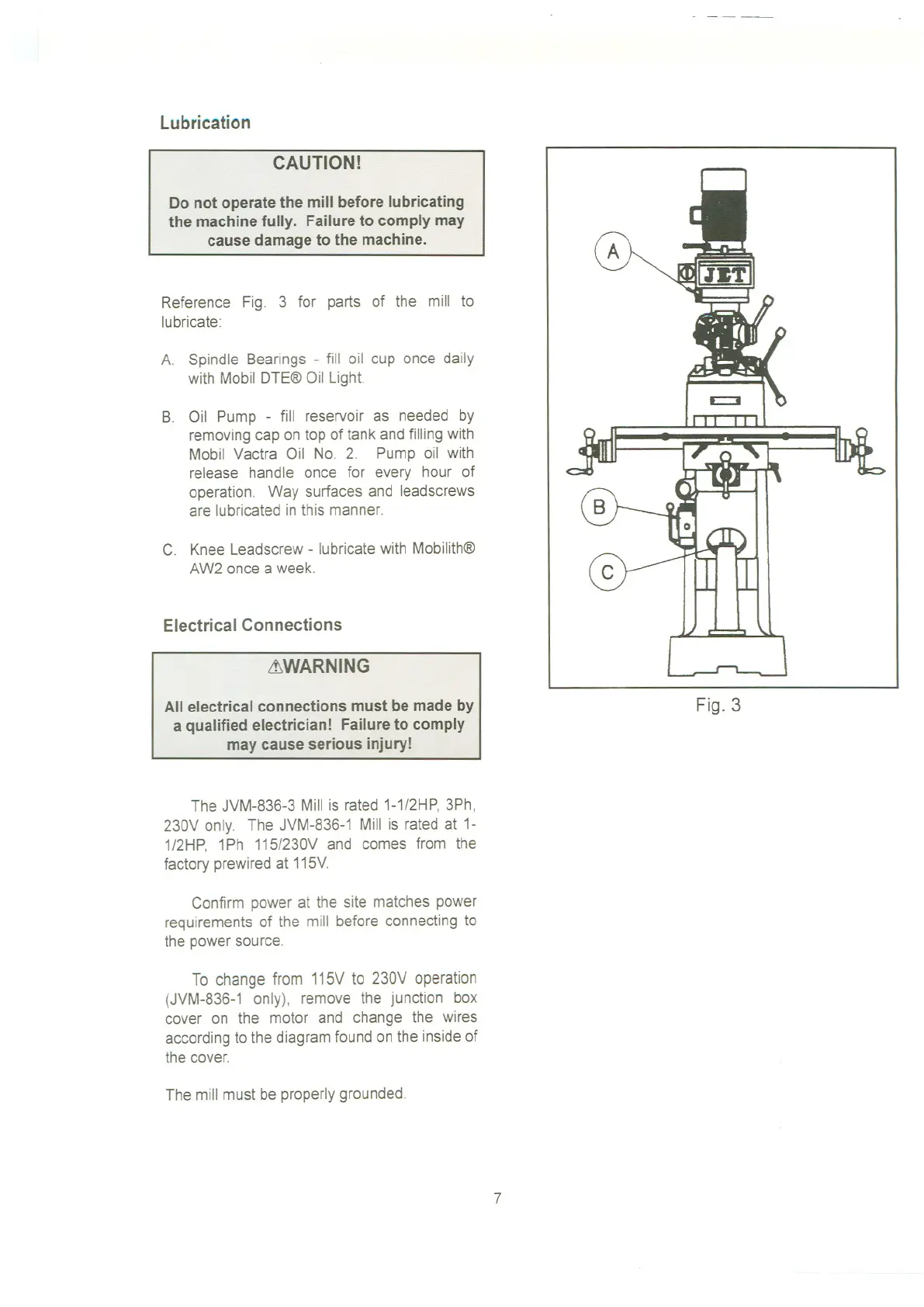

Lubrication
CAUTION!
Do not operate the mill before lubricating
the machine fully. Failure to comply may
Ccil'$e damage to ttle machine.
Reference Fig. 3 for parts of the mill to
lubricate:
A. Spindle Bearings - fill oil cup once daily
with Mobil DTE@Oil Light.
B. Oil Pump - fill reservoir as needed by
removing cap on top of tank and filling with
Mobil Vactra Oil NO.2. Pump oil with
release handle once for every hour of
operation. Way surfaces and leadscrews
are lubricated in this manner.
C. Knee Leadscrew - lubricate with Mobilith@
AW2 once a week.
Electrical Connections
LtWARNING
All electrical connections must be made by
a qualified electricIan! Failure to comply
may cause serious injury!
The JVM-836-3 Mill is rated 1-1/2HP,3Ph,
230V only. The JVM-836-1 Mill is rated at 1-
1/2HP, 1Ph 115/230V and comes from the
factory prewired at 115V.
Confirm power at the site matches power
requirements of the mill before connecting to
the power source.
To change from 115V to 230V operation
(JVM-836-1 only), remove the junction box
cover on the motor and change the wires
according to the diagram found on the insideof
the cover.
The mill must be properly grounded.
7
Fig. 3
