DO NOT ALLOW THE ACRYLIC TO TAKE ANY WEIGHT
OF THE UPPER SECTION. IT CANNOT TAKE THE
WEIGHT AND WILL BREAK.

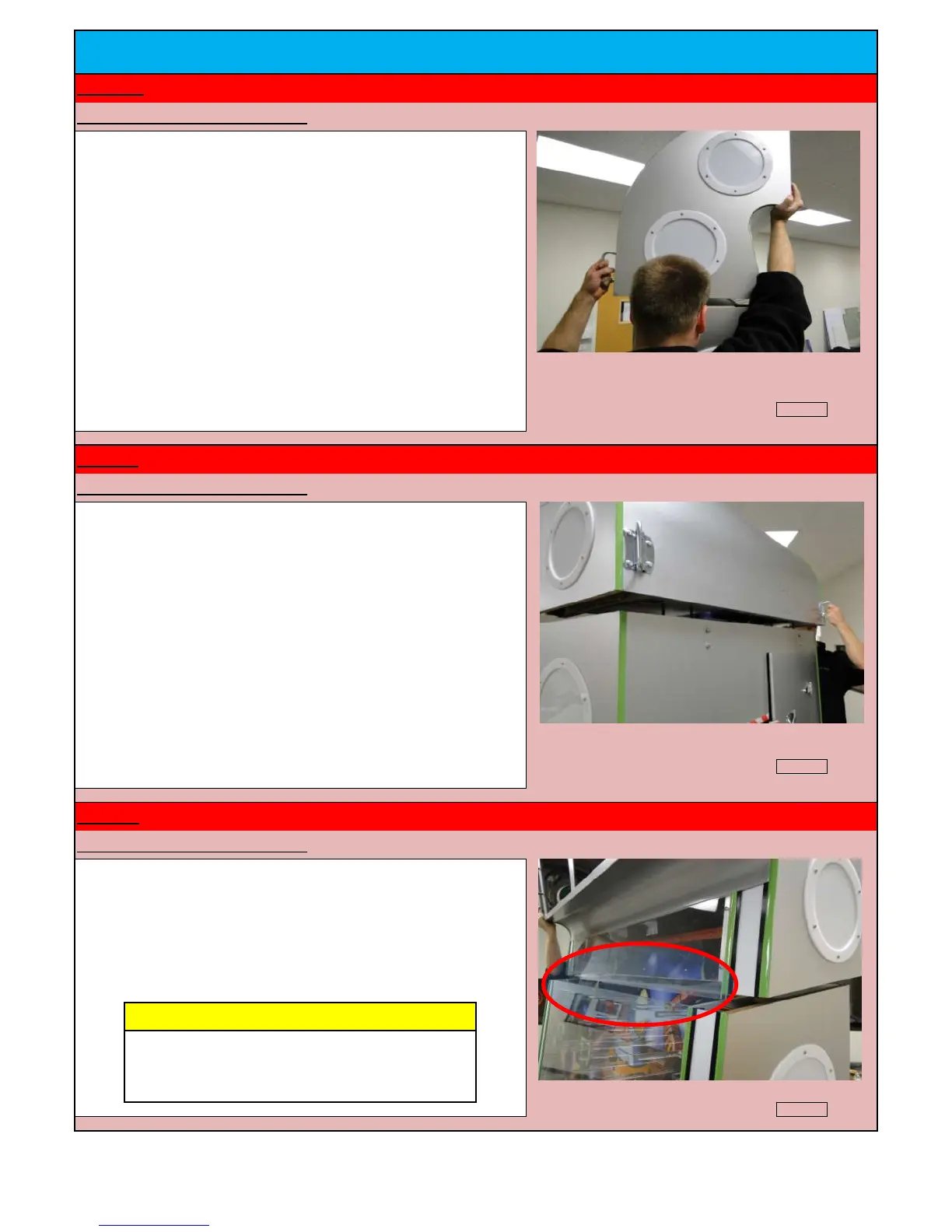

The hardest part while installing Section # 3 is aligning the acrylic on
the upper section with the glass on the lower cabinet section. Before
you lower Section # 3 onto the cabinet - ensure that the acrylic
sleeve fits on top of the glass. You may need a third person to assist
you here in guiding which way the section needs to be oriented.
Check Box When This Step is Complete
Lifting section # 3 into place - Cont.
Check Box When This Step is Complete
Lifting section # 3 into place - Cont.
Hold the section as shown in the picture to the right and guide it
close to the mounting holes. You should be able to see where the
bolts line up to the mounting holes.
Check Box When This Step is Complete
Lifting section # 3 into place - Cont.
Get the unit as close to the mounting holes as possible. Take care not
to damage the acrylic glass on the front while guiding the piece into
position.
INSTALLATION INSTRUCTIONS
Jennison Entertainment Technologies Space Ballz Service Manual Page 18
