Check Box When This Step is Complete

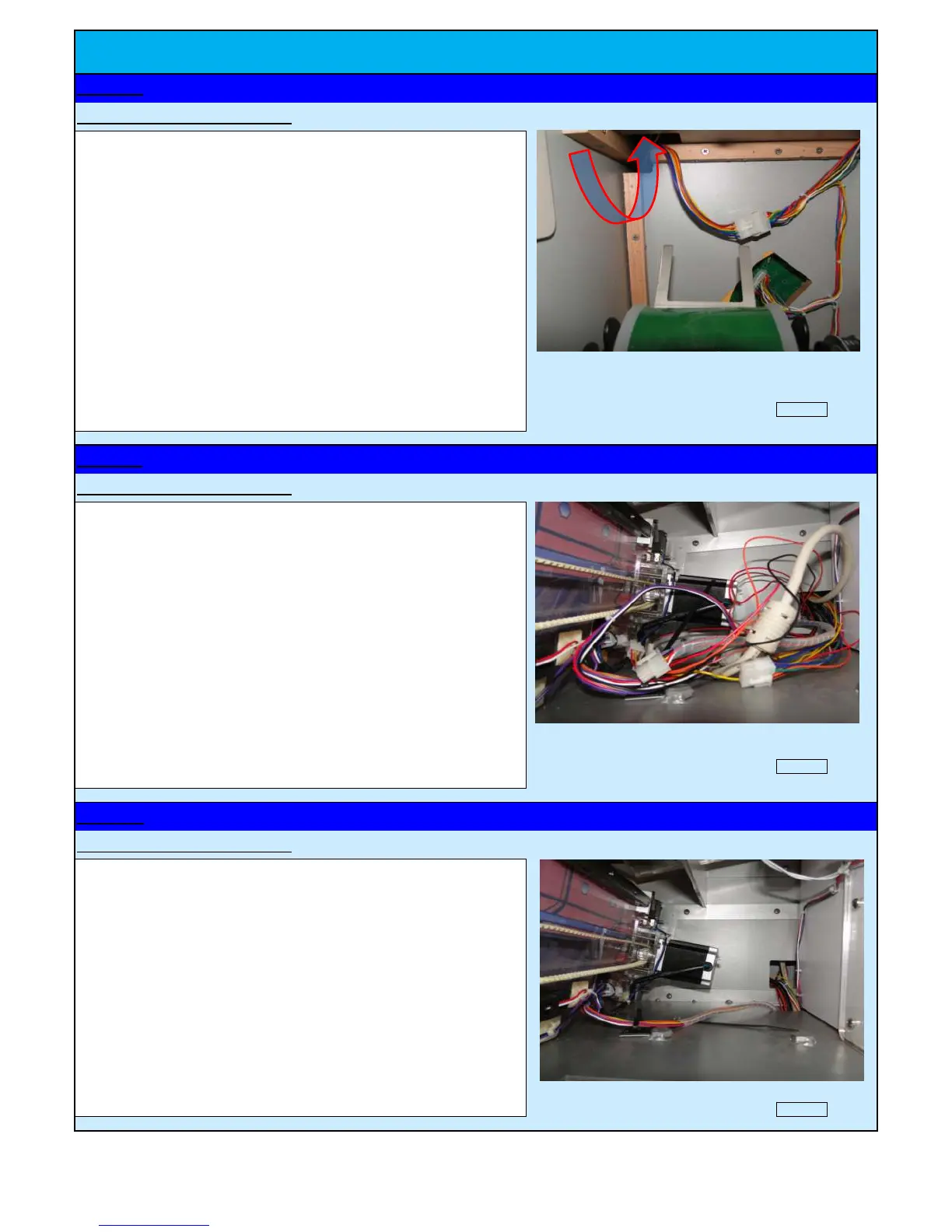

Connecting Electrical Connectors
After you run the cables through the rear corner access point -
ensure that there is nothing that can get caught on the motor belt
and claw mechanism as to will move back and forth after powering
up the game.
Check Box When This Step is Complete
Connecting Electrical Connectors
INSTALLATION INSTRUCTIONS
After plugging both connectors into their corresponding connectors,
push the excess wire back up into the hole so that it does not get
caught in the vertical ball feed structure. Keep the wire up against
the wall and away from the metal ball feed holders.
Check Box When This Step is Complete
Connecting Electrical Connectors
From the rear access door - look up through the access point and to
the right. There will be eight connectors. Separate each wire and run
them through the hole in the back corner of the cabinet.
Jennison Entertainment Technologies Space Ballz Service Manual Page 25
