Jet SPACE BALLZ - Page 26

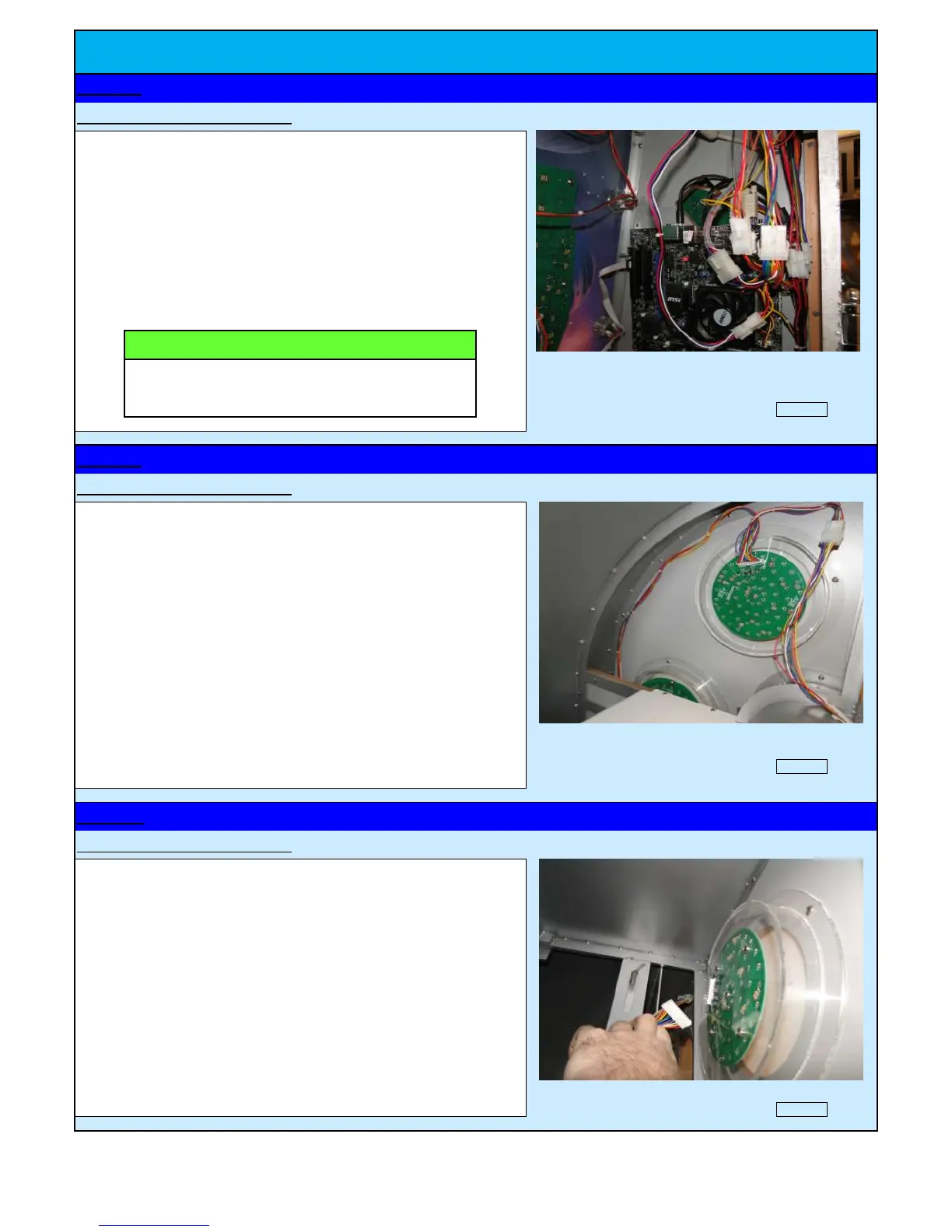

1) Plug each of the 8 Connectors into the corresponding connector
near the CPU (computer board). Each connector should be
numbered and will match the corresponding connector.
2) Once all 8 Connectors are inserted and properly seated. Be sure to
store all cables to the right of the main board away from sensitive
electronics and the computer's fan.
Step # 7-E
Connecting Electrical Connectors
NOTICE
SOME CPU'S MARY VARY FROM PICTURE
Check Box When This Step is Complete
Step # 7-F
Connecting Electrical Connectors
Check Box When This Step is Complete
1) Locate the 10-Pin Molex connector in the right side of Section # 3.
Check Box When This Step is Complete
Step # 7-G
Connecting Electrical Connectors
1) Pull the 10-Pin connector through the opening closest to the side
of the cabinet and plug it into the round LED board on the right side.
INSTALLATION INSTRUCTIONS
Jennison Entertainment Technologies Space Ballz Service Manual Page 26
