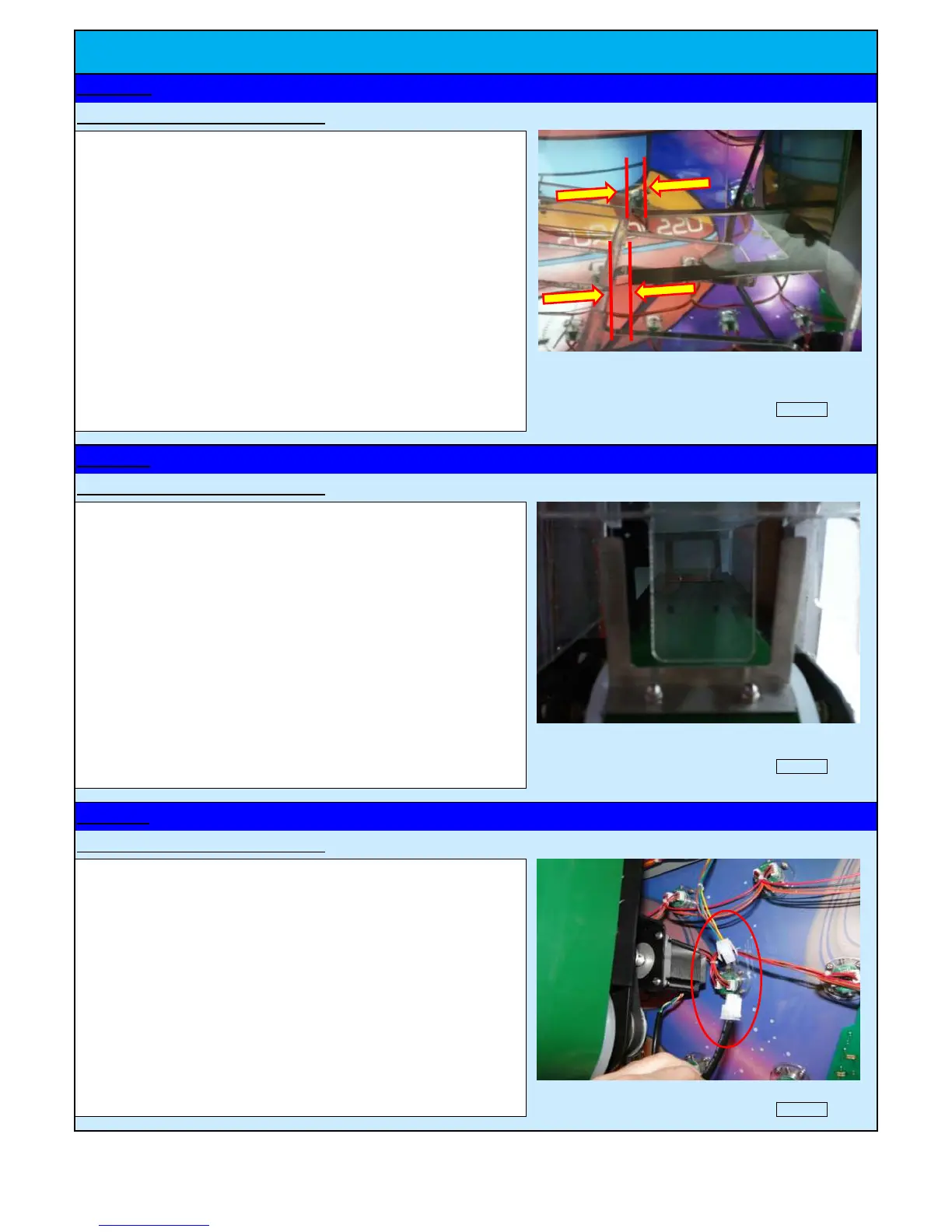

1) Ensure there is at least 5mm clearance between the metal ball
support structure and the acrylic when you physically move the ball
riser belt through the acrylic ball feeder.
2) The clearance is to ensure that the ball riser will not jam during
normal operation. After you have the proper clearance - tighten all
four bolts holding the structure.
Installing the second vertical ball riser
Check Box When This Step is Complete
Installing the second vertical ball riser
Check the clearance of the ball riser with the acrylic structure near
the top of the ball feed. Ensure that the metal ball holders do not hit
the acrylic.
Check Box When This Step is Complete
Installing the second vertical ball riser
1) Connect the 4-Pin motor wire connector to the 4-Pin Molex
connector inside the game.
Check Box When This Step is Complete
INSTALLATION INSTRUCTIONS
Jennison Entertainment Technologies Space Ballz Service Manual Page 33
