6

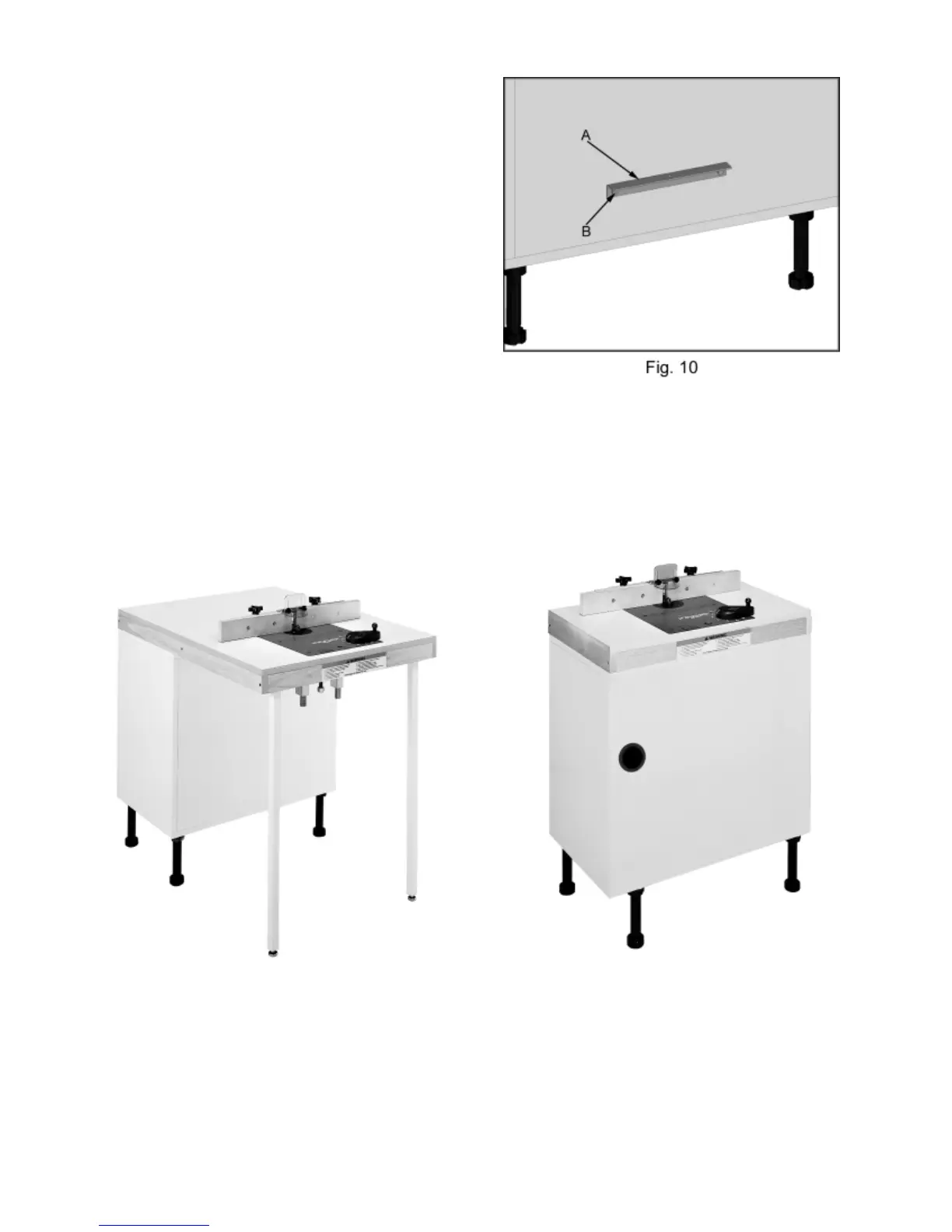

mount the angle bracket (A, Fig. 10) to the
pre-drilled holes in the cabinet using two
1/4-20 x 1-1/2” round head machine screws,
two 1/4" flat washers, two 1/4” lock washers
and two 1/4” hex nuts, (B, Fig. 10).
3. Mount the shelf to the three brackets with
three 1/4-20 x 1-1/2” round head machine
screws, three 1/4” flat washers, three 1/4”
lock washers and three 1/4” hex nuts. The
end with the cutout should be against the
tablesaw cabinet facing down. Note: You
may need to cut the length of the shelf to fit.
Follow the XACTA-Lift owner’s manual for
installation instructions.
Stand Alone Router Cabinet
The cabinet can be used as a stand alone unit
by mounting a wood router table to the top using
the included runners and wood screws.
