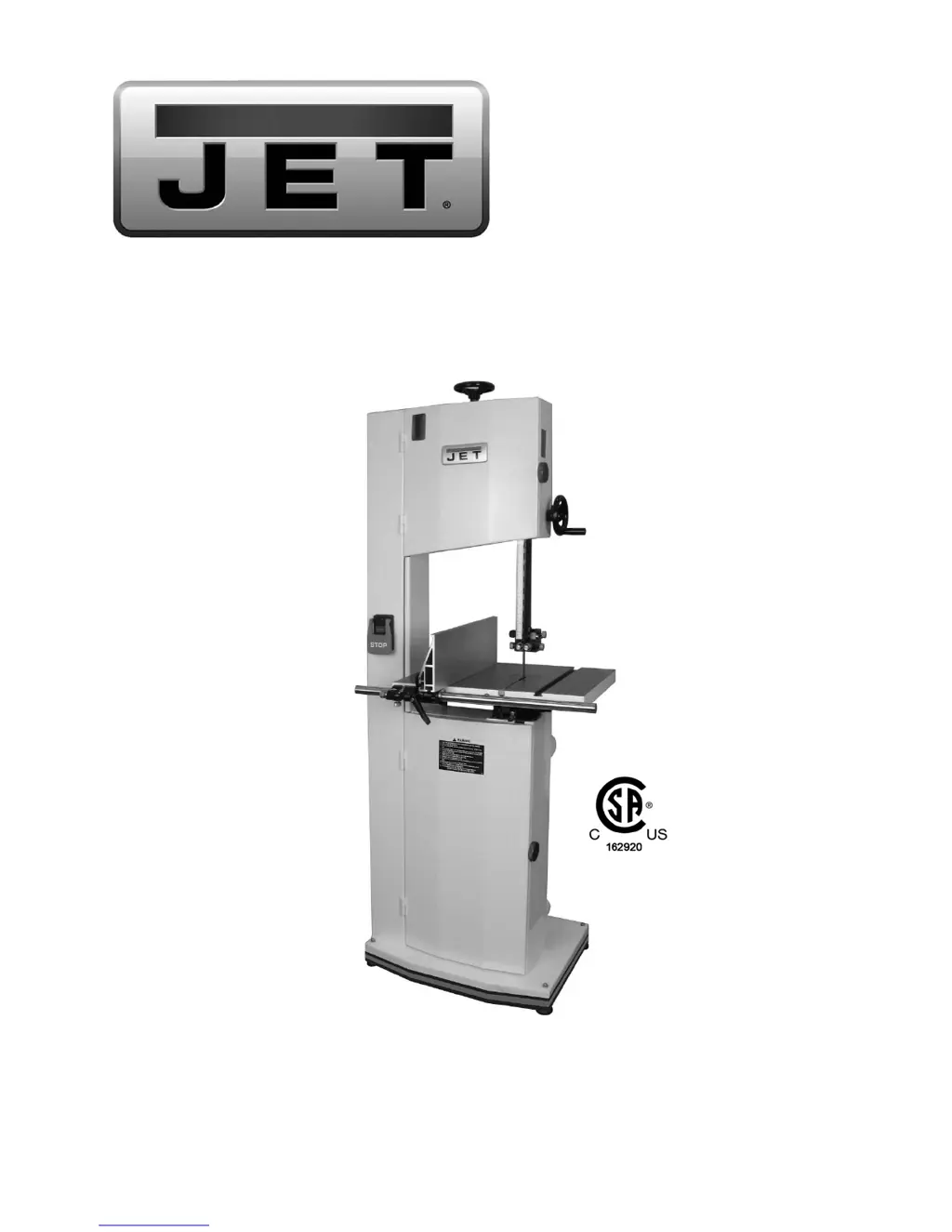

Operating Instructions and Parts Manual
14-inch Woodworking Band Saw
Model JWBS-14SF
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-714500
Ph.: 800-274-6848 Revision A 06/2013
www.waltermeier.com Copyright © 2013 Walter Meier (Manufacturing) Inc.

Table of Contents

Other manuals for Jet JWBS-14SF

Preview: Operating Instructions And Parts List Manual
Operating Instructions And Parts List Manual10 pages

Questions and Answers

  • J
    James TaylorAug 19, 2025
    Why does my Jet Band Saw repeatedly trip the circuit breaker?
    • M
      michelle92Sep 12, 2025
      If your Jet Band Saw won't start, restart, or keeps tripping the circuit breaker, there could be several reasons: * **No incoming power:** Verify the machine's connections. * **Damaged cord:** Replace the cord. * **Tripping frequently:** Reduce feed pressure into the blade. * **Building circuit breaker trips:** Ensure the band saw is on a correctly sized circuit. * **Switch or motor failure:** Verify the incoming voltage. * **Motor overheated:** Clean the motor to allow proper air circulation and let it cool down before restarting. * **Motor failure:** Have a qualified electrician test the motor. * **Miswiring:** Double-check all electrical connections. * **Switch failure:** Have a qualified electrician test the switch.
  • T
    Thomas WrightAug 21, 2025
    How to fix Jet Saw blade cutting inaccurately?
    • C
      charles82Aug 21, 2025
      If your Jet Saw blade isn't cutting straight, consider these potential causes and solutions: * **Gum or pitch on blade:** Clean the blade. * **Worn or damaged blade:** Replace the blade. * **Fence not parallel:** Align the fence properly. * **Incorrect blade guide adjustment:** Adjust the blade guides properly. * **Excessive feed force:** Reduce the force you're using to feed the workpiece. * **Upper blade guides too far:** Position the guides about 1/8” above the workpiece. * **Incorrect blade:** Install the correct blade for the operation. * **Insufficient blade tension:** Increase the blade tension.
  • W
    westkristinaAug 23, 2025
    Why does my Jet JWBS-14SF blade break prematurely?
    • M
      Mike BryantAug 23, 2025
      If the blade on your Jet Saw is breaking prematurely, it could be due to: * **Excessive feed force:** Reduce the feed force. * **Coarse blade pitch:** Refer to the blade selection chart and use a finer pitch blade.
  • J
    Jason AndradeAug 26, 2025
    What to do if Jet JWBS-14SF teeth dull prematurely?
    • H
      Heidi JacksonAug 26, 2025
      If your Jet Saw teeth are dulling too quickly, consider the following: * **Fine blade pitch:** Refer to the blade selection chart and use a blade with a coarser pitch. * **Light feed pressure:** Increase feed pressure. * **Low cutting rate:** Increase feed pressure and cutting rate. * **Incorrect blade:** Re-examine the material and select the proper blade from the chart. * **Chipped tooth/object in cut:** Stop the saw, remove any lodged particles, and replace the blade if damaged.
  • B
    Brittney HernandezAug 27, 2025
    Why are there cracks on the back edge of my Jet JWBS-14SF Saw blade?
    • H
      Haley PerkinsAug 28, 2025
      If you notice cracks on the back edge of your Jet Saw blade, it might be because: * **Workpiece being fed too quickly:** Reduce the feed speed to lessen the strain on the blade. * **Welding misalignment:** Eliminate the welded part and re-weld properly, or acquire a new blade; round the back edge of a new blade. * **Worn thrust bearing:** Replace the thrust bearing and adjust the new bearing according to instructions.
  • A
    Amanda BrownAug 30, 2025
    Why is my Jet JWBS-14SF Saw table vibrating while sawing?
    • B
      Benjamin GutierrezAug 30, 2025
      If your Jet Saw table vibrates while sawing, it could be due to: * **Slack drive belt:** Increase the tension on the drive belt. Replace the belt if it's worn. * **Incorrect blade pitch:** Check the blade selection chart and use the correct blade. * **Sawdust/debris on band wheel or worn tire:** Keep the band wheels clean and replace tires if necessary.
  • R
    raychelseaSep 1, 2025
    Why is the surface finish rough on my Jet JWBS-14SF Saw?
    • S
      Sandra MurphySep 1, 2025
      If the surface finish on your workpiece is rough when using the Jet Saw, consider: * **Coarse blade pitch:** Change to a finer pitch blade. * **Excessive feed force:** Reduce the feed force.
  • V
    vmartinezSep 3, 2025
    Why does my Jet JWBS-14SF Saw blade break close to the weld?
    • W
      william96Sep 3, 2025
      If the blade on your Jet Saw breaks close to the weld, it could be due to: * **Blade overheated during welding:** Have the blade annealed, or eliminate the brittle part and weld correctly. * **Blade cooled too rapidly after welding:** Have the blade annealed, or eliminate the brittle part and weld correctly.
  • L
    Leonard FischerSep 5, 2025
    Why doesn't my Jet Band Saw attain full speed?
    • D
      danielle80Sep 5, 2025
      If your Jet Band Saw isn't reaching full speed, it might be because: * **Inadequate extension cord:** Replace the cord with one of adequate size and length. * **Low current:** Contact a qualified electrician.
  • G
    gmitchellSep 7, 2025
    What to do if Jet JWBS-14SF blade binds in workpiece?
    • M
      marymoraSep 7, 2025
      If the blade binds in the workpiece when using your Jet Saw, it could be due to: * **Incorrect blade tension or damaged blade:** Correct accordingly. * **Blade too wide for radius:** Select a narrower blade.

Summary

Warranty and Service

Safety Warnings

About This Manual

Features and Terminology

Specifications

Base Hole Centers - JWBS-14 SF

Dimensions and spacing for the band saw's base mounting holes.

Setup and Assembly

Unpacking

Procedure for safely removing the band saw from its shipping container.

Shipping Contents

List of all parts and accessories included in the shipment.

Location

Guidelines for selecting an appropriate and safe installation site.

Installing Leveler Pads

Instructions for attaching the leveling feet to the machine base.

Assembling Table Tilt Handle

How to attach and use the table tilt adjustment handle.

Dust Collection

Recommendations for connecting a dust collection system to the saw.

Electrical Connections

Guidance for safely connecting the band saw to a power source.

Grounding Instructions

Essential safety procedures for proper electrical grounding.

Voltage Conversion

Steps required to switch the saw for operation on different voltage supplies.

Extension Cords

Advice on selecting and using appropriate extension cords.

Switch Lockout

Information on using the safety lockout feature for the power switch.

Adjustments

Tools Required for Adjustments

Lists the necessary tools for performing machine adjustments.

Fence Resaw Plate

Instructions for installing and positioning the resaw fence plate.

Fence Fine Adjust

Method for making precise fine-tuning adjustments to the fence.

Setting Table Parallel to Blade

How to align the table perfectly parallel to the saw blade.

Setting Fence Parallel to Blade

Steps to ensure the fence is parallel to the saw blade for accurate cuts.

Leveling Table Insert

Procedure for leveling the table insert for a smooth cutting surface.

Table Tilt

Adjusting the table's angle for bevel cuts, using the tilt scale.

90° Table Stop

Setting the positive stop to ensure a precise 90-degree table position.

Installing;Changing Blades

Comprehensive guide for safely installing and changing saw blades.

Blade Tension

Correct method for setting and adjusting the tension of the saw blade.

Blade Tracking

Procedure for aligning the blade to track correctly on the wheels.

Overview: Bearing Adjustments

Explanation of the purpose and function of blade guide bearing adjustments.

Upper Blade Guides

How to adjust the upper blade guides for proper blade support.

Upper Thrust Bearing

Setting the upper thrust bearing to support the blade.

Lower Blade Guides

Adjusting the lower blade guides for stability during cutting.

Guide Post

Steps for raising and lowering the guide post assembly.

Guide Post Parallelism

Ensuring the guide post remains parallel throughout its travel.

Drive Belt Replacement and Tensioning

Instructions for replacing and adjusting the drive belt tension.

Brushes

Maintenance procedures for the wheel housing brushes.

Operating Controls

Start;Stop

How to safely start and stop the band saw's motor.

Operation

General Procedure

Standard steps to follow before and during operation.

Ripping

Technique for cutting wood lengthwise along the grain.

Crosscutting

Technique for cutting wood across the grain.

Resawing

Method for slicing wood to create thinner boards.

Blade Lead

Causes and solutions for the saw blade drifting off the cut line.

Maintenance

Lubrication Points

Identifying specific areas that require lubrication for smooth operation.

Blade Selection

Blade Selection Guide

A chart providing recommendations for blade pitch, type, and feed rate.

Troubleshooting the JWBS-14 SF Band Saw

Operational Problems

Solutions for issues related to the band saw's operation.

Mechanical and Electrical Problems

Troubleshooting guide for mechanical and electrical faults.

Replacement Parts

Upper Wheel Assembly - Exploded View

Exploded diagram illustrating the components of the upper wheel assembly.

Lower Wheel & Motor Assembly - Exploded View

Exploded diagram showing the lower wheel and motor assembly parts.

Table and Miter Gauge Assembly* - Exploded View

Exploded diagram of the table and optional miter gauge assembly.

Blade Guide Assembly - Exploded View

Exploded diagram detailing the components of the blade guide system.

Band Saw Parts List

A comprehensive list of all part numbers and descriptions for the band saw.

Electrical Connections - JWBS-14 SF Band Saw

Jet JWBS-14SF Specifications
