JetCat PRO Series - Connection Diagram B); Battery Connection Via PRO-Interface

M
Ingenieurbüro CAT, M. Zipperer GmbH +49-7634-5056-800
Wettelbrunner Straße 6 sales@jetcat.de
24 79282 Ballrechten-Dottingen www.jetcat.de
GERMANY
Instruction
m
anual JetCat
-
PRO engines
,
1.7
-
V12.01V

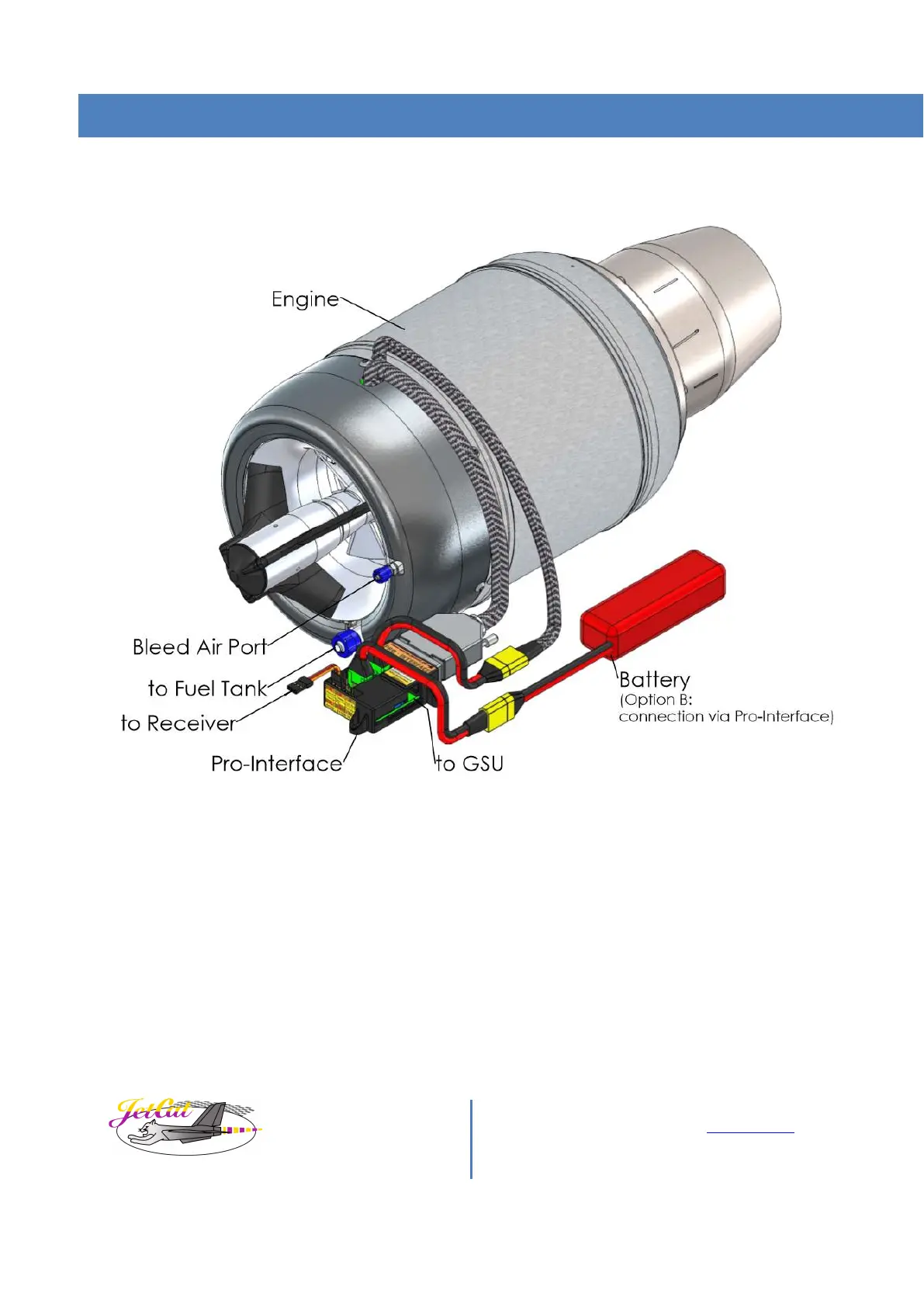

Connection diagram B); Battery connection via PRO-Interface
This way of connecting the battery allows for easy charging of the battery via the Pro-Interface
