Jetmaster 500 - Page 5

Installation of Universal model into a new home

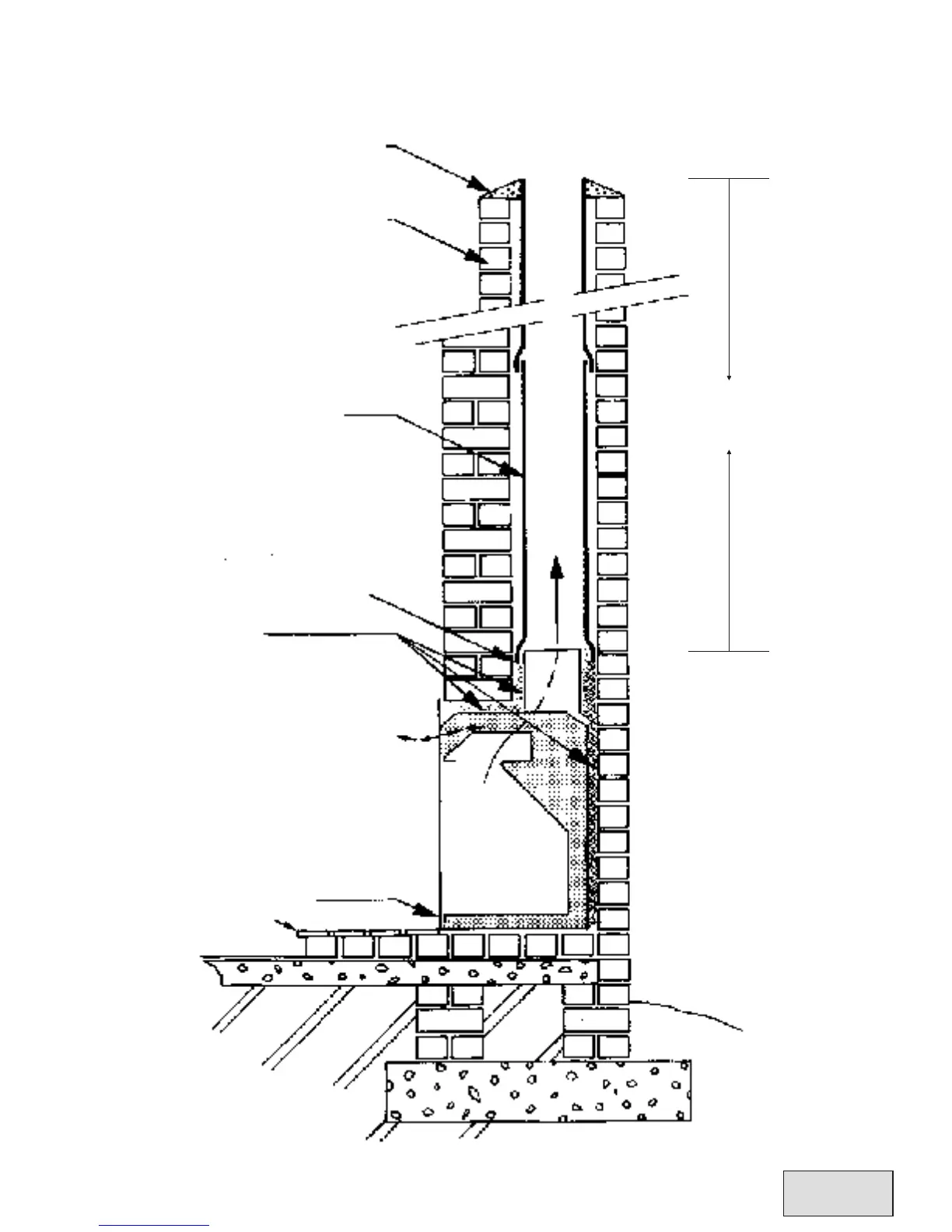

Fig. 1 - Typical flush installation
Fit a Jetmaster cowl
(refer Fig. 8)
110 mm brickwork is adequate
if liners are used.
Moulded flue liner
Seal joint with fibreglass
insulation (supplied)
Fibreglass
insulation
Hot air
Smoke
Air inlet - leave open
Hearth -
by builder
Please read written instructions in conjunction with these diagrams.
3
Min: Height
3.6 Metres +
