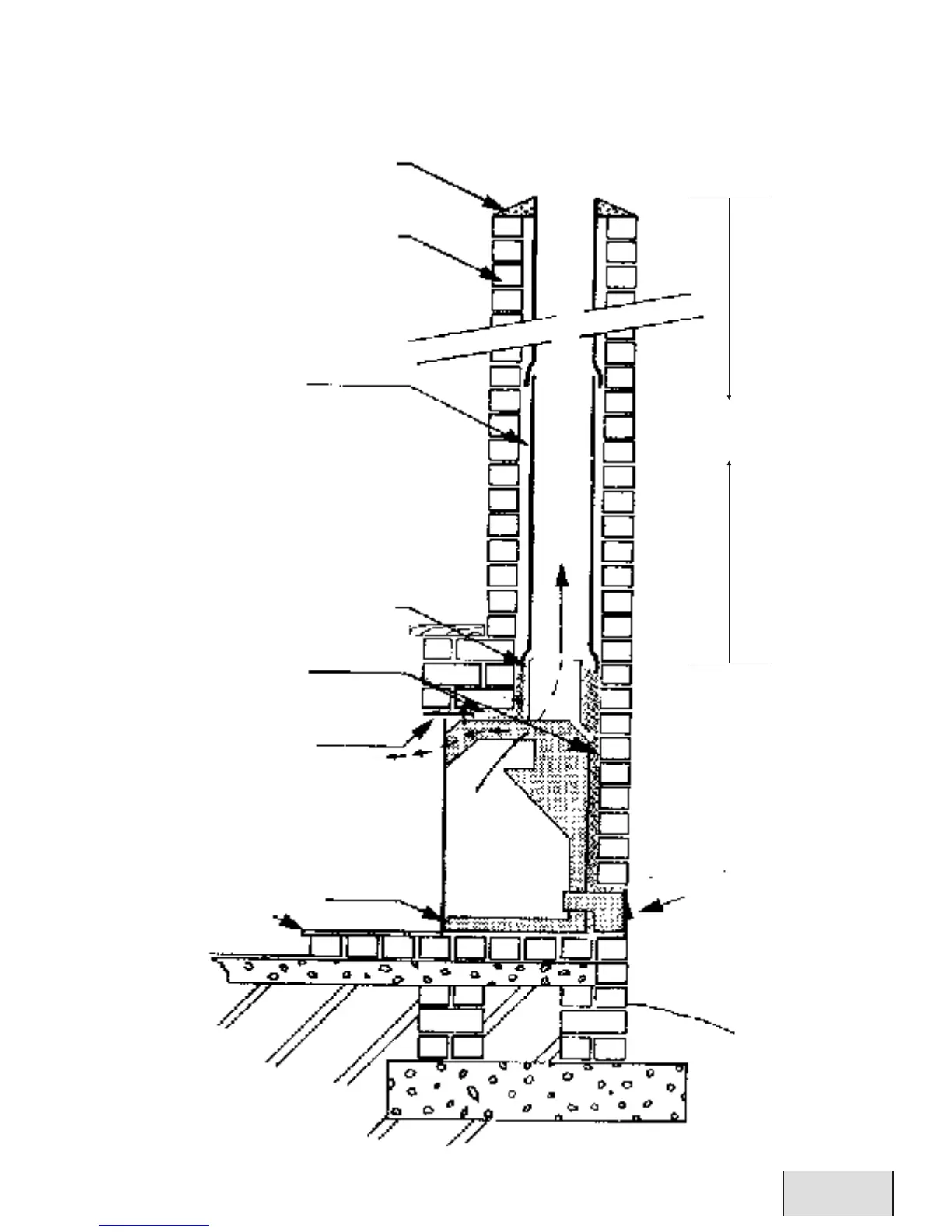

Fig. 2 - Recessed installation using optional steel lintel and showing the
Superjet fan box
Weather top of chimney as
shown or fit Jetmaster cowl
(refer Fig. 8)
110 mm brickwork is adequate
if liners are used.
Moulded flue liner
Seal joint with fibreglass
insulation (supplied)
Fibreglass
insulation
Hot air
Max. recess 150 mm
Superjet fanbox and
air inlet cover plate
Smoke
Air inlet - leave open
Hearth -
by builder
Please read written instructions in conjunction with these diagrams.
