Jetmaster 700 double sided - Optional 100 mm Surround; Double Cone Cowl; Firescreen - Optional

Page 5
A
B
MODEL A B C D
700 double sided 685 533 695 500
1050 double sided 1035 530 1045
Logpan
Firescreen - optional
For solid fuel applications only , a double cone cowl will assist in
preventing the effects of downdraft.
Other solid fuel cowls may be desired to achieve a visual design
and such cowls can be used but must not restrict airflow from the
flue pipe casings.
For gas applications an AGA approved cowl must be used.
C
D
• Measurements are in mm and provided as a reference only.
• Due to the nature of thick welded steel, it is normal and expected for some imperfections and slightly out of square components. It is recommended to not
begin construction of cavity or ue penetration points until after the unit is in place on site.
2. Components and specifications

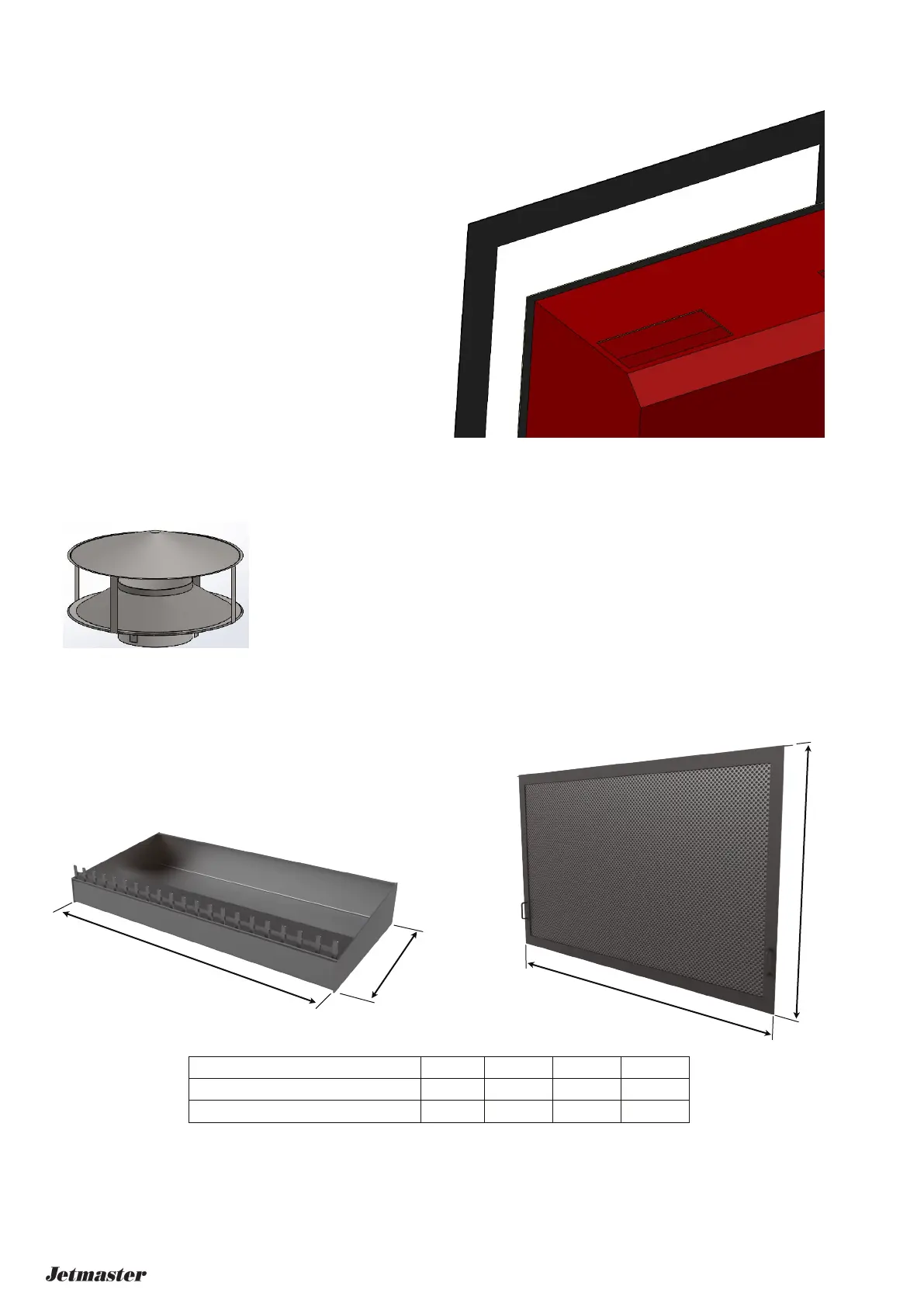

Optional 100mm surround
The surround should be the last item installed.
The wall
cavity must be completed prior to surround installation.
Align the internal edge of the surround to the internal
opening of the fireplace. Use heat rated silicone adhesive
to the rear face of the surround adjacent to the wall. Firmly
press the surround to the wall.
Double cone cowl
480
