22

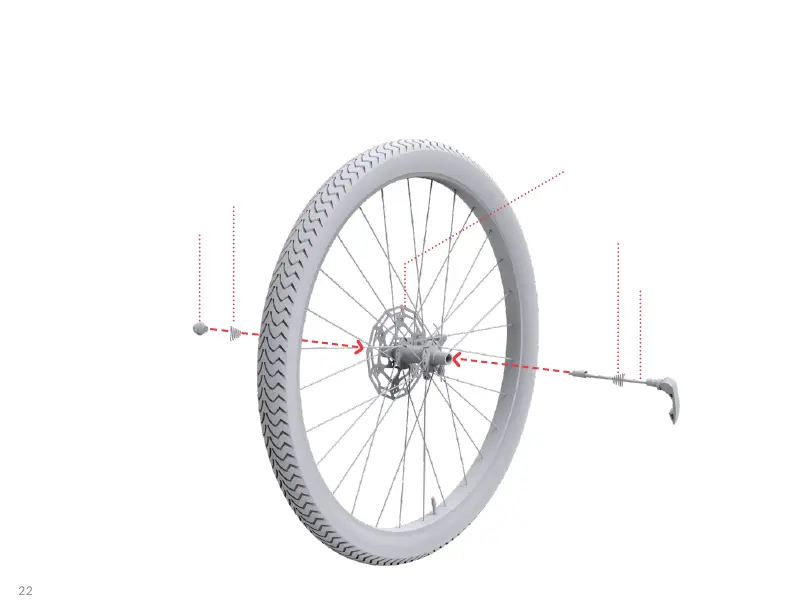

4. LOCATE THE SIDE OF THE FRONT WHEEL WITH THE DISC. INSERT THE END OF THE QUICK RELEASE SKEWER
THROUGH THE HOLE IN THE CENTER OF THE WHEEL ON THE SIDE OPPOSITE THE DISC, AND PUSH IT THROUGH TO
THE DISC SIDE.
5. SLIDE THE SPRING BACK ONTO THE END OF THE SKEWER SUCH THAT THE SMALLER SIDE OF THE SPRING IS
CLOSER TO THE WHEEL.
6. GENTLY TWIST THE KNOB CLOCKWISE ONTO THE END OF THE SKEWER, BUT DO NOT FULLY TIGHTEN IT.
SKEWER
KNOB
SPRING "A"
SPRING "B"
DISC
