GPS Module
● Trimble Resolution SMT GPS module
● SMB male GPS antenna connector
User Interface

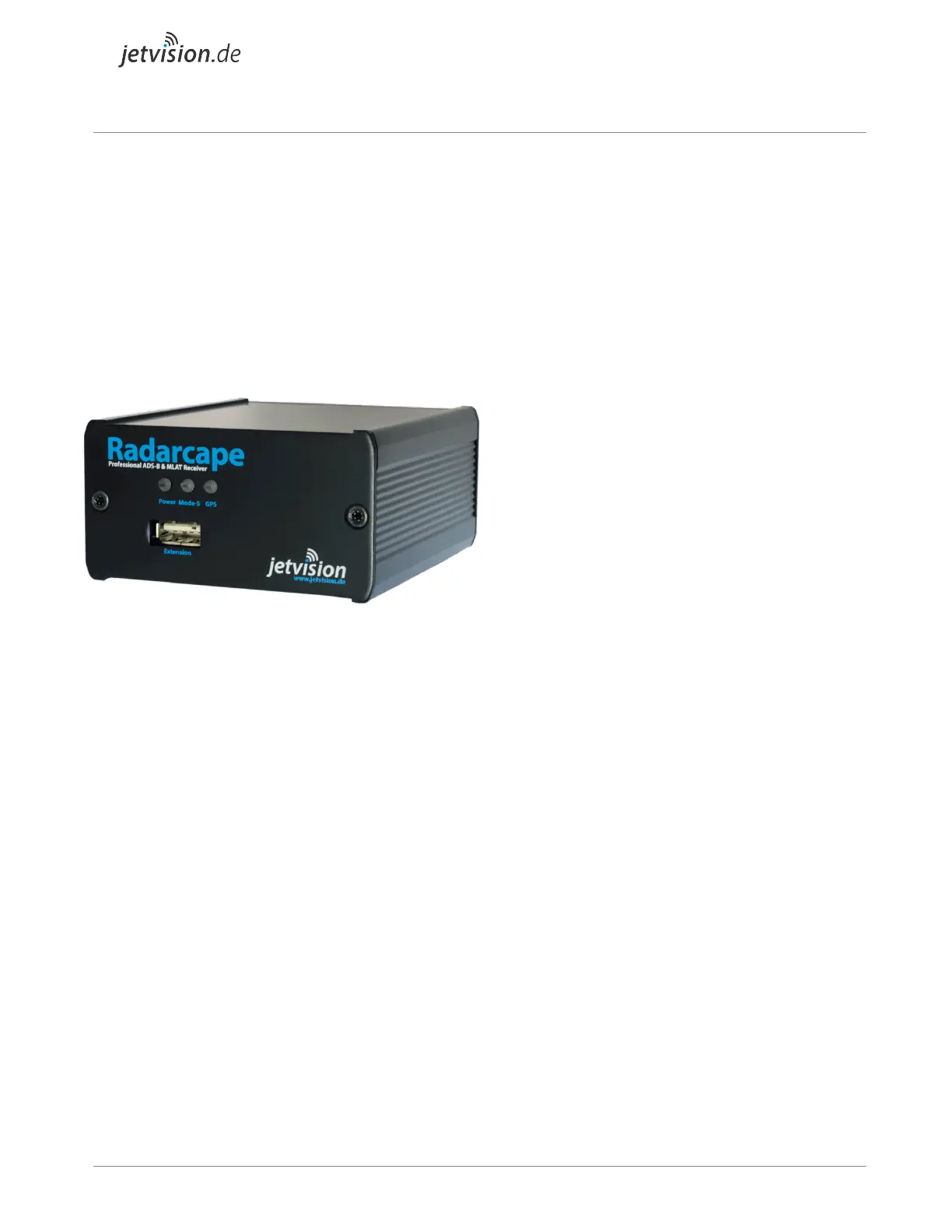

Radarcape Front Side
● USB Extension Slot
● Power LED
● Mode-S LED
● GPS LED
USB Extension Slot
This is a USB type A connector. It is available for memory sticks or user extensions. It is fully supported
by the internal Linux system.
Power LED
The power LED is green when power is applied to the backside connector.
Mode-S LED
The Mode-S LED is flashing red on each frame that becomes received from aircraft.
If no frames are received (e.g. no antenna connected), it flashes once per second in order to indicate
working state.
